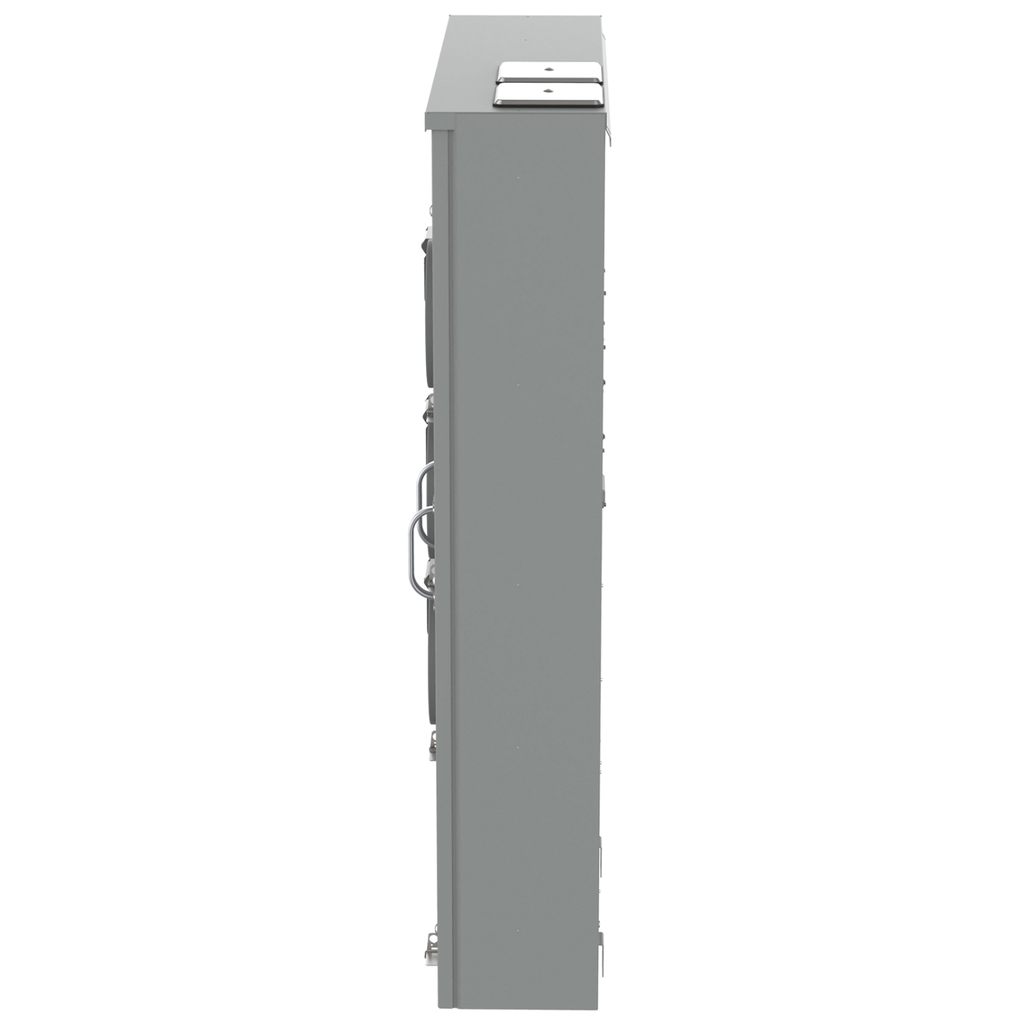

Square D MPH43200 400A Bus, 200A Max Breaker, 120/240VAC, 1P3W, 3-Socket, Horn Bypass, 5 Jaws, NEMA 3R Ringless Meter Center
Note: Installers Responsibility to Confirm Approved by Local Inspector

Manufacturer: Square-D / Schneider | Catalog # MPH43200 | Cooper Electric Part # 89782
$2,219.00/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
15 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure

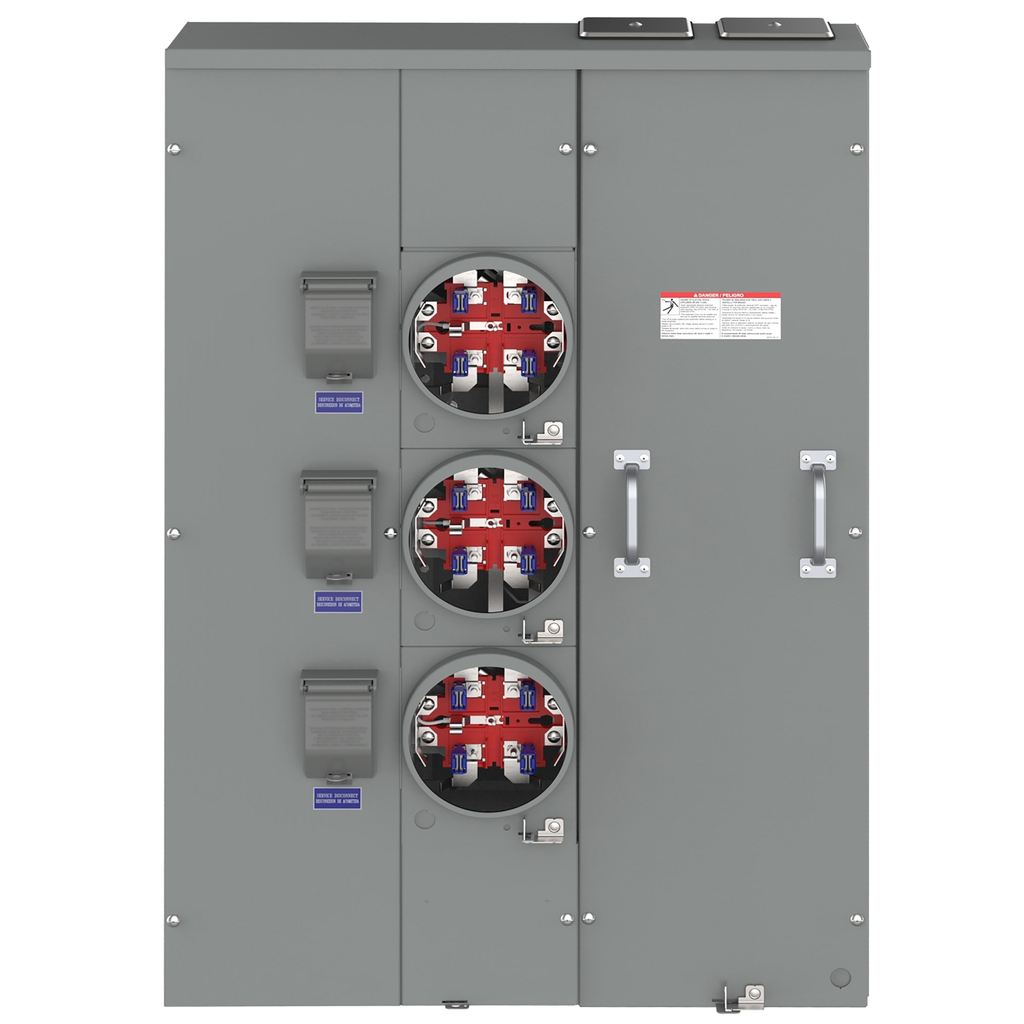

MPH Meter Pak meter centers offer a wide range of multimetering applications. MPH meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MPH meter center has a ringless socket with a horn bypass and a 5th jaw. The aluminum main bus ampacity is 400 A. This MPH meter pak meter center has 3 meter sockets. The maximum tenant main lugs amperage is 200 A with a 240 VAC single phase maximum. This MPH meter center with accept 1/0 AWG to 600 kcmil copper or aluminum wire. Meter center is UL listed.

Technical Information

Amperage
200 Amp,400 Amp,400 Amp
Bus Rating
400 A
Cable Entry
UG-OH
Conductor Size
1/0 AWG-600 kcmil
Enclosure
3R
Enclosure Material
Steel
Enclosure Rating
3R
Material
Aluminium: Busbar
NEMA Size
3R
Number of Jaws
5
Number of Phases
1 Phase
Type
Meter-Pak
Voltage
240 Volt
Wire Size
AWG 1/0...600 kcmil 1 aluminium;AWG 1/0...600 kcmil 1 copper

Manufacturer Information

Brand
Square D
Sub Brand
METER-PAK

General Product Info

12-Digit UPC
785901410515
GTiN
00785901410515
Product UPC
78590141051

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
