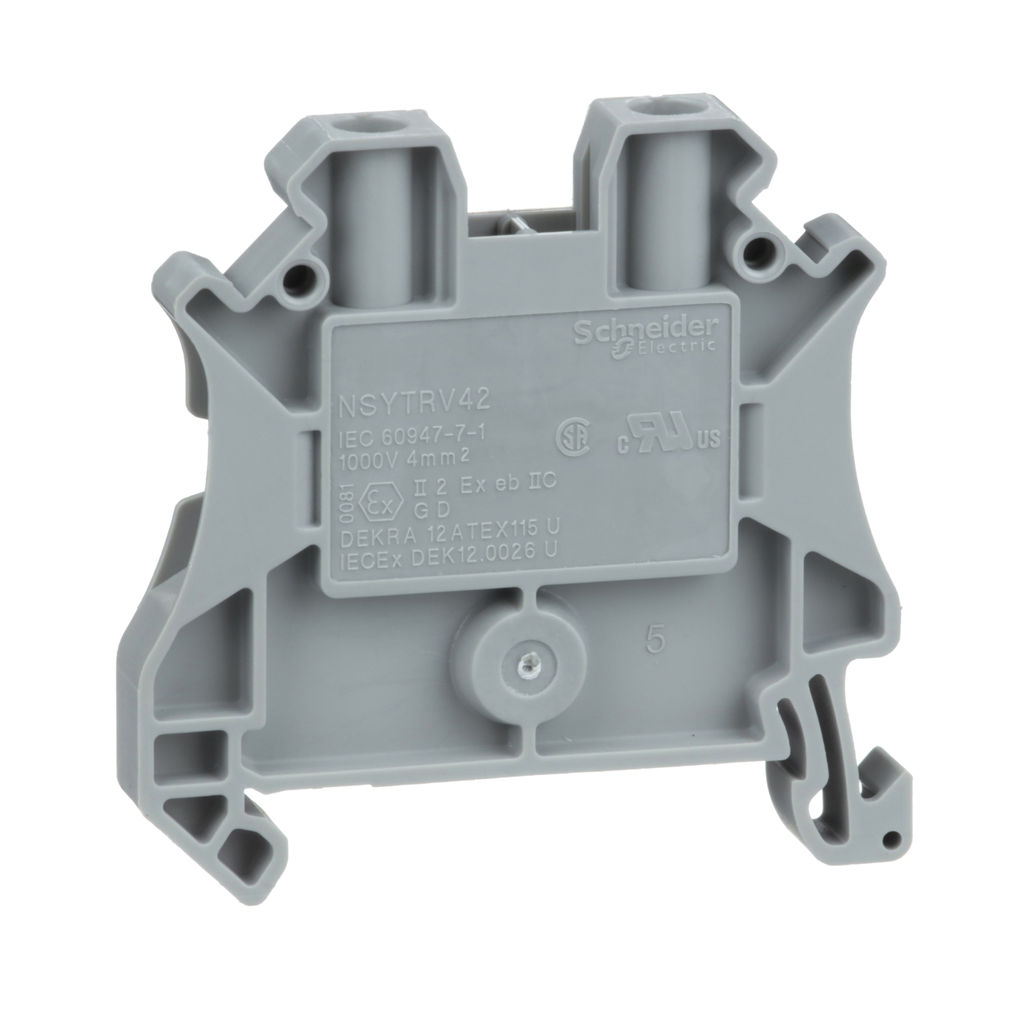

Image thumbnail 2
Image thumbnail 3
Image thumbnail 4

Email

Square D NSYTRV42 4 mm 2-Point Gray 26 to 10 AWG Solid/Stranded Copper Screw Terminal Block

Manufacturer: Square-D / Schneider | Catalog # NSYTRV42 | Cooper Electric Part # 897608

$1.92/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
472 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Linergy terminal blocks offer three terminal block technologies. The traditional screw connection, the spring clamp connection, and the new pushin connection. The industrial control, machine tool, packaging, material hadling, HVAC, textile, hoisting, water, marine, critiical power, elevator industries and many more use these terminal blocks for their connection requirements. These terminal blocks are designed for fast and easy installation. A wide variety of accessories are availble for these blocks to make your total installation easier. Linergy terminal blocks meet international standards, including UL Component Recognition and CSA certification. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 .C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

Technical Information

Amperage
32 Amp
Applications
LINERGY,SPACIAL ENCLOSURES,CONNECTION ACCESSORY,TERMINAL BLOCK
Conductor Size
0.01 in (4 mm)
Dielectric Strength
1000 V
Line Rated Current
30-30 A
Material
Chromium-nickel Steel,Copper Alloy,Polyamide
Mounting Type
Clip-On
Net Weight
9.4 g
Number of Terminations
2
Size
1.87 in
Strip Length
9 mm
TC Connection
1 X SCREW TERMINAL UPSTREAM M3)-1 X SCREW TERMINAL DOWNSTREAM M3)
Tool Type
Connection screwdriver;Disconnection screwdriver
Type
Spacial enclosures;Terminal block;Passthrough
Voltage
1000 Volt
Wire Size
0.01 in (4 mm)

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TRV;Linergy

General Product Info

12-Digit UPC
360648053180
Color
Gray
GTiN
03606480531897
Product UPC
78590194349
Weight
9.4 g

Dimensions

Height
1.87 in
Length
1.88 in
Warranty Length
18 mth
Width
0.24 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
ATEX,CSA,CURus,DNV,EAC,GL,IEC-Ex,LR,VDE
Country of Origin
Germany
Connections Terminals
  • 1 x screw terminal upstream M3)
  • 1 x screw terminal downstream M3)
  • 1 x screw terminal downs
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010587_3D-CAD&p_File_name=MCADPE0010587_3D-simplified.stp
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010587_3D-CAD&p_File_name=MCADPE0010587_2D-back.dwg
  • https://downlo
Range Compatibility
  • PrismaSeT G
  • PrismaSeT P
  • PrismaSet HD
  • PrismaSeT Pack 250
  • PanelSeT
  • Mureva
  • PrismaSeT XS
  • TeSys
Surface Resistance
  • 1000 G? IEC 60093
  • 1000 G? VDE 0303-T30
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0 kg CO2 eq.
  • 0.000727383
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.024550181
  • 0 kg CO2 eq.
Related Products
  • NSYTRV42AR
  • NSYTRV42BK
  • NSYTRV42BL
  • NSYTRAB610
  • NSYTRAB620
  • NSYTRAB630
  • NSYTRAB640
Material
  • polyamide 6/6: insulating case
  • copper alloy: connector and screw
  • copper alloy: commoning link
  • chromium-nickel steel: spring
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 0.1 kg CO2 eq.
  • 0.053922233
Dielectric Constant
  • 3.7 at 1 MHz
Creep Resistance
  • 500 CTI (> 400 kB) IEC 60093
  • 500 CTI (> 400 kB) VDE 0303-T30
Accessories
  • NSYTRAAB35
  • NSYTRAABV35
  • NSYTRAC22
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • System Integrator
Flame Retardance
  • V0 0.8 mm UL 94
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 6 kg CO2 eq.
  • 5.932823377
Line Rated Current
  • 32-32 A EN/IEC 60947-7-1
  • 30-30 A CSA
  • 30-30 A UL
Accessory Products
  • NSYTRAAB35
  • NSYTRAABV35
  • NSYTRAC22
Persona Type Ids
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SI
Dielectric Strength
  • 1000 V IEC 60243-1
Tool Type
  • connection screwdriver
  • disconnection screwdriver
Cable Cross Section
  • 0.14-6 mm², solid with cable end
  • 0.2-4 mm², flexible with cable end
  • 0.2-6 mm², solid without cable end
  • 0.2-6 mm², soli
Carbon Footprint Of The Distribution Phase A4
  • 0.001163839
  • 0 kg CO2 eq.
Color Options
  • NSYTRV42AR
  • NSYTRV42BK
  • NSYTRV42BL
Dielectric Loss
  • 0.01 at 1 MHz IEC 60250
  • 0.01 at 1 MHz VDE 0303-T4
Resistivity
  • 10000 M?.m IEC 60093
  • 10000 M?.m VDE 0303-T30
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Ambient Air Temperature For Operation
  • -40-130 °C IEC 60216-1
  • -40-130 °C VDE 0304-T21
UE Rated Operational Voltage
  • 1000 V EN/IEC 60947-7-1
  • 600 V CSA
  • 600 V UL
