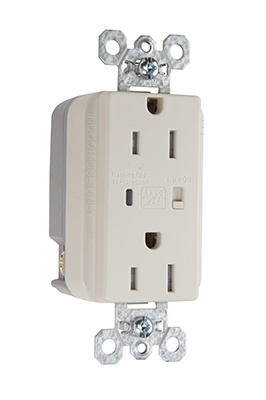

Product image for SPD RECP TR 15A/125V ALARM LA
Image thumbnail 0
Image thumbnail 1
Email

SPD RECP TR 15A/125V ALARM LA

Manufacturer: Pass & Seymour / Legrand | Catalog # TR5262LASP | Cooper Electric Part # 897479
$47.98/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual Product Brochure
Tamper-Resistant Extra Heavy-Duty Surge ProtectiveDuplexReceptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). Back and Side Wire, 15amp 125volt, White.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Amperage
15 Amp
Applications
Commercial,Residential
Connection Type
Back Wire,Side Wire
Duty Rating
Extra Heavy Duty
Frequency
60 Hz
Grade
Specification
Indicator
Audible Alarm,LED
Material
Thermoplastic
Number of Phases
1 Phase
Operating Temperature
-20degrees C to 55degrees C (-4 to 131degrees F
Size
.94" Depth x 1.75" Width x 3.82" Height
TC Connection
Side & Back Wire
Type
Duplex
Voltage
125 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007020465
Class
IG
Color
Light Almond
GTiN
00785007020465
Product UPC
78500702046
UNSPSC
39121406

Dimensions

Depth
1.4 Inch
Height
2-3/4 Inch
Width
1.7 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • Dual mechanical shutter system to help prevent insertion of foreign objects.
  • Auto-ground clip assures positive ground.
  • Backed-out tri-drive brass terminal screws for faster installation.
  • Internal screw-pressure-plate back and side wire capability.
  • Two back wire holes for additional wiring flexibility.
  • Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.
  • .032 inch thick brass triple-wipe power contacts.
  • Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
  • For covering patents, see www.legrand.us/patents.
Certifications
  • cULus Listed
