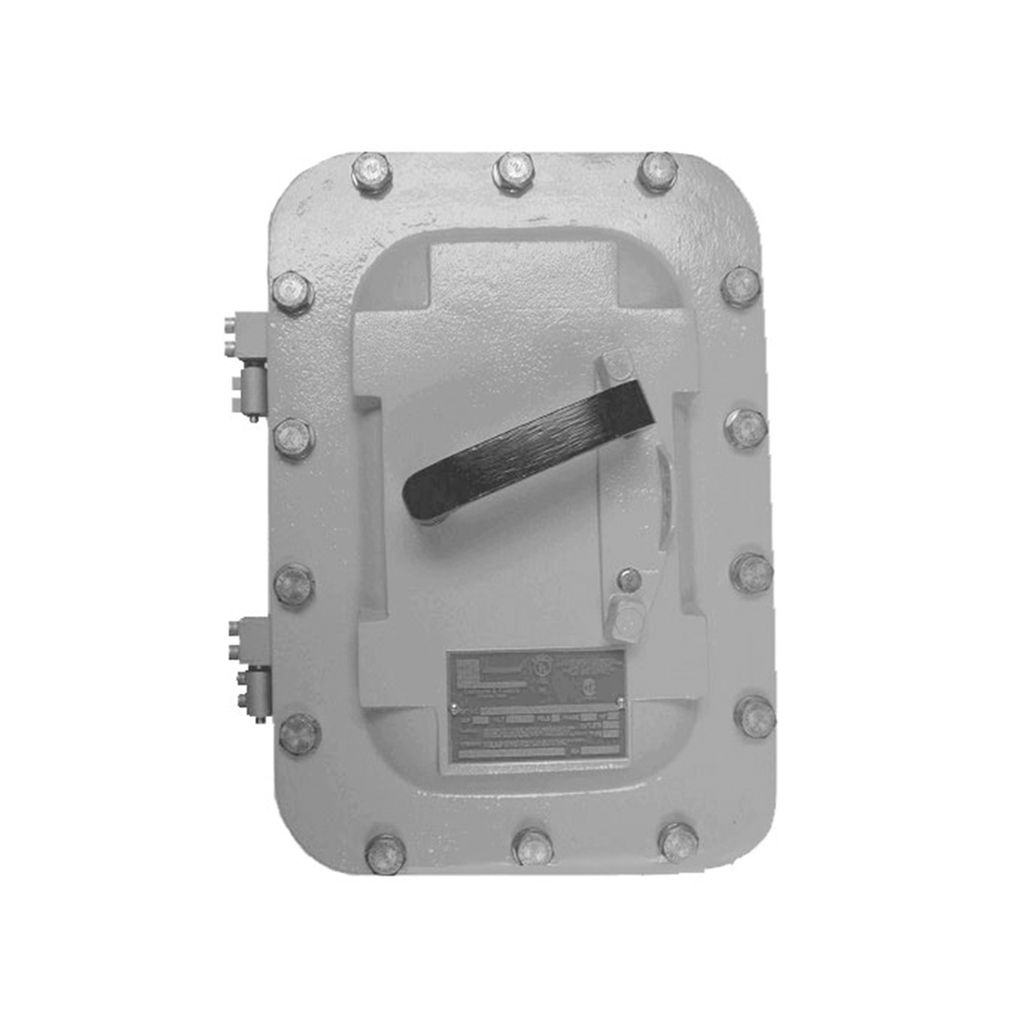

Product image for Appleton AEBB13610MCS MLD CASE SW ENCL
Email

Appleton AEBB13610MCS MLD CASE SW ENCL

Manufacturer: Appleton Electric | Catalog # AEBB13610MCS | Cooper Electric Part # 897233
$2,090.53/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Catalog Page
Appleton™ explosionproof, dust-ignitionproof, watertight AE Series bolted molded case switches and enclosures are used to disconnect circuits and for control of lighting and power circuits in areas where hazardous materials are handled or stored. They offer explosionproof protection in an enclosure with a wide range of options. This 3-pole 600 Vac, 125/250 Vdc molded case switch is available in eleven Amp options from 30 to 1200.

Technical Information

Material
Copperfree Aluminum,Neoprene,Stainless Steel

Manufacturer Information

Brand
Appleton

General Product Info

12-Digit UPC
781381193009
Finish
Epoxy Powder Coat,Gray
Product UPC
78138119300
Features
  • Explosionproof, dust-ignitionproof, watertight. Ideal for use in chemical and petrochemical plants, petroleum refineries, other process facilities and industrial applications
  • Precision machined flamepath between box and cover. O-ring gasket insures watertight integrity
  • Bolt on stainless steel slotted mounting feet
  • Stainless steel, captive Quad-Lead® cover bolts are standard (disengaged in 1- 1/2 turns)
  • Ground lug package and installation instructions for termination of ground wire enclosed
  • External operating handle with stops for limiting handle travel
  • Switch operators can be locked in the ON or OFF position (up to 3 padlocks)
  • External flange maximizes internal space
  • Standard outlets top and bottom for line and load wiring
  • Plugged 1/2 outlets top and bottom for breather and drain
  • Switches mounted on a galvanized steel removable pan
  • Molded case switches are designed to accept +40 °C (+104 °F) standard circuit breakers
