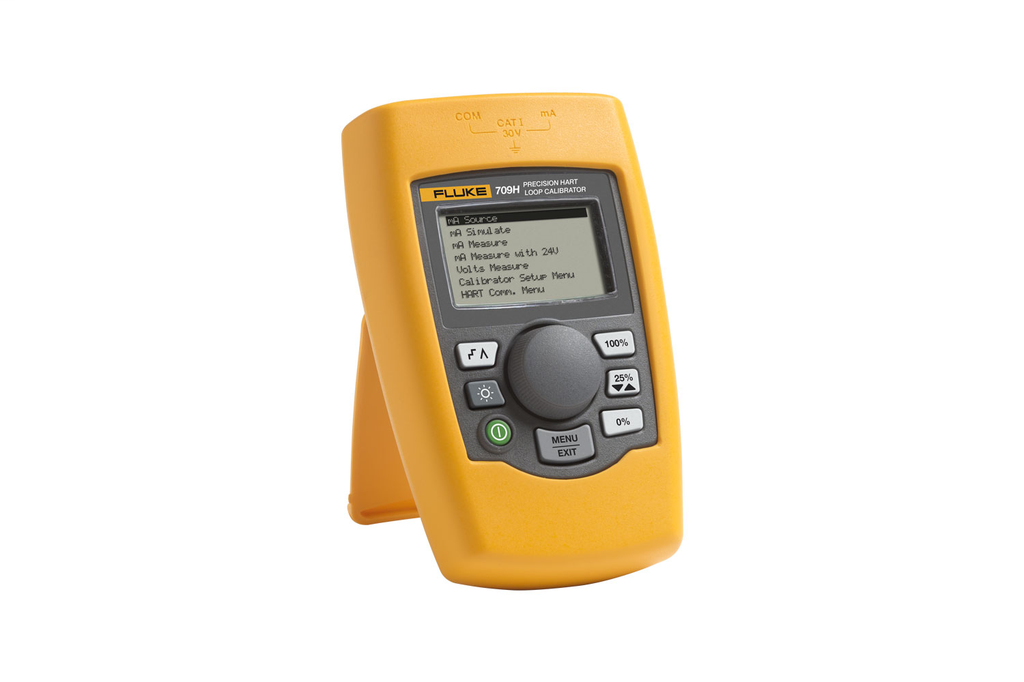

Product image for FLK FLUKE-709H LOOP CALIBRATOR W/HA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

FLK FLUKE-709H LOOP CALIBRATOR W/HA

Manufacturer: Fluke | Catalog # FLUKE-709H | Cooper Electric Part # 894377
$1,908.76/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
The Fluke 709H mA loop calibrator is designed to save time and produce high-quality results. The 709H offers HART communication and supports a select set of the HART universal and common practice commands. This makes the 709H unique as both an affordable,

Technical Information

Accuracy
0.01 %
Applications
Loop calibrator is designed to save time and produce high-quality results.
Display Type
LCD
Type
Precision Loops Calibrator

Manufacturer Information

Brand
Fluke Corporation

General Product Info

12-Digit UPC
095969643757
GTiN
00095969643757
Product UPC
09596964375
Weight
9.5 oz

Dimensions

Warranty Length
3 yr
Product Overview
  • The Fluke 709H mA loop calibrator is designed to save time and produce high-quality results. It includes HART communication and supports a select set of the HART universal and common practice commands. This makes the 709H unique as both an affordable, compact loop calibrator and powerful HART communication tool that offers:
  • In the communicator mode the user can read basic device information, perform diagnostic tests, and trim the calibration on most HART-enabled transmitters. In the past, this could only be done with a dedicated communicator, a high-end multifunction calibrator, or a laptop computer with HART modem. The Fluke 709H will allow virtually any technician to service and support HART devices.
  • And it's easy to use. The Fluke 709H is built around a user-friendly interface with a Quick-Set rotary encoder knob. This reduces the time it takes to measure or source voltage or current, and power up a loop. The protective holster easily fits into a technician's hand and the large backlit display is easy to read, even in dark, cramped worked areas.

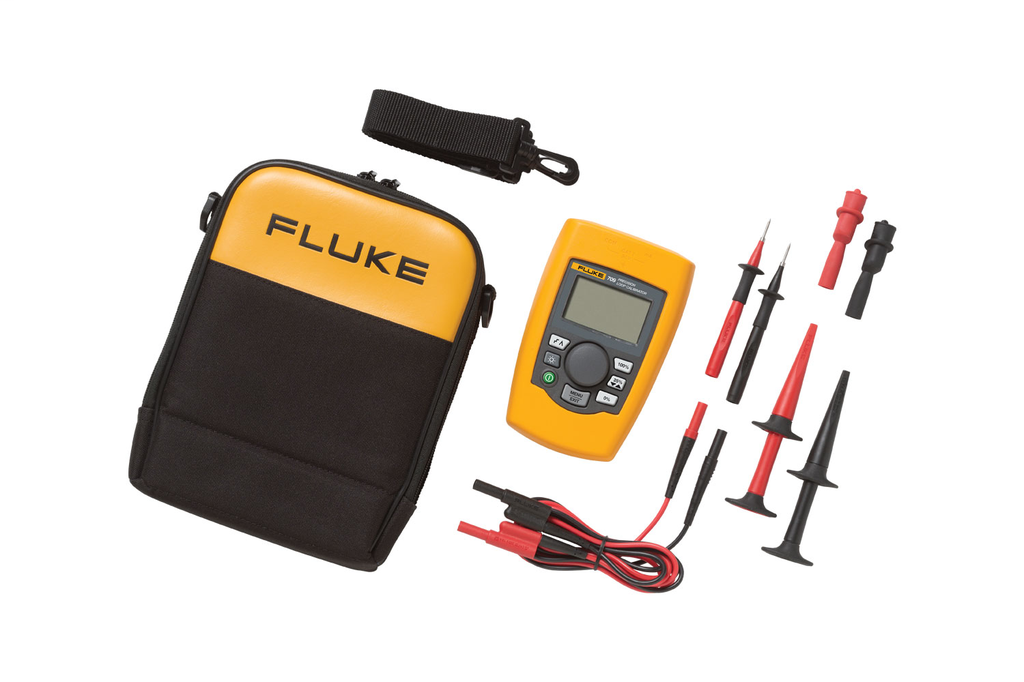

Includes
  • 754-8016 Alligator Clip Set
  • 75X-8014 Stackable Lead Set
  • TP220-4201 Test Probes
  • AC280-5001 SureGrip Hook Clips
  • Soft Case
  • Six AAA Batteries (Installed)
  • Product Manual CD-ROM
  • Quick Reference Guide
  • Safety Information
Other Useful Features
  • Fast transfer of calibration data:
  • The optional 709H/Track software/cable can document the parameters of all the HART transmitters in your plant, in either (.csv) or (.txt) format
  • Data logging or recording data on a particular transmitter for troubleshooting:
  • The data log tool offers a selectable capture interval from 1 to 60 seconds and a logging capacity of 9800 records or 99 individual sessions. Each data sample contains the 709H measurement, all four process variables, and the standard status conditions.
  • Provides resolution of 1 A on mA ranges and 1 mV on voltage ranges
  • Quickly transfers calibration data for documentation in either (.csv) or (.txt) format with optional 709H/Track software/cable
  • Offers selectable capture interval from 1 to 60 seconds and a logging capacity of 9800 records or 99 individual sessions.
  • Features small rugged design and runs on six standard AAA batteries
  • Requires only simple two wire connection for all measurements
  • Provides Auto Shutdown to conserve battery life (adjustable up to 30 minutes)
  • Offers variable step and ramp time in seconds
  • Provides adjustable span selection (0 to 20 mA or 4 to 20 mA)
  • Includes valve test functionality (simulate defined mA values with % keys)
Key Features
  • mA precision loop calibrator that communicates with and tests HART smart instruments
  • Features best-in-class accuracy at 0.01% reading
  • Provides intuitive user interface with Quick-Set knob for fast setup
  • Includes built in selectable 250 ? resistor for HART communication
  • Features 24 V DC loop power with mA measure mode (-25% to 125%)
