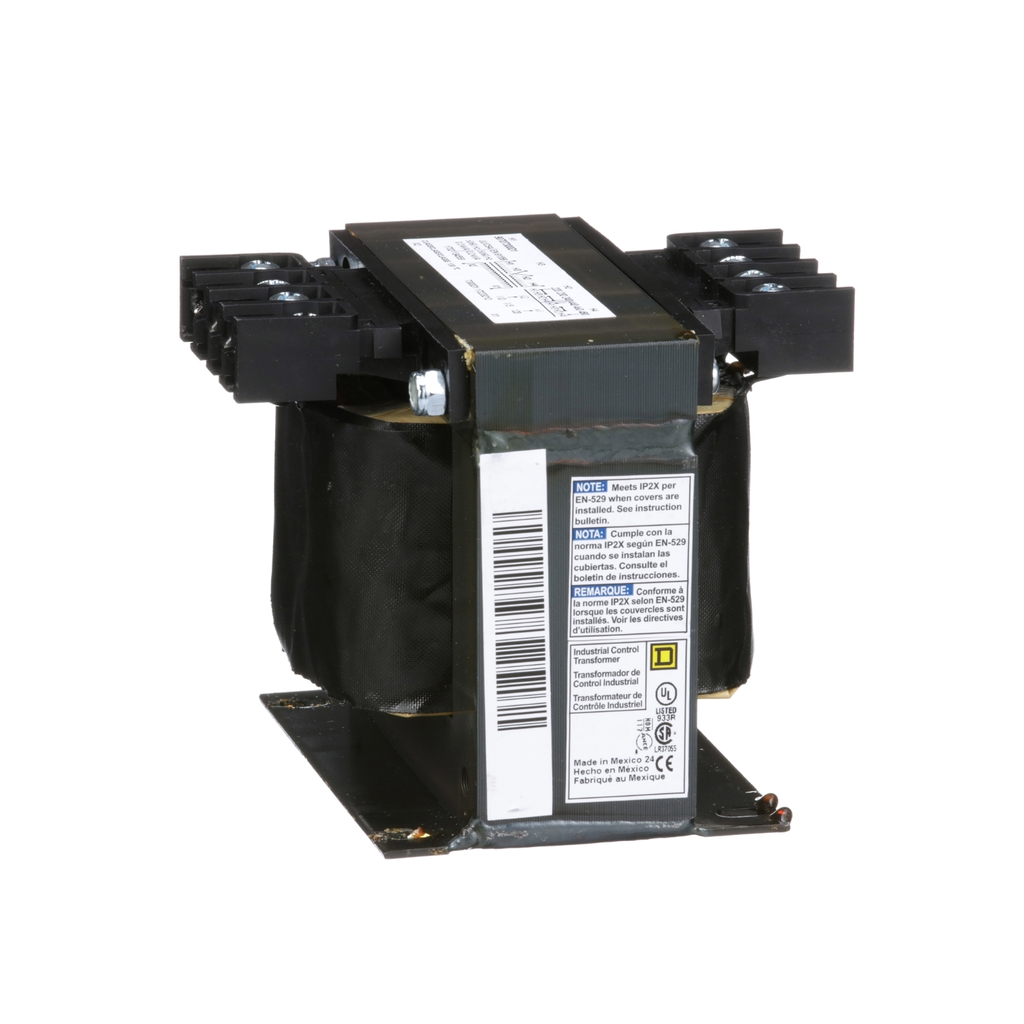

Square D 9070T300D1 300 VA 240 x 480 VAC Primary 120 VAC Secondary 1-Phase Control Transformer

Manufacturer: Square-D / Schneider | Catalog # 9070T300D1 | Cooper Electric Part # 89299
$383.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2
Control power transformers from Schneider-Electric set the industry standard for design innovation and performance. A variety of designs are available to meet the diverse needs of panel builders and machinery OEMs. The versatility of our control transformer line offers unparalleled options for design engineers. his industrial control transformer has a power rating of 300VA and is 1 phase. This transformer has a 240 x 480 V primary voltage and 120 V secondary voltage. This transformer complies to UL, CSA, CE standards. There is an 18 month warranty on this product.

Technical Information

Applications
FSC2
Enclosure
NOT RATED (OPEN DEVICE)
Material
Copper: Winding
Number of Phases
1 Phase
Power Rating
300 VA;300 VA UL;300 VA CSA;300 VA NOM;200 VA
Primary Voltage
110 V
Secondary Voltage
110 V
TC Connection
SCREW CLAMP
Temperature Rating
80 DEGREES C
Temperature Rise
80 degrees C
Type
Industrial Control Transformer
Voltage
110 Volt

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901904687
GTiN
00785901904687
Product UPC
78590190468

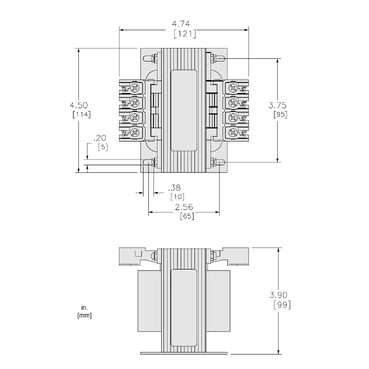

Dimensions

Depth
4.74 Inch
Height
3.84 Inch
Warranty Length
10 yr
Width
4.5 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA File LR37055 Guide 184-N-90,UL Listed File E61239
Country of Origin
Mexico
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=5895&p_File_name=5895.dwg
  • https://download.schneider-electric.com/files?p_Doc_Ref=5895&p_File_name=5895.dxf

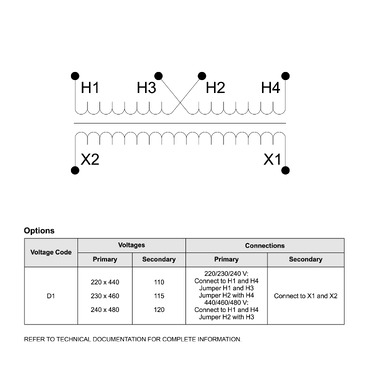

Primary Voltage
  • 240 x 480 V 120 V
  • 230 x 460 V 115 V
  • 220 x 440 V 110 V
Prop 65
  • WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Material
  • copper: winding
Accessories
  • 9070FSC2
  • 9070FP1
  • 9070FB3B
  • 9070FB2B
Accessory Products
  • 9070FSC2
  • 9070FP1
  • 9070FB3B
  • 9070FB2B
Rated Power In VA
  • 300 VA UL
  • 300 VA CSA
  • 300 VA NOM
  • 200 VA CE
