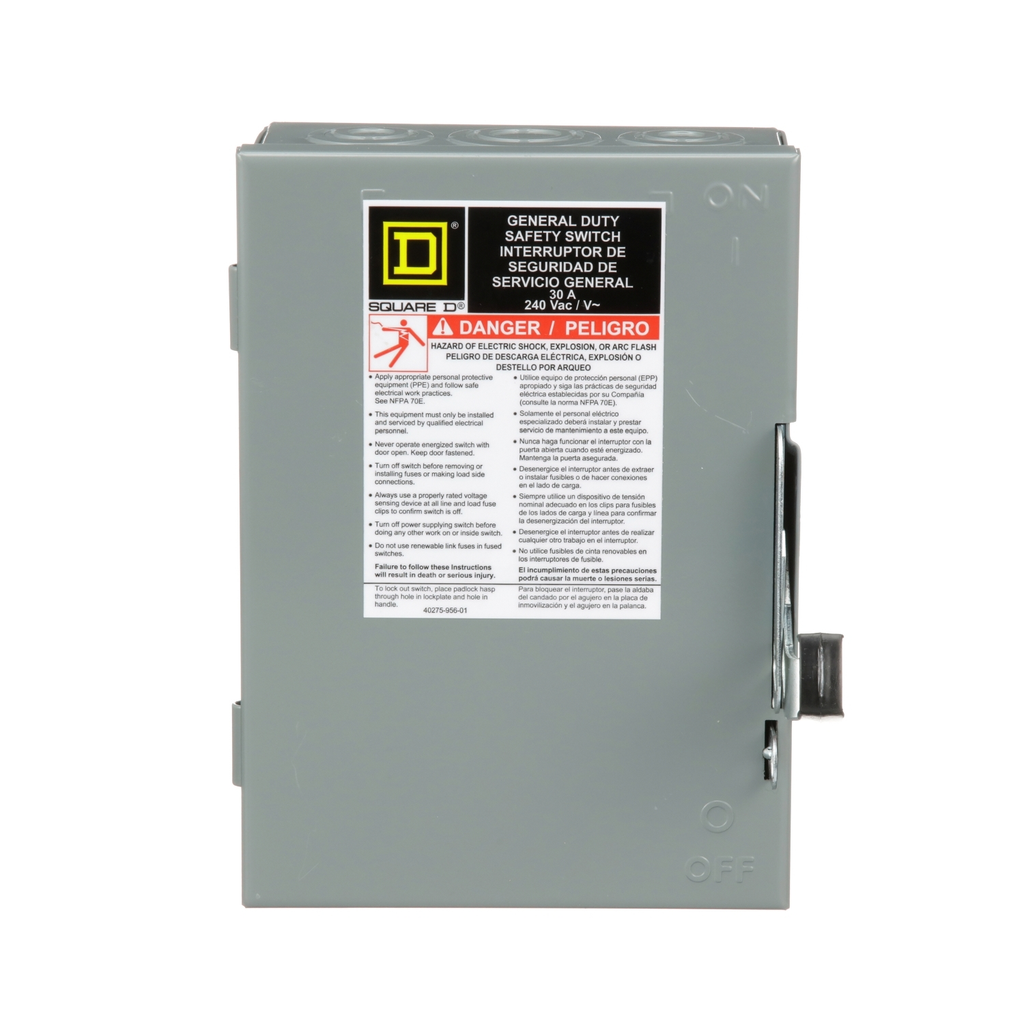

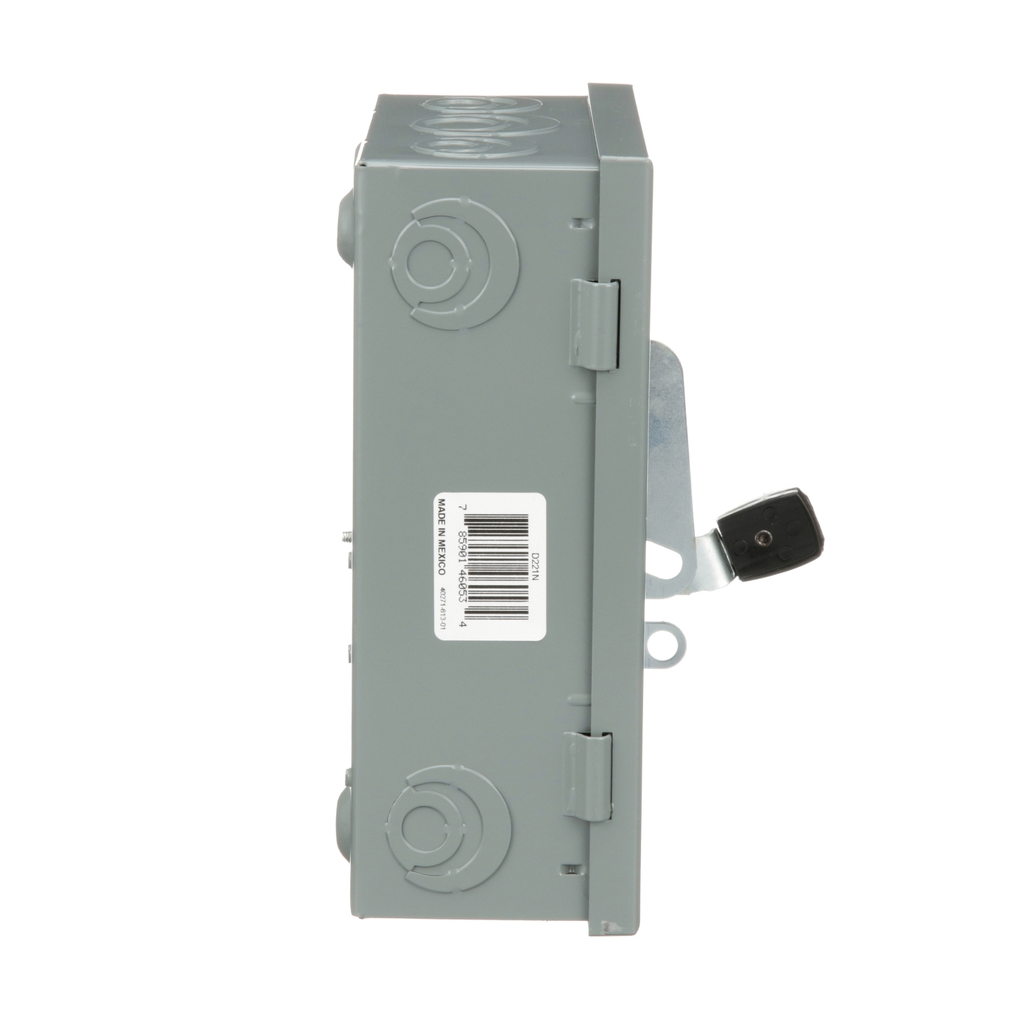

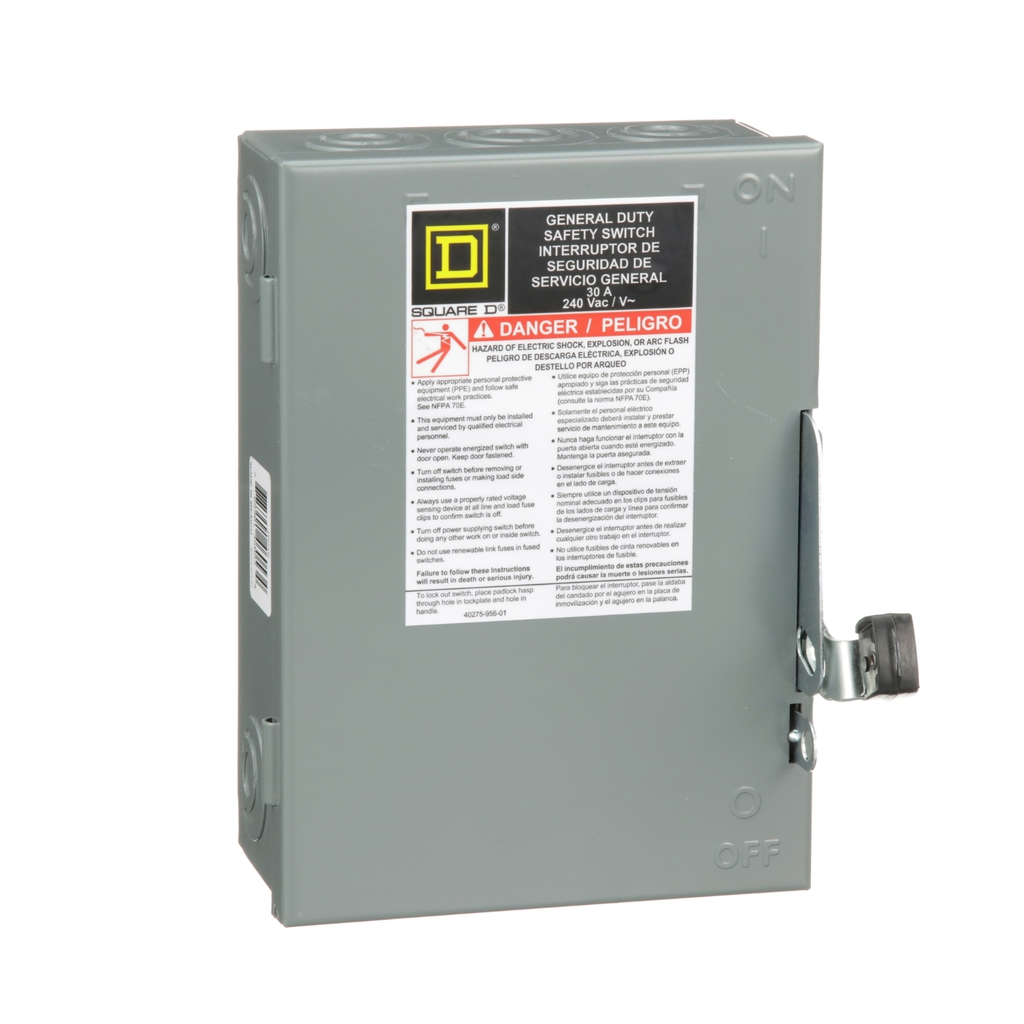

Square D D221N Safety Switch Fusible 30A 2P NEMA-1 240V , Single Throw

Manufacturer: Square-D / Schneider | Catalog # D221N | Cooper Electric Part # 89265
$122.00/ea
ea
Log in or register to view your price, purchase history, and more!
Fusible Non-Fusible
2P 3P
Type 1 Indoor Type 3R Rainproof
2 available

For Pick Up

at Ocean Opens Monday 7:00am ET
34 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 30A with a NEMA 1 degree of protection. This fusible disconnect switch comes with a neutral (factory installed). This general duty switch is a 2-pole, 240VAC has a short circuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 14 AWG 6, copper & AWG 12 AWG 6, aluminum. This switch is certified to UL standards. Dimensions forThis product are 9.25 in (H), 7.25 in (W), 3.63 in (D). General Duty safety switches come with an 18 months warranty

Technical Information

Action
SINGLE THROW
Amperage
30 Amp
Applications
GENERAL DUTY
Conductor Size
12-6 AWG (AL)/14-6 AWG (CU)
Current
30 Amp
Disconnect Type
Fusible disconnect switch
Duty Rating
General duty
Enclosure
1
Enclosure Material
Steel
Enclosure Rating
1
Fuse Type
H,K,R
Line Rated Current
30 A
Mounting Type
Surface
NEMA Size
1
Net Weight
7.7 kg
Number of Phases
1 Phase
Number of Poles
2 Pole
Short Circuit Current
100 kA
Short Circuit Current Ratng
100 kA
Size
3.63 IN,7.25 IN,9.25 IN
TC Connection
AWG 14...AWG 6 COPPER-AWG 12...AWG 6 ALUMINIUM,LUGS
Type
SINGLE THROW SAFETY SWITCH,FUSIBLE DISCONNECT SWITCH
Voltage
240 Volt
Wire Size
AWG 14...AWG 6 copper;AWG 12...AWG 6 aluminium

Manufacturer Information

Brand
Square D
Sub Brand
GENERAL DUTY

General Product Info

12-Digit UPC
785901460534
Environmental Conditions
GENERAL PURPOSE (INDOOR)
GTiN
00785901460534
Product UPC
78590146053
Weight
7.7 kg

Dimensions

Depth
3.63 Inch
Height
9-1/4 Inch
Warranty Length
18 mth
Width
7.25 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL Listed File E2875
Country of Origin
Mexico
Motor Power Hp
  • 1.5 hp at 240 V AC 60 Hz for 1 phase motors
  • 3 hp at 240 V AC 60 Hz for 3 phase
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.12142952528233557
  • 0.1 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 3 kg CO2 eq.
  • 2.824941989565731
Ue Rated Operational Voltage
  • 240 V AC
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 12 kg CO2 eq.
  • 12.3540768999478
Accessories
  • DRK30
  • PK3GTA1
Short Circuit Current
  • 100 kA maximum depending on fuse H, K or R
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • Contractor
  • OEM - Control Panelbuilder
  • Panel Builder
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 9 kg CO2 eq.
  • 8.942704591166205
Accessory Products
  • DRK30
  • PK3GTA1
Persona Type Ids
  • LC
  • OM8
  • PB
Carbon Footprint Of The Distribution Phase A4
  • 0
  • 0 kg CO2 eq.
Tightening Torque
  • 30-30 lbf.in 2.08-13.3 mm² (AWG 14...AWG 6)
AWG Gauge
  • AWG 14...AWG 6 copper
  • AWG 12...AWG 6 aluminium
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
