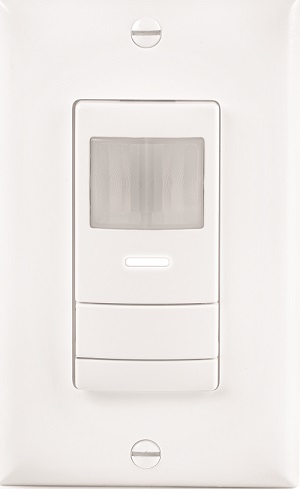

Lithonia Lighting WSX WH 120/277 VAC 1/4 Hp White 1-Gang Wall Switch Occupancy Sensor

Manufacturer: Juno Lighting | Catalog # WSX-WH | Cooper Electric Part # 891516
$105.68/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Friday 8:00am ET
95 available

For Delivery

Order by Thursday 5:00pm ET for delivery Friday
Not in local stock *
Check another branch
Product Spec Sheet
Wall switch decorator sensor with convertible neutral/no neutral wiring, White, SKU - 216RF4

Technical Information

Applications
For Commercial and Residential Lighting Control Applications, Private Offices, Private Rest Rooms, Closets, Copy Rooms, or Any other Small Enclosed Space
Dimmable?
Yes
Lamp Life
87,600 hr
Lens Material
Plastic
Material
Plastic
Mounting Type
1-Gang Switch Box, Wall
Power Source
Hardwired
Sensing Range
180 degrees
Sensor Type
Passive Infrared
Temperature Rating
0 - 60 degrees C
Type
Single Relay, Auto On (Default)
Voltage
120-277 VAC

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
753573767527
Color
White
Environment
Indoor
Environmental Conditions
Indoor
Finish
Gloss
GTiN
00753573767527
Product UPC
75357376752
Shape
Rectangle
Used With
LEDs, Electronic and Magnetic Ballasts, CFLs, and Incandescents
Weight
0.32 lb

Dimensions

Height
2.74 Inch
Length
1.63 Inch
Warranty Length
5 yr
Width
1.680 in

Certifications and Compliance

Country of Origin
Mexico,Mexico
Applications
  • Education
  • Government
  • Healthcare
  • Hospitality
  • House of Worship
  • Manufacturing
  • Offices & Banks
  • Retail
  • Sports and Recreation
  • Warehouses
Features
  • WIRING: Easy to install while helping to aid in energy code compliance, the WSX has a patented wiring method that enables them to function with or without a neutral connection
  • MOTION DETECTION: Small motion detection up to 20 feet (6.10 m)
  • GROUNDING: Self-grounding mounting strap
  • RATINGS: Energy Management Equipment, UL916 (E167435); RoHS compliant
  • WIRING: Line power and load wires are interchangeable, making it impossible to wire backwards
  • COMPATIBILITY: Compatible with LEDs, electronic and magnetic ballasts, CFLs, and incandescents
  • CONNECTIONS: Device accommodates powering over ground or neutral connection
  • CONSTRUCTION: Vandal resistant lens
  • WARRANTY: 5-Year Limited Warranty

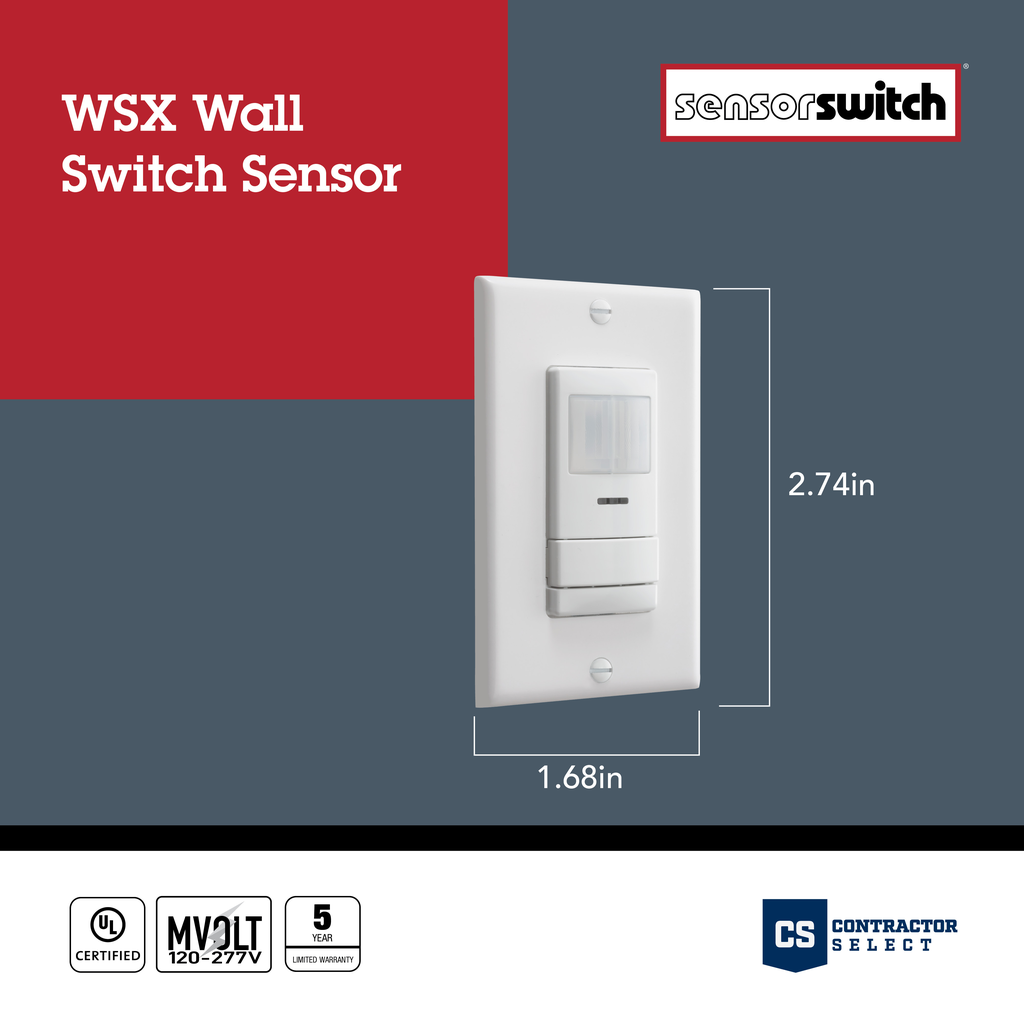

  • DIMENSIONS: 2.74 in. H x 1.68 in. W x 1.63 in. D (70mm x 43mm x 41mm) - does not include ground strap
Standards
  • cUL
  • UL
