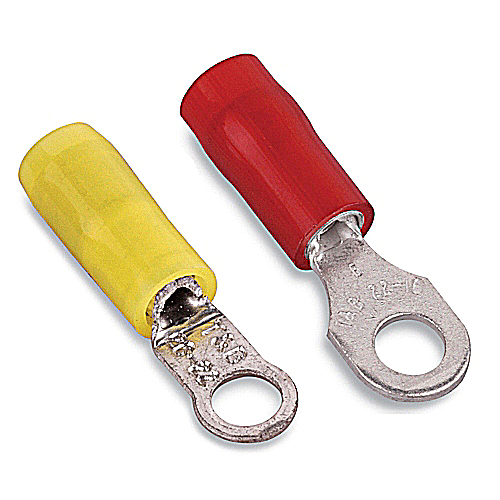

Product image for Thomas & Betts RA18-6 Nylon-Insulated Ring Terminal - #22-16, #6bolt
Image thumbnail 0
Image thumbnail 1
Email

Thomas & Betts RA18-6 Nylon-Insulated Ring Terminal - #22-16, #6bolt

Manufacturer: ABB | Thomas & Betts | Catalog # RA18-6 | Cooper Electric Part # 89131
$273.40/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Nylon Insulated Ring Terminal, Length .86 Inches, Width .26 Inches, Maximum Insulation .136, Bolt Hole #6, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated

Technical Information

Conductor Size
22-16 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Stud Size
#6
Temperature Rating
105 degrees C
Terminal Type
RA
Type
Long Sleeve
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210803852
Color
Red
Finish
Electro Tin Plated
GTiN
05414363131915
Product UPC
78621080385

Dimensions

Thickness
.03 in
Certifications
  • CSA
  • UL
Features
  • Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.
