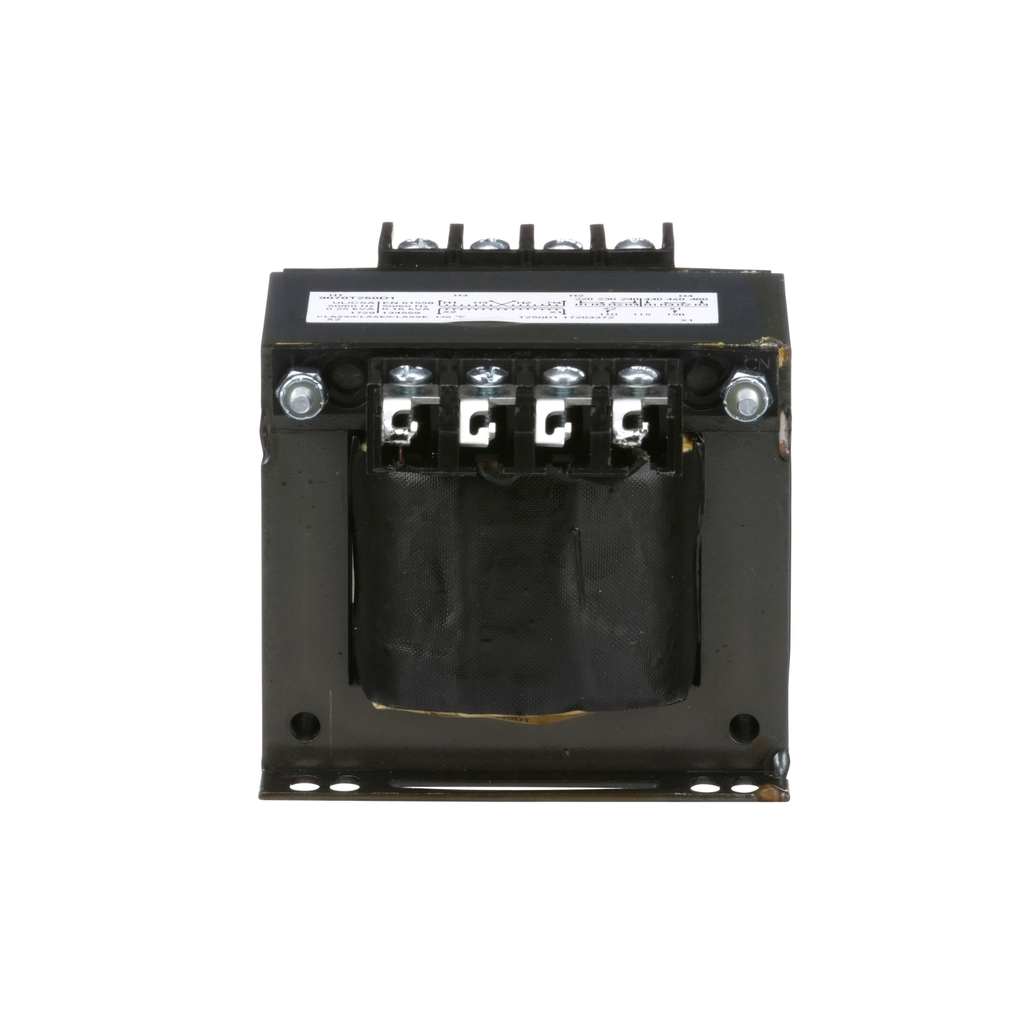

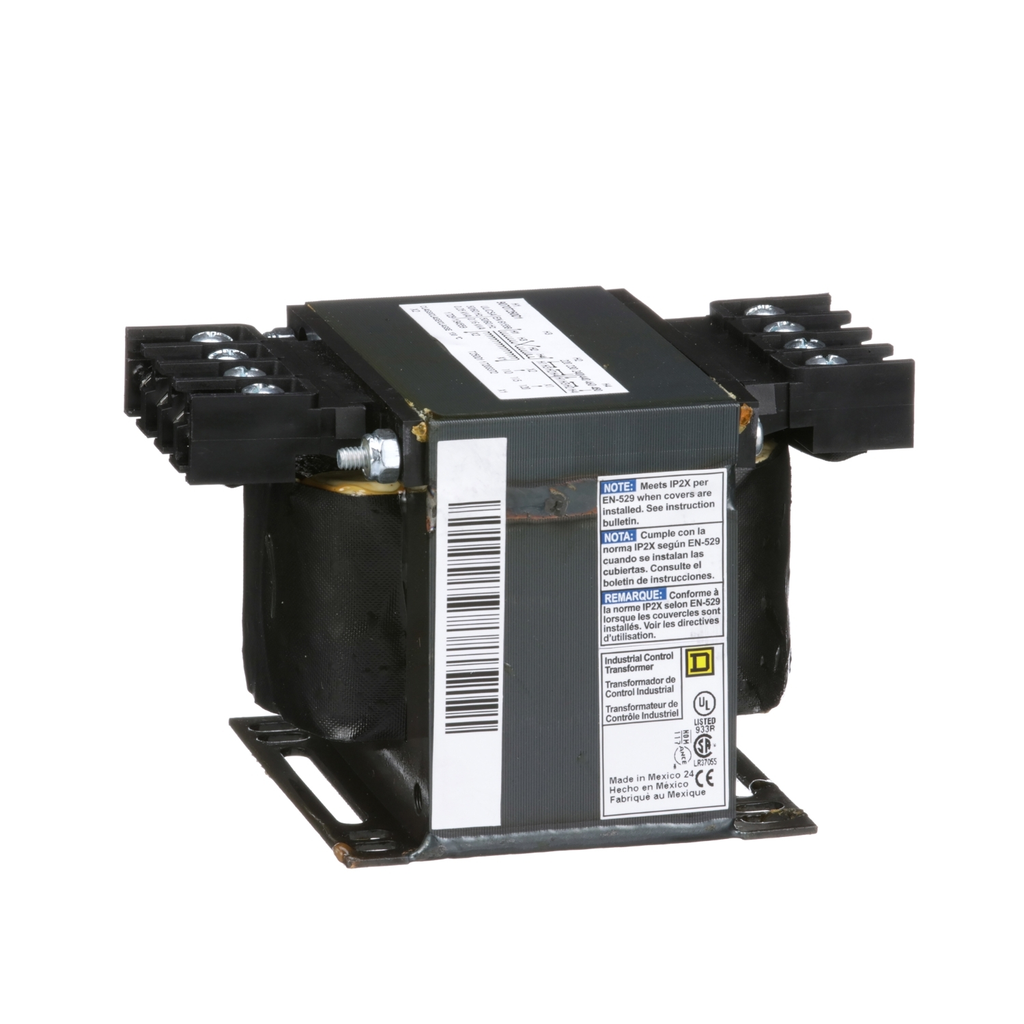

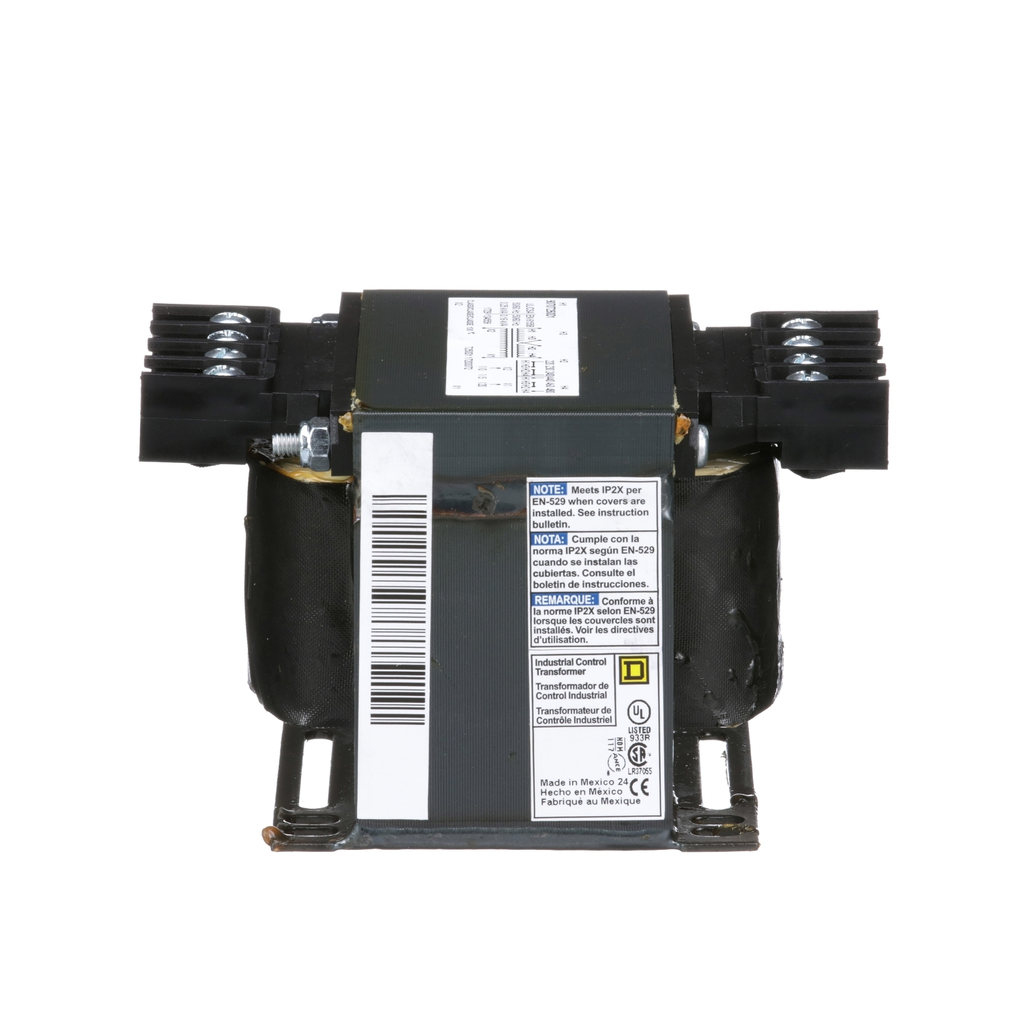

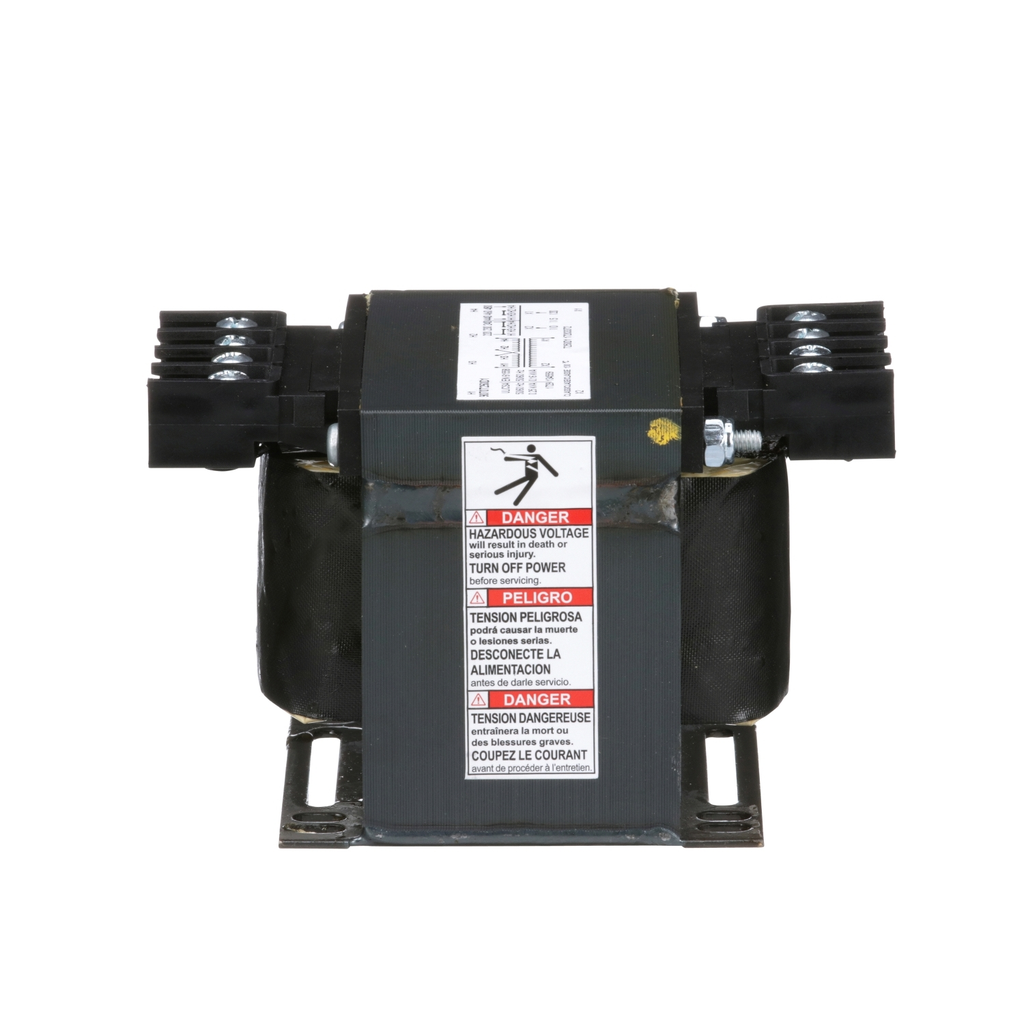

Square D 9070T250D1 250 VA 240 x 480 VAC Primary 120 VAC Secondary 1-Phase Control Transformer

Manufacturer: Square-D / Schneider | Catalog # 9070T250D1 | Cooper Electric Part # 89053
$287.00/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
2 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2
The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They offer field installed accessories to expand the applicational needs for the product. These transformers use low impedance windings to handle higher inrush current and still regulate voltage. This industrial control transformer has a power rating of 250VA and is 1 phase. (The unit also supports 230x460VAC to 115VAC and 220x440VAC to 110VAC.) It is compliant with UL and CSA standards verified by third party UL carrying the cUL, UL labels, and self certified to the EN standards carrying a CE mark.

Technical Information

Applications
FSC2
Enclosure
NOT RATED (OPEN DEVICE)
Material
Copper: Winding
Number of Phases
1 Phase
Power Rating
250 VA;250 VA UL;250 VA CSA;250 VA NOM;160 VA
Primary Voltage
110 V
Secondary Voltage
110 V
TC Connection
SCREW CLAMP
Temperature Rating
80 DEGREES C
Temperature Rise
80 degrees C
Type
Industrial Control Transformer
Voltage
110 Volt

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901904670
GTiN
00785901904670
Product UPC
78590190467

Dimensions

Depth
5.3 Inch
Height
3.2 Inch
Warranty Length
10 yr
Width
3.75 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA File LR37055 Guide 184-N-90,UL Listed File E61239
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 9070FSC2
  • 9070FP1
  • 9070FB3B
  • 9070FB2B
  • 9070SF41B
  • 9070SF25B
  • 9070FB1B
