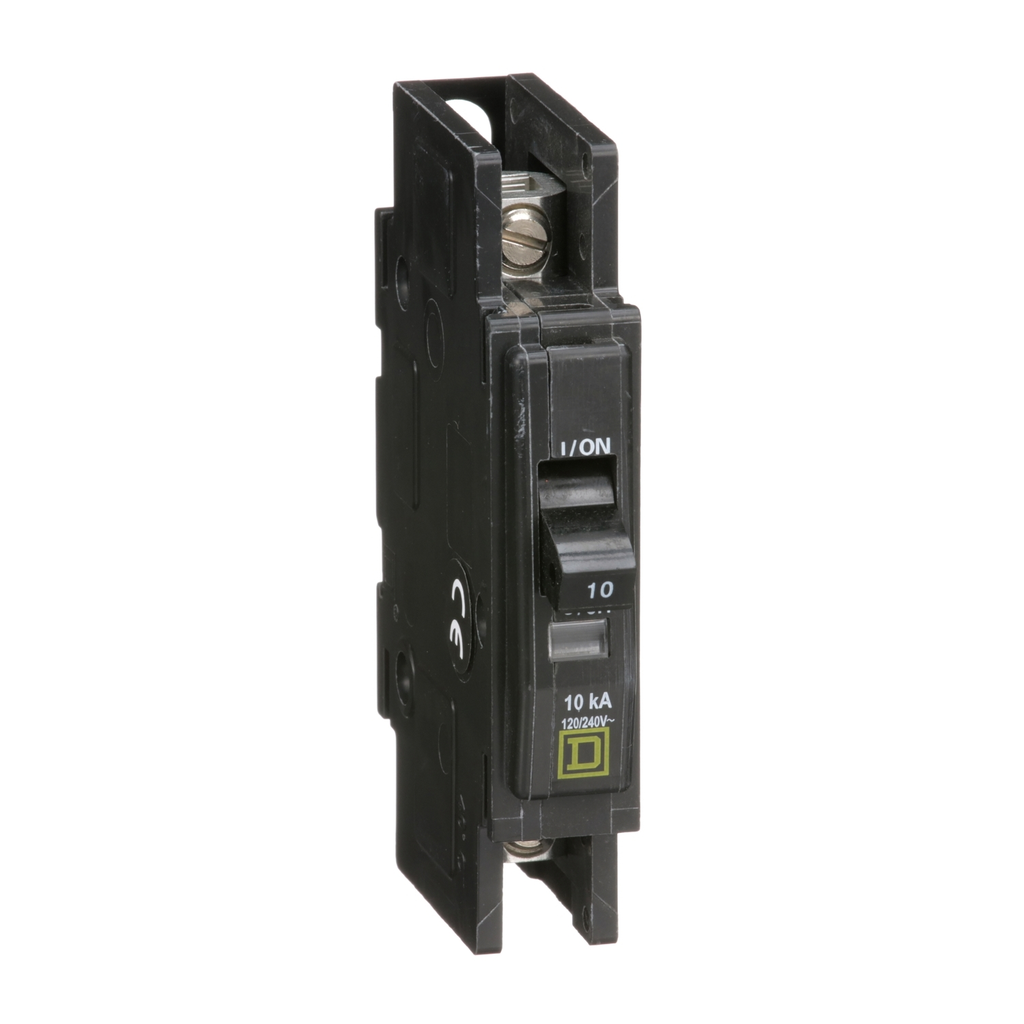

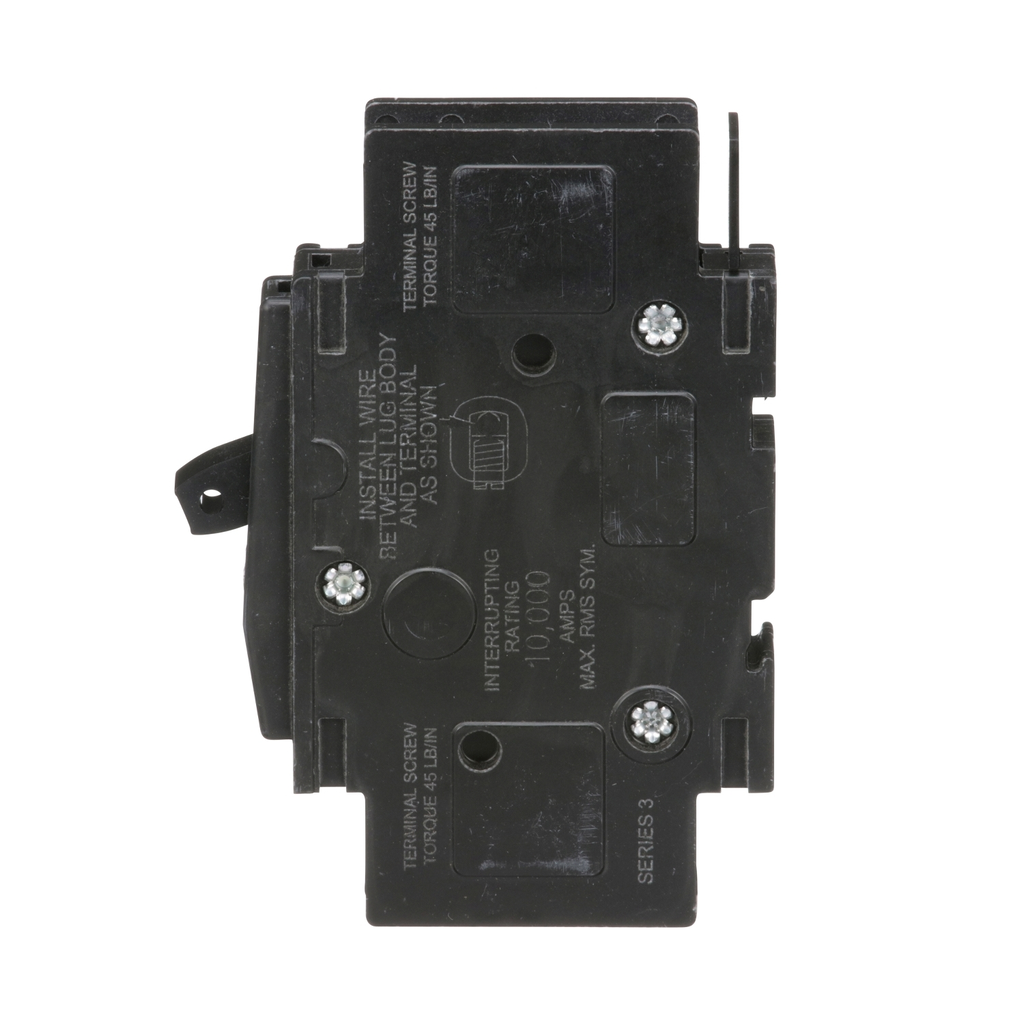

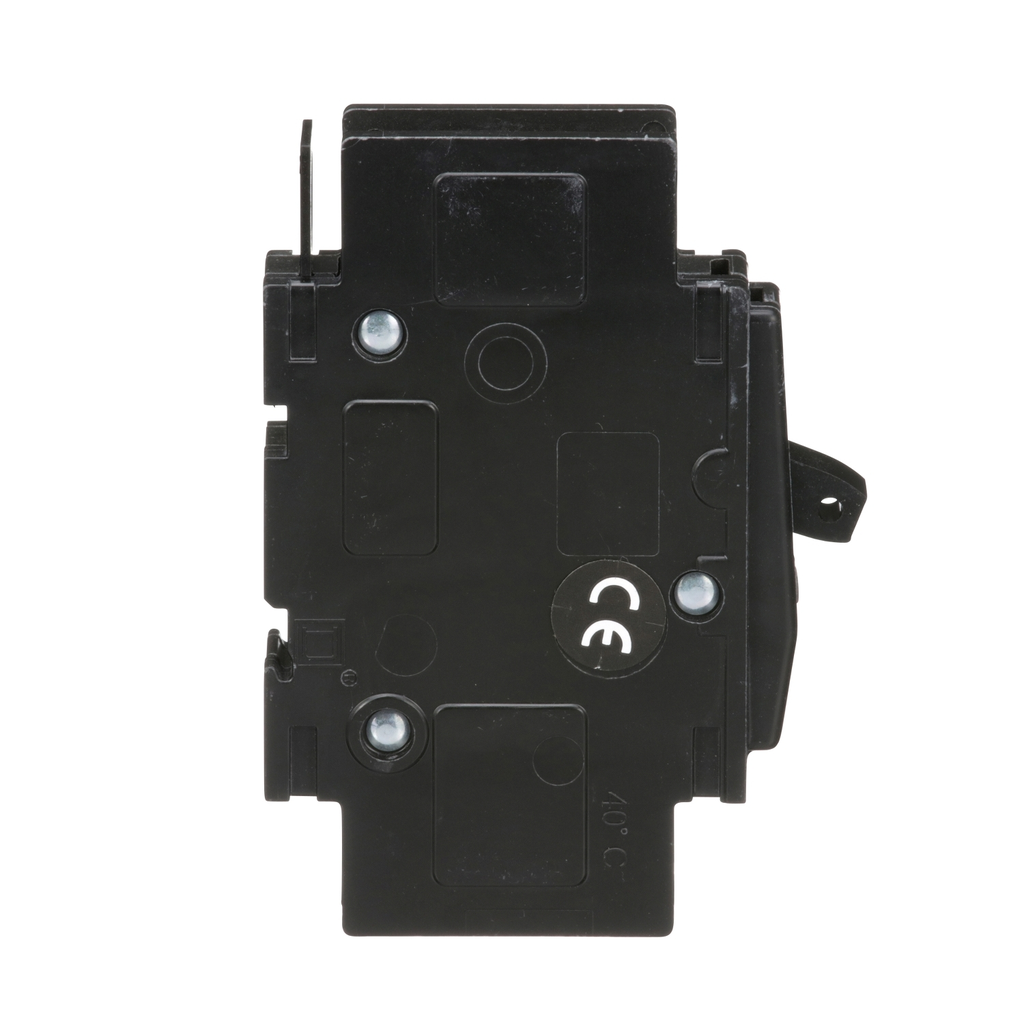

Square D QOU110 Miniature Circuit Breaker 10A 120/240V

Manufacturer: Square-D / Schneider | Catalog # QOU110 | Cooper Electric Part # 88972
$40.20 /ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean opens friday 7:00am et
10 available

For Delivery

Order by 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Brochure Product Catalog Page Product Spec Sheet
QO™ and QOU Miniature Circuit Breakers, QOU110, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.

Technical Information

Amperage
10 Amp
Applications
QOU
Circuit Breaker Type
Standard
Interrupt Rating
10 kAIC
Line Rated Current
10 A
Mounting Type
Unit Mount
Number of Poles
1 Pole
Short Circuit Current
10 kA
TC Connection
LINE: BOX LUG - LOAD: BOX LUG #14-2 AWG(AL/CU)
Type
Miniature circuit-breaker
Voltage
120 Volt

Manufacturer Information

Brand
Square D
Sub Brand
QOU

General Product Info

12-Digit UPC
785901205678
GTiN
00785901205678
Product UPC
78590120567

Dimensions

Depth
2.95 Inch
Height
4.05 Inch
Length
2.95 Inch
Warranty Length
18 mth
Width
0.75 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,IEC,UL Listed
Country of Origin
Mexico
Features
  • QO MCBs are designed to sheild electronics from short-circuits and overcurrent
  • Provides instaneous and time-delayed overcurrent protection
  • Idle application for OEMs due to their high performances and multiple mounting options
  • Product has been verified by UL and CSA to adhere to the electrical specs stated on the data sheet
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
