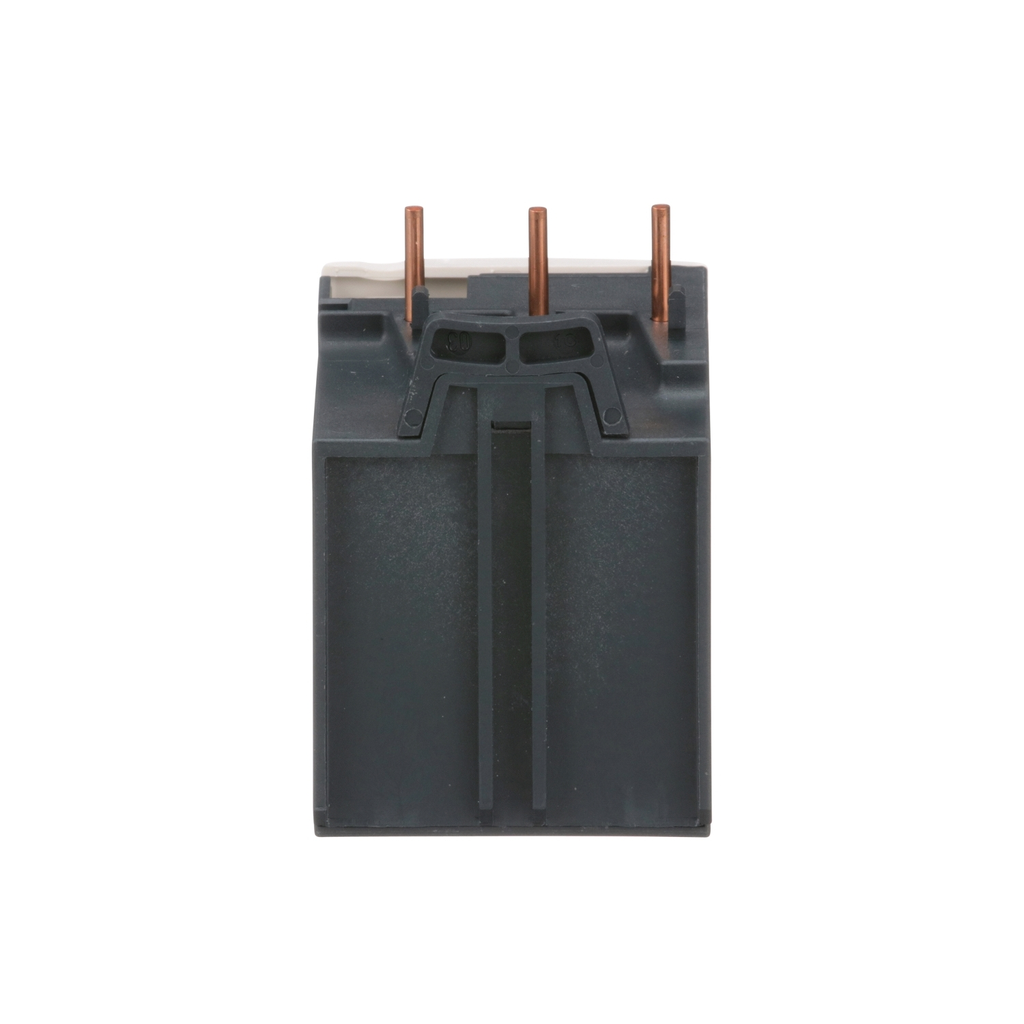

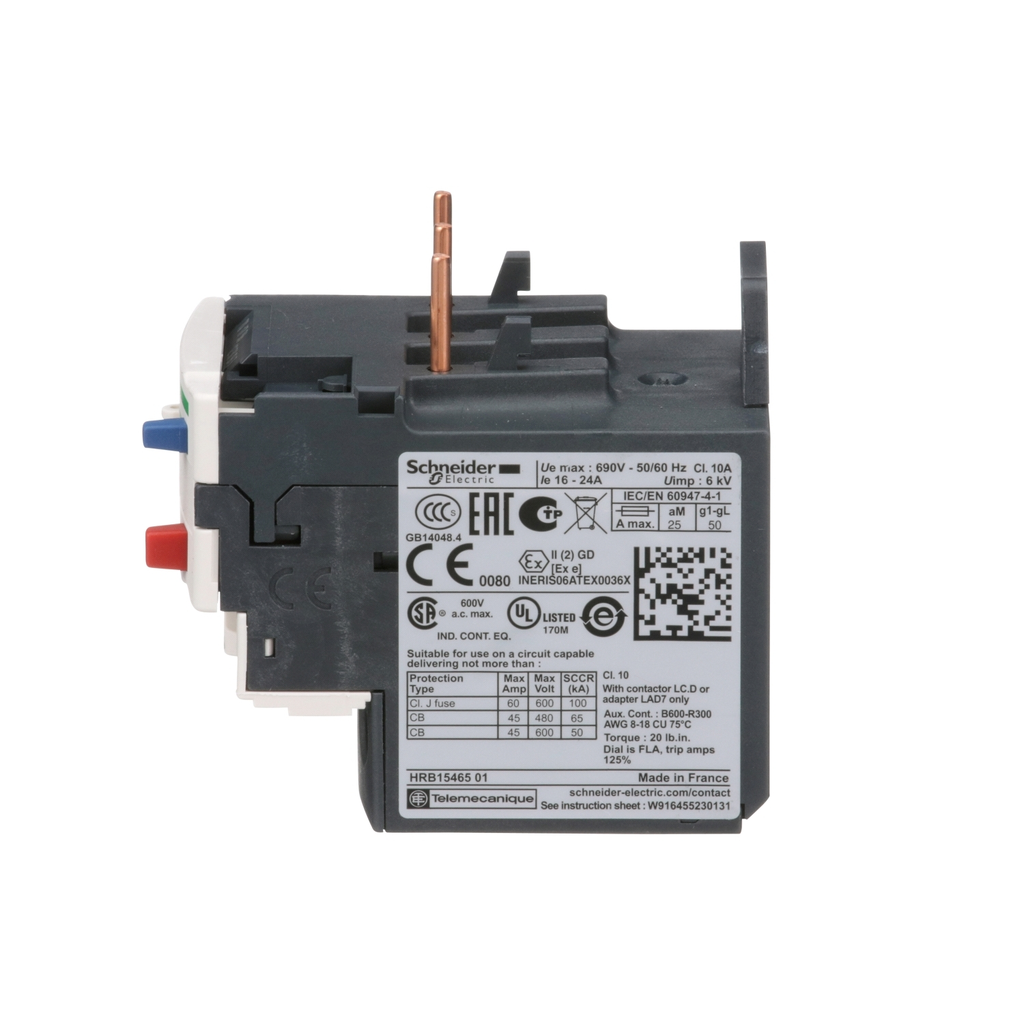

Square D LRD22 600 Volt 24 Amp 3-Pole Bi-Metallic Screw Clamp Terminal Thermal Overload Relay

Manufacturer: Square-D / Schneider | Catalog # LRD22 | Cooper Electric Part # 88738
$99.55/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
2 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 9 amp through 38 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 16 to 24 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

Technical Information

Applications
LC1D25;LC1D32;LC1D38;Motor protection
Contact Configuration
1 NO + 1 NC
Contact Rating
10A CONTROL CIRCUTRY
Control Type
Red push-button stop;Blue push-button reset
Dielectric Strength
50 Hz
Net Weight
0.124 kg
Number of Poles
3 Pole
Operating Temperature
-20C TO 60C WITHOUT DERATING
Reset Type
MANUAL OR AUTO
Size
2.76 in
Standard
CSA C22.2 No 60947-4-1,CSA C22.2 No 60947-5-1,EN 50495,EN/IEC 60947-4-1,EN/IEC 60947-5-1,GB/T 14048.4,GB/T 14048.5,UL 60947-4-1,UL 60947-5-1
Storage Temperature
-60-70 degrees C
Trip Type
THERMAL - AMBIENT COMPENSATED BI-METALLIC/DIFFERENTIAL CLASS 10 WITH SINGLE PHASE SENS.
Type
Differential thermal overload relay
Voltage
690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
LRD;TeSys LRD;TeSys Deca

General Product Info

12-Digit UPC
389110346841
GTiN
03389110346848
Product UPC
78590120680
Weight
0.124 kg

Dimensions

Depth
70 mm
Height
66 mm
Warranty Length
18 mth
Width
45 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
ATEX INERIS,BV,CCC,CSA,DNV-GL,EAC,IEC,LROS,RINA,UKCA,UL
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • LAD7B106
  • LAD703F
  • LAD703M
  • LAD7C2
  • LAD7305
  • XB5AL84101
  • XB5AA86102
Cross Sell Products
  • LC1D25M7
  • LC1D25P7
  • LC1D25B7
  • GV2L22
