Panduit DR18-205-C Loose Piece Disconnect

Manufacturer: Panduit Corp | Catalog # DR18-205-C | Cooper Electric Part # 886770
$156.12/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Engineering Drawing

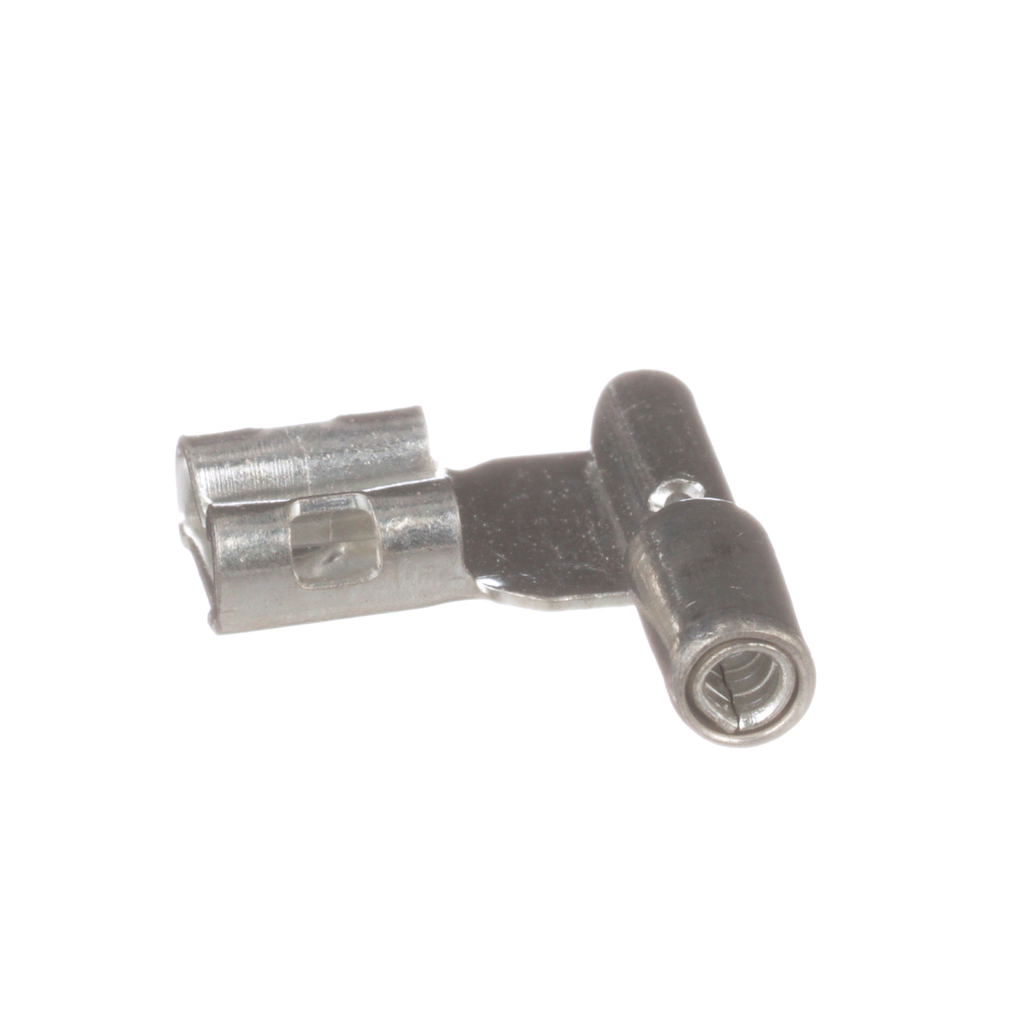

The vibration resistant female disconnect is made of brass and is tin-plated. It is non-insulated in metallic housing. It has a tab size of 0.205/0.187 x 0.032" (5.2/4.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.54" (13.7 mm) long and 0.25" (6.4 mm) wide. The disconnect has a standard barrel configuration and a sleeved barrel. It comes in bottles of 100.

Technical Information

Barrel Type
Sleeved Barrel
Color Coding
Metallic
Conductor Size
22-18 AWG
Material
Brass
Max Operating Temperature
150 degrees C
Standard
CSA,E2186,UL
TC Connection
Standard
Temperature Rating
302 degrees F
Type
Disconnect
Voltage
600 Volt
Wire Size
22-18 AWG

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983827435
Finish
Rust-Proof Plating, Vinyl Coated
GTiN
00074983827435
Product Type
Terminals
Product UPC
07498382743
UNSPSC
39121409

Dimensions

Depth
0.53 Inch
Height
0.53 Inch
Length
0.54 Inch
Overall Length
0.54 in
Width
0.25 in

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CE Compliant
No,No
Country of Origin
Mexico
Hazmat Flag
No
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
