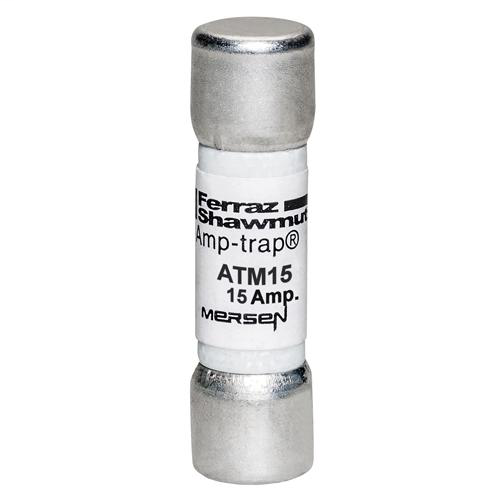

Product image for Mersen ATM15 Fast-Acting Amp-Trap Midget ATM Fuse - 15amp. Rated 600 volts AC & DC, with a 100kA interrupting rating

Email

Mersen ATM15 Fast-Acting Amp-Trap Midget ATM Fuse - 15amp. Rated 600 volts AC & DC, with a 100kA interrupting rating

Manufacturer: Mersen | Catalog # ATM15 | Cooper Electric Part # 88390

$34.51/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 6:00pm ET
0 available

For Delivery

Not in local stock *
Check another branch
*Out of stock, please contact your sales representative for availability, pricing and lead times
Amp-Trap® midget fast-acting ATM fuses are rated 600 volts AC and DC, with a 100kA interrupting rating. These ratings give the ATM a wide range of applications not covered by other midget fuses. In addition, ratings of 30/35, 30/40 and 30/50 amperes are offered for specific applications such as capacitor protection. These ATM fuses must still be considered 30A fuses because of their dimensions, but are able to withstand much higher inrush currents and tougher duty cycles. (Not for Branch Circuit Protection).

Technical Information

Amperage
15 Amp
Applications
For Supplemental Protection of a Wide Variety of Circuits up to 600 VAC and 600 VDC with 100 kA I.R
Fuse Class
Midget
Insulation Material
GMG
Interrupt Rating
100 kAIC
Mounting Type
Clip
Rated Voltage AC
600 V
Rated Voltage DC
600 V
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Supplemental Protection
Voltage
600 VAC

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.

General Product Info

12-Digit UPC
782001900694
Class
M
GTiN
30782001900695
Product UPC
78200190069
Weight
0.012 lb

Dimensions

Diameter
0.41 Inch
Length
1-1/2 Inch
Features
  • For supplemental protection of small motors and transformers
  • Extended ratings for special protection of capacitors and circuits with high inrush currents
  • 600VDC ratings for a wide variety of applications including photovoltaic and solar applications.
  • Can be used with UltraSafe™ fuse holders
  • 1 1/2\" x 13/32\" (10mm x 38mm) dimensions
Applications
  • Supplemental protection of of circuits up to 600VAC and 600VDC with 100kA I.R.
Approvals & Standards
  • UL listed to standard 248-14 (1/10 to 30A) File E33925
  • DC Listed to UL Standard 248-14 (1/10 to 30A)
  • CSA Certified to Standard C22.2 No. 248.14 (1/10 to 30A)
