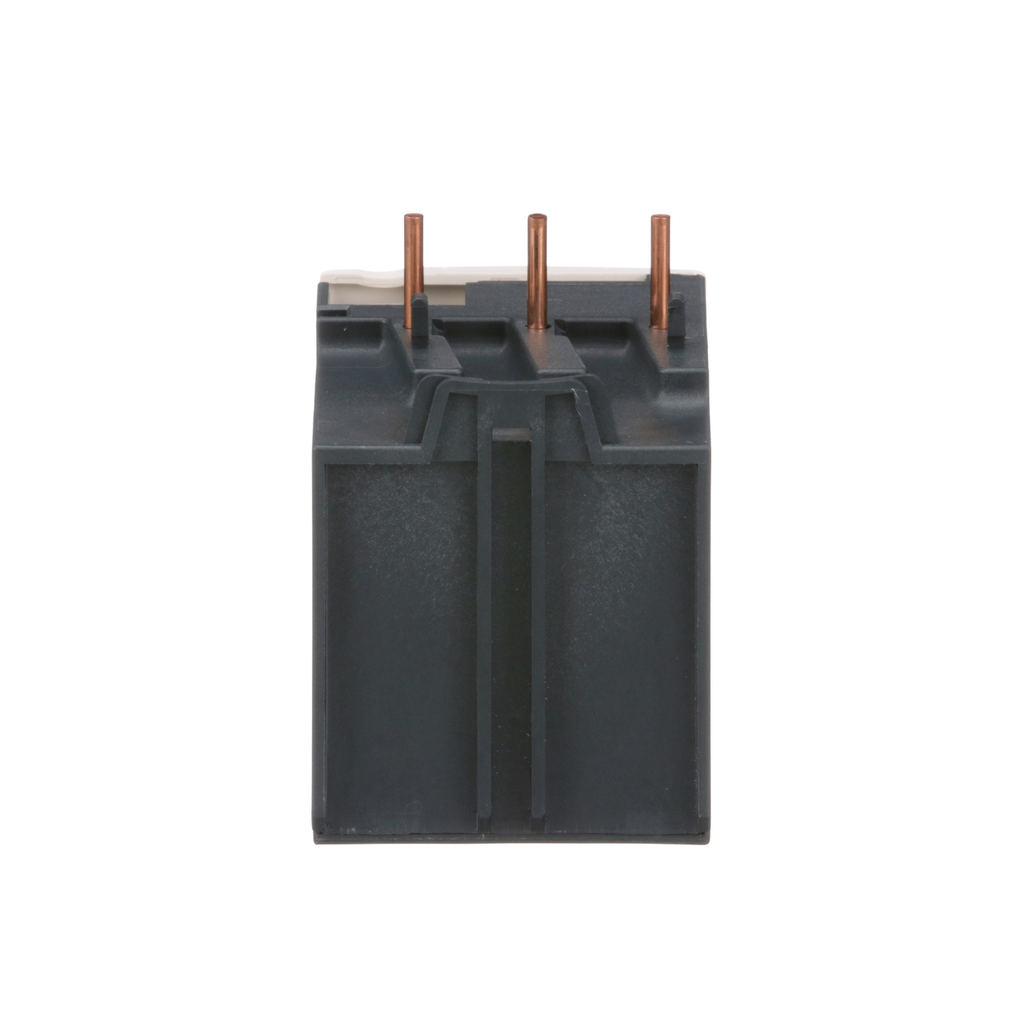

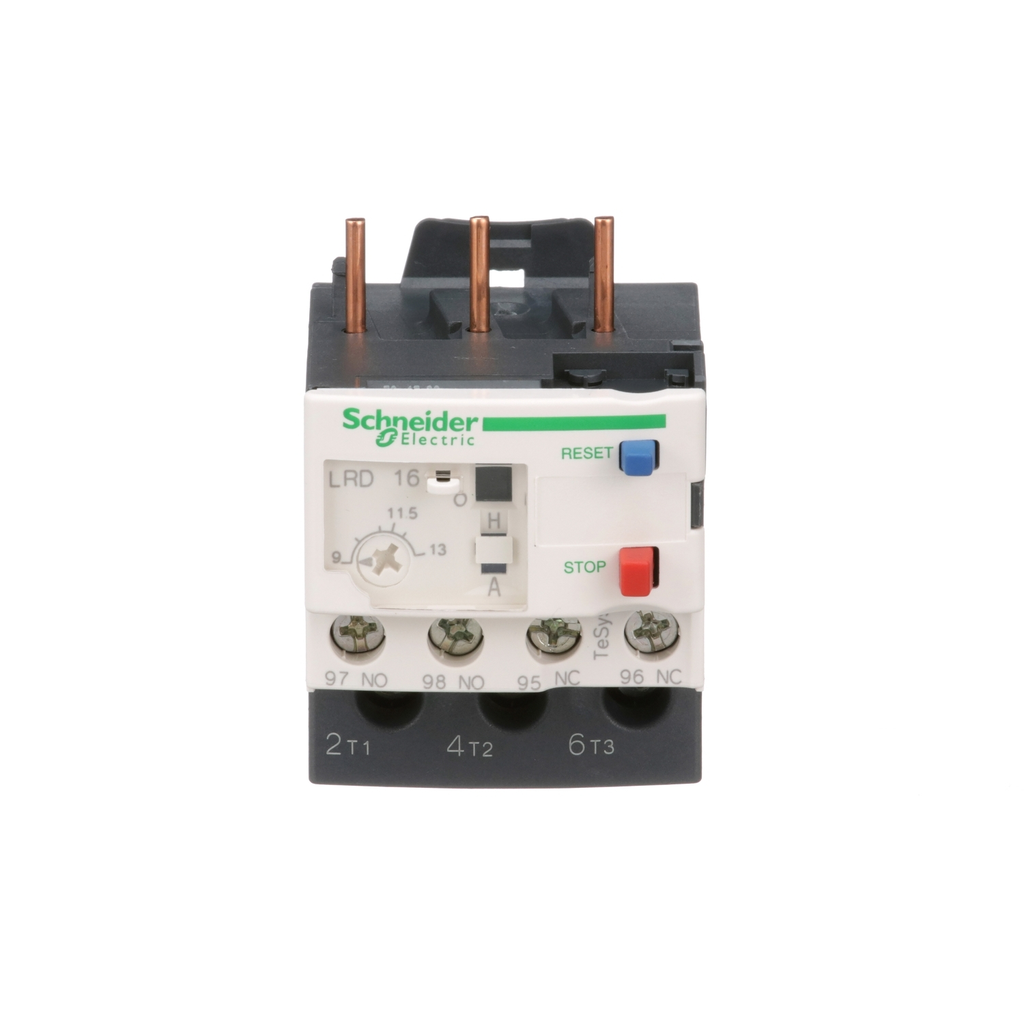

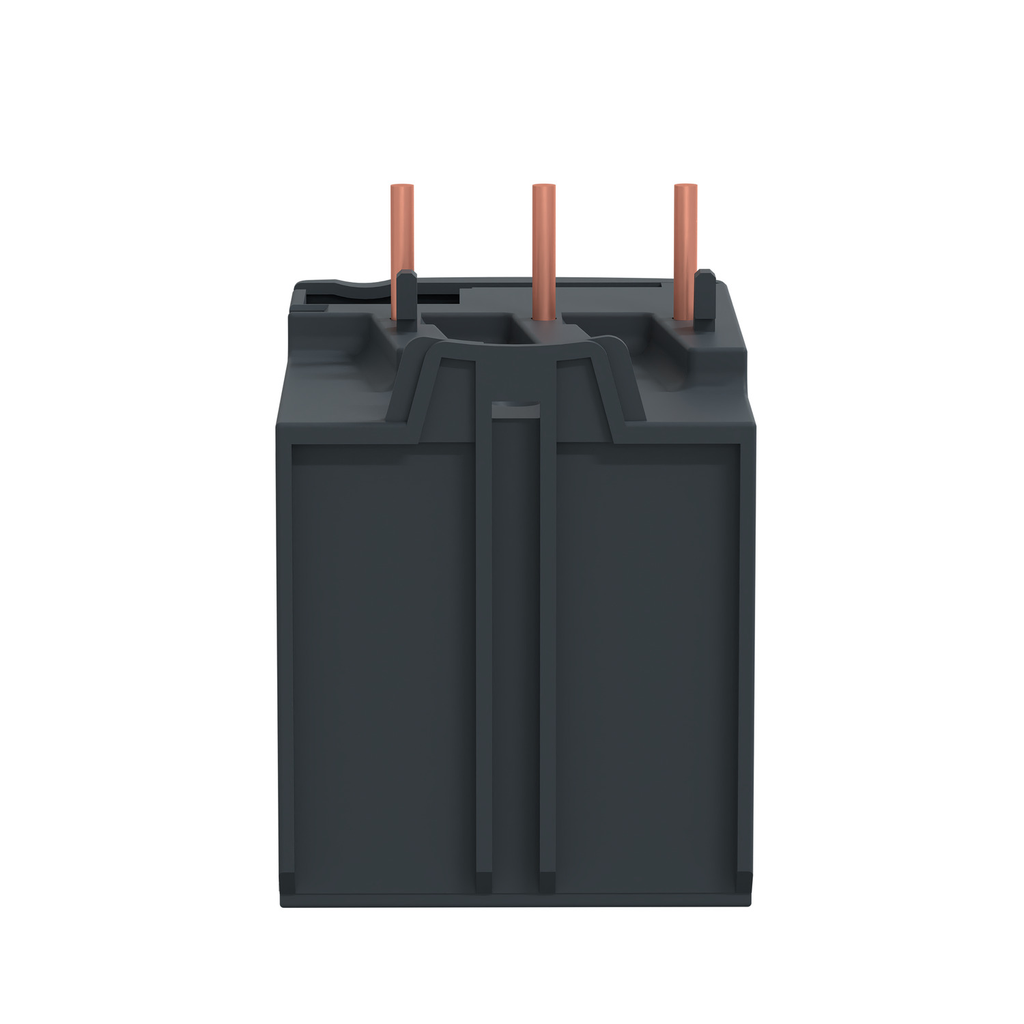

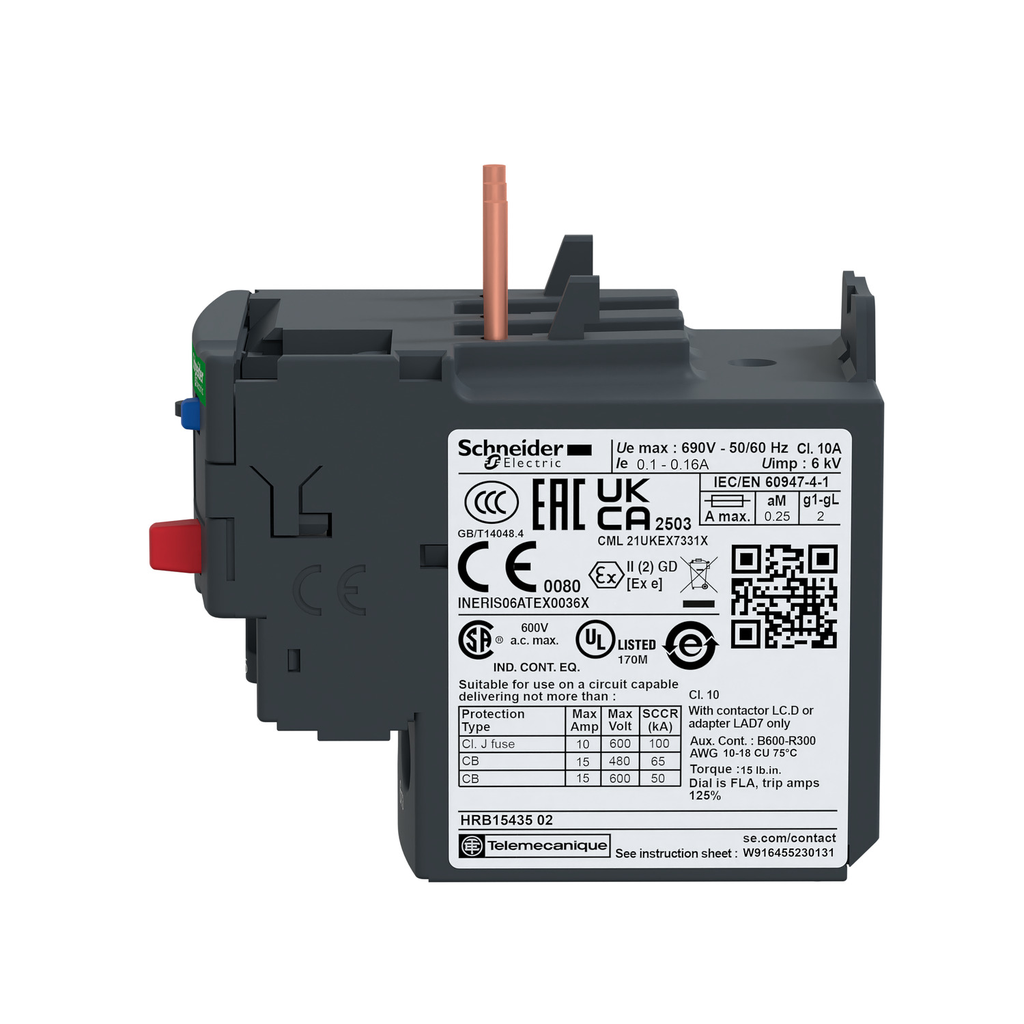

Product image for Square D LRD16 600 Volt 13 Amp 3-Pole Bi-Metallic Screw Clamp Terminal Thermal Overload Relay
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Email

Square D LRD16 600 Volt 13 Amp 3-Pole Bi-Metallic Screw Clamp Terminal Thermal Overload Relay

Manufacturer: Square-D / Schneider | Catalog # LRD16 | Cooper Electric Part # 88251
$99.11/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
9 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 9 amp through 38 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 9 to 13 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

Technical Information

Applications
LC1D18;LC1D38;LC1D32;LC1D12;LC1D25;Motor protection
Contact Configuration
1 NO + 1 NC
Contact Rating
10A CONTROL CIRCUTRY
Control Type
Red push-button stop;Blue push-button reset
Dielectric Strength
50 Hz
Net Weight
0.124 kg
Number of Poles
3 Pole
Operating Temperature
-20C TO 60C WITHOUT DERATING
Reset Type
MANUAL OR AUTO
Size
2.76 in
Standard
CSA C22.2 No 60947-4-1,CSA C22.2 No 60947-5-1,EN 50495,EN/IEC 60947-4-1,EN/IEC 60947-5-1,GB/T 14048.4,GB/T 14048.5,UL 60947-4-1,UL 60947-5-1
Storage Temperature
-60-70 degrees C
Trip Type
THERMAL - AMBIENT COMPENSATED BI-METALLIC/DIFFERENTIAL CLASS 10 WITH SINGLE PHASE SENS.
Type
Differential thermal overload relay
Voltage
690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
LRD;TeSys LRD;TeSys Deca

General Product Info

12-Digit UPC
338911034686
GTiN
03389110346824
Product UPC
78590120678
Weight
0.124 kg

Dimensions

Depth
2.76 in
Height
2.6 in
Warranty Length
18 mth
Width
1.77 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
ATEX INERIS,BV,CCC,CSA,DNV-GL,EAC,IEC,LROS,RINA,UKCA,UL
Country of Origin
France
Control Type
  • Red push-button stop
  • Blue push-button reset
Connections Terminals
  • control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end
  • control circuit screw c
ITH Conventional Free Air Thermal Current
  • 5 A signalling circuit
Mounting Support
  • plate, with specific accessories
  • rail, with specific accessories
  • under contactor
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004675_3D-CAD&p_File_name=MCADPD0004675_3D-simplified.stp
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004675_3D-CAD&p_File_name=MCADPD0004675_2D-back.dwg
  • https://downlo
Tripping Threshold
  • 1.14 +/- 0.06 Ir IEC 60947-4-1
IP Degree Of Protection
  • IP20 conforming to IEC 60529
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.01635889814277638
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.2 kg CO2 eq.
  • 0.21678519324421383
Related Products
  • LAD7B106
  • LAD703F
  • LAD703M
  • LAD7C1
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 1 kg CO2 eq.
  • 1.0267614686619415
UI Rated Insulation Voltage
  • power circuit 600 V CSA
  • power circuit 600 V UL
  • power circuit 690 V IEC 60947-4-1
Accessories
  • LAD7305
  • XB5AL84101
  • XB5AA86102
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
Thermal Overload Class
  • class 10A IEC 60947-4-1
Flame Retardance
  • V1 conforming to UL 94
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 12 kg CO2 eq.
  • 11.633004615445152
Accessory Products
  • LAD7305
  • XB5AL84101
  • XB5AA86102
Persona Type Ids
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
Dielectric Strength
  • 1.89 kV 50 Hz IEC 60947-1
Auxiliaries
  • LAD7B106
  • LAD703F
  • LAD703M
  • LAD7C1
Permissible Current
  • 1.5 A 240 V AC-15 signalling circuit
  • 0.1 A 250 V DC-13 signalling circuit
  • 0.1 A 250 V DC-13 signalling cir
Carbon Footprint Of The Distribution Phase A4
  • 0.024163479198025903
  • 0 kg CO2 eq.
Tightening Torque
  • control circuit 1.7 N.m screw clamp terminals
  • power circuit 1.7 N.m screw clamp terminals
  • power circuit 1.7 N.m screw
Mechanical Robustness
  • vibrations6 Gn IEC 60068-2-6
  • shocks15 Gn for 11 ms IEC 60068-2-7
Network Type
  • DC
  • AC
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Associated Fuse Rating
  • 4 A gG for signalling circuit
  • 4 A BS for signalling circuit
Ambient Air Temperature For Operation
  • -20-60 °C without derating IEC 60947-4-1
UE Rated Operational Voltage
  • 690 V AC 0...400 Hz power circuit IEC 60947-4-1
Range
  • TeSys
  • TeSys Deca
