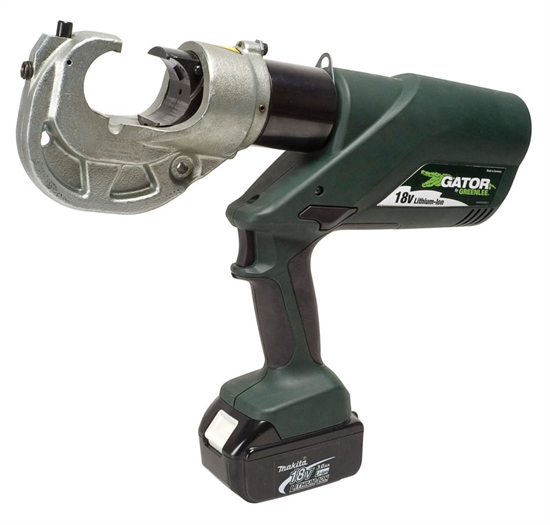

GRN EK1230L120 (52048100) 12T 120V CRIMP TOOL

Manufacturer: Greenlee | Catalog # EK1230L120 | Cooper Electric Part # 878936
$4,662.97/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
12-Ton Crimping Tool w/120 VAC Adapter

Technical Information

Battery Type
18V Lithium-Ion
Crimping Force
24000 lb
Standard
C/US UL Listed
Type
Battery Powered

Manufacturer Information

Brand
Greenlee

General Product Info

12-Digit UPC
783310520719
GTiN
00783310520719
Product UPC
78331052071
Weight
14.500 lb

Dimensions

Overall Length
15-1/2 in
Description
  • State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times.
  • LEDwork light illuminates dark work areas.
  • LED light provides the operator with the battery charge and tool maintenance status.
  • Tools automatically retract when the crimping cycle is complete,
  • Two-stage hydraulic system provides fast advance and power speeds, saving time.
  • Covered head models have two layers of PVC that total approximately 3/16\"\" (4.8 mm) thick.
  • Three crimping headchoices: EK1230L with 1.20\" (30mm) opening uses Greenlee KC12, KA12 & KD12 crimping diesplus all industry \"U\" style crimping dies, EK1240L with 1.65\" (42mm) opening uses Greenlee KC12, KA12 & KD12 crimping dies plus all industry \"U\" style crimping dies, EK1240KL uses Kearney PH2 style crimping dies.
  • Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications.
  • Greenlee battery-powered crimping tools now use bio-degradable oil.
  • Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger,
  • One trigger controls all tool functions.
  • U.S. Patents #6,206,663 and #6,065,326
  • Forward handle position improves tool balance.
  • Crimping head rotates 350 DEG
  • The outer layer is black and the inner layer is red.
  • Overmolded tacky grip areas make gripping the tool easier and more comfortable.
  • Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy.
  • Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life,
