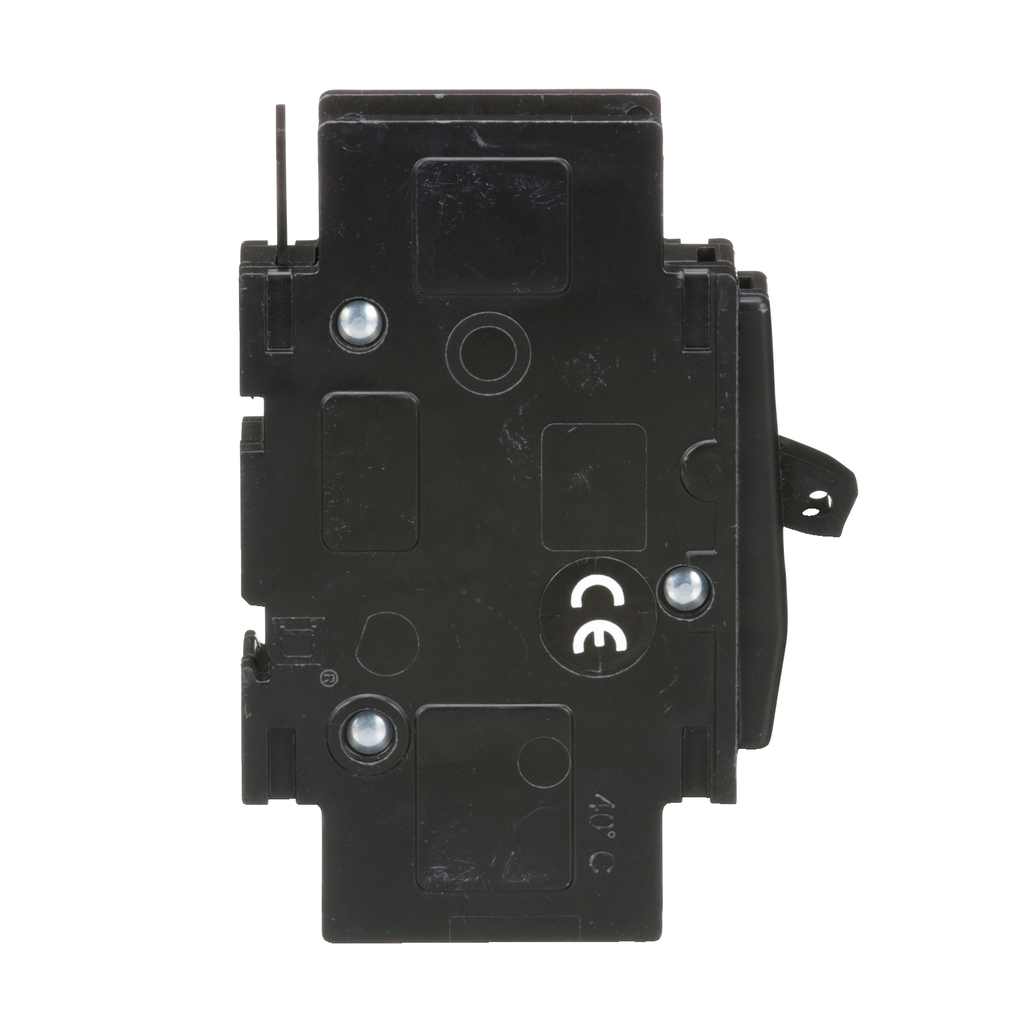

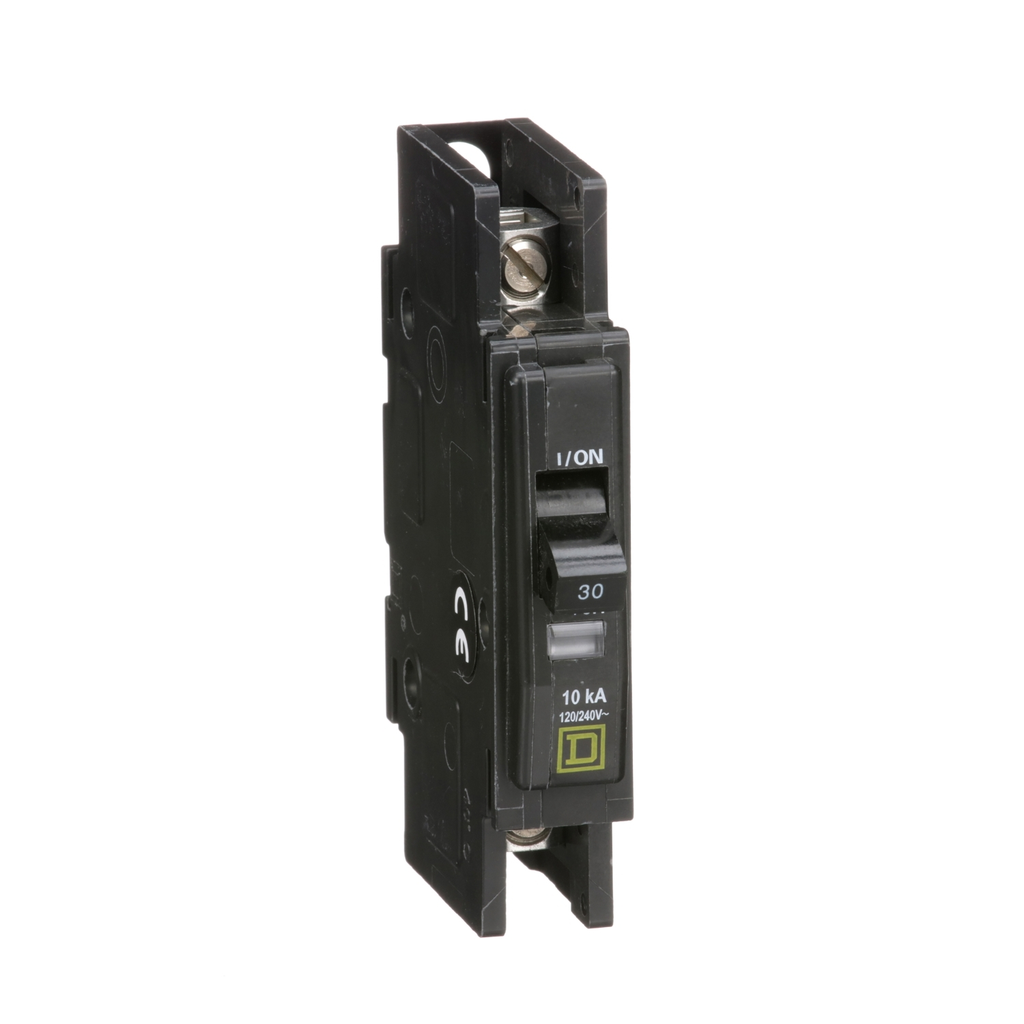

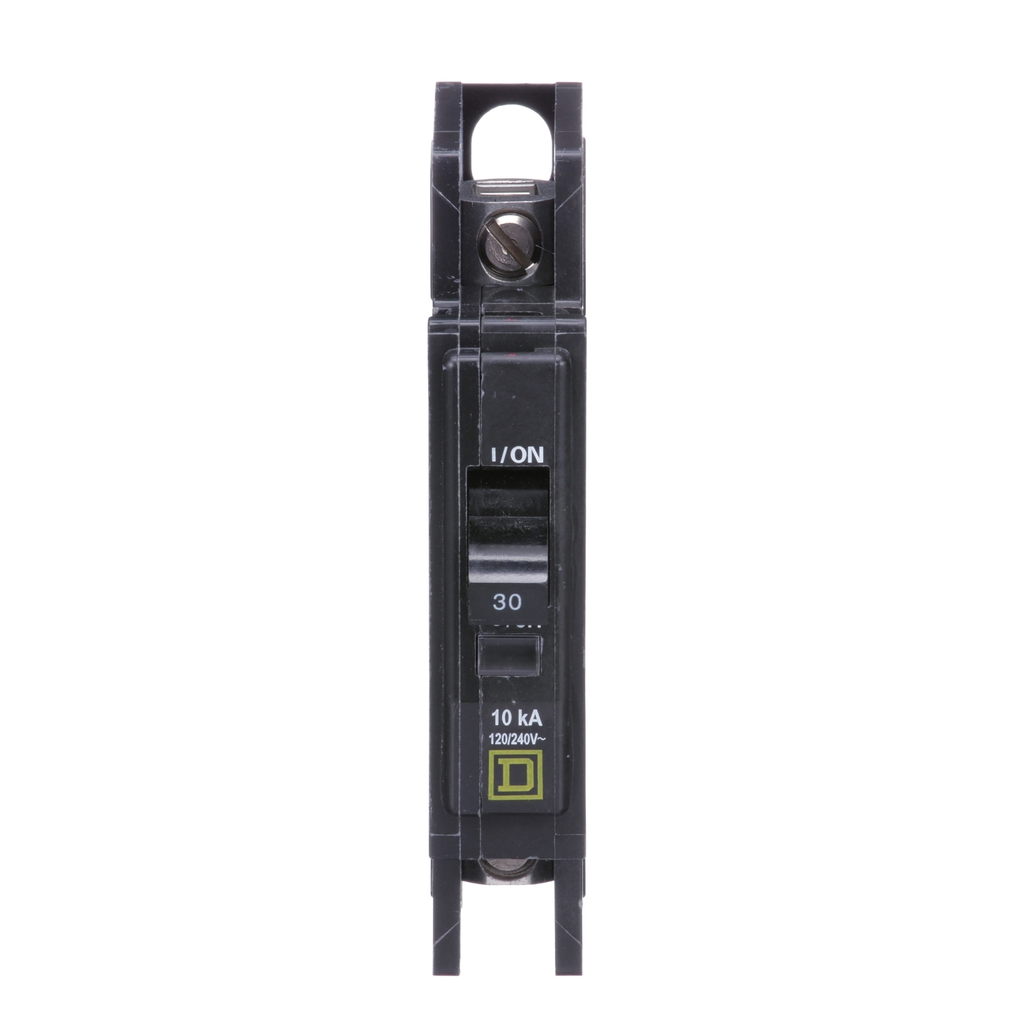

Square D QOU130 120/240 Volt 30 Amp Miniature Circuit Breaker

Manufacturer: Square-D / Schneider | Catalog # QOU130 | Cooper Electric Part # 87608
$40.20/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Friday 7:00am ET
28 available

For Delivery

Order by Thursday 5:00pm ET for delivery Friday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. A range of accessories can be found for these breakers with their product range and are versatitle in their mounting.

Technical Information

Amperage
30 Amp
Applications
HACR and Switching Duty rated
Circuit Breaker Type
Standard
Interrupt Rating
10 kAIC
Line Rated Current
30 A
Mounting Type
Unit Mount
Number of Poles
1 Pole
Short Circuit Current
10 kA
TC Connection
LINE: BOX LUG - LOAD: BOX LUG #14-2 AWG(AL/CU)
Type
Miniature circuit-breaker
Voltage
120 Volt

Manufacturer Information

Brand
Square D
Sub Brand
QOU

General Product Info

12-Digit UPC
785901418566
GTiN
00785901418566
Product UPC
78590141856

Dimensions

Depth
2.95 Inch
Height
4.05 Inch
Length
2.95 Inch
Warranty Length
18 mth
Width
0.75 in

Certifications and Compliance

CA Prop65 Warning
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Certifications
CSA,IEC,UL Listed
Country of Origin
Mexico
Compatible Products
  • HLO1
  • QOU1PAFLA
  • QOUECB
  • QOULFSC1B
  • QOU14100JBAF
  • QOU2DTILA
  • QOU14100BAFB
