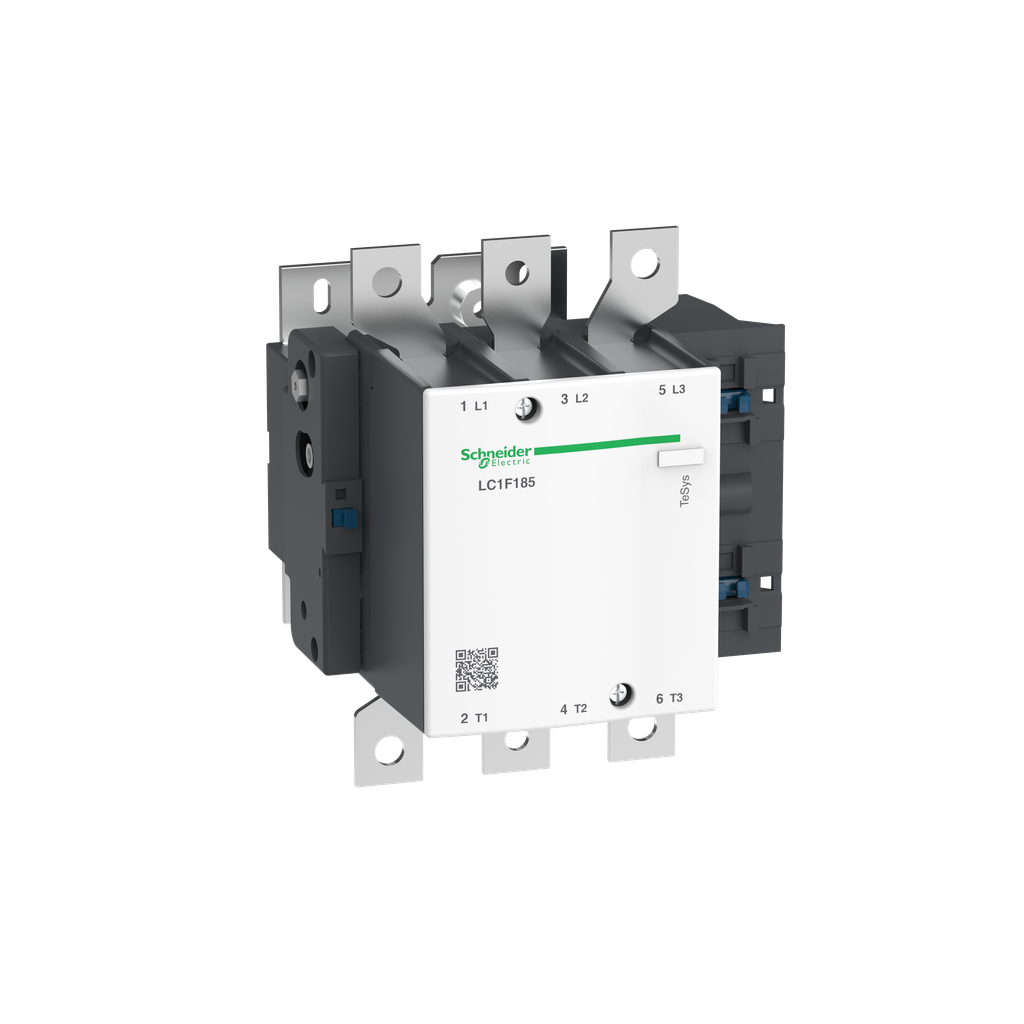

Product image for Square D LC1F185Q5 600 VAC 185 Amp 3-Pole 1NO Panel Mount Full Voltage Non-Reversing IEC Contactor
Image thumbnail 0
Image thumbnail 1
Email

Square D LC1F185Q5 600 VAC 185 Amp 3-Pole 1NO Panel Mount Full Voltage Non-Reversing IEC Contactor

Manufacturer: Square-D / Schneider | Catalog # LC1F185Q5 | Cooper Electric Part # 875625
$938.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
TeSys F contactor, 3 poles (3NO), 185A/690V AC-3, for motor applications up to 90kW@400V. It provides a 380V 50Hz AC coil, bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55.C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical Information

Applications
MOTOR CONTROL-RESISTIVE LOAD
Coil Voltage
380 V AC 50 HZ,<= 460 V DC- <= 690 V AC 50/60 HZ
Contact Configuration
3 NO
Contact Rating
275 A 40 AC
Impedance
0.33 mOhm - Ith 275 A 50 Hz
Operating Cycles
2400 cyc/h 131 F (55 C)
Operating Temperature
-40-70 Adegrees C,-5-55 Adegrees C
Size
168.5 MM,174 MM,181 MM
Standard
EN 60947-1,EN 60947-4-1,IEC 60947-1,IEC 60947-4-1,JIS C8201-4-1
TC Connection
CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMAFLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMAFLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMAFLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMAFLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMASOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMASOLID WITHOUT CABLE END-POWER CIRCUIT BAR 2 25 X 3 MM-POWER CIRCUIT LUGS-RING TERMINALS 1 150-150 MMA-POWER CIRCUIT CONNECTOR 1 150-150 MMA-POWER CIRCUIT BOLTED CONNECTION
Type
CONTACTOR
Voltage
460 Volt
Wattage
12 Watt AC-3 - 25 Watt AC-1

Manufacturer Information

Brand
TeSys
Sub Brand
TESYS F

General Product Info

12-Digit UPC
785901404675
GTiN
03389110226799
Product UPC
78590140467
Weight
10.25 lb

Dimensions

Depth
7.13 Inch
Height
6.85 Inch
Warranty Length
18 mth
Width
6.63 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
ABS,BV,CB,CCC,DNV,LROS (Lloyds Register Of Shipping),RINA,RMRoS,UL
Country of Origin
Czech Republic
