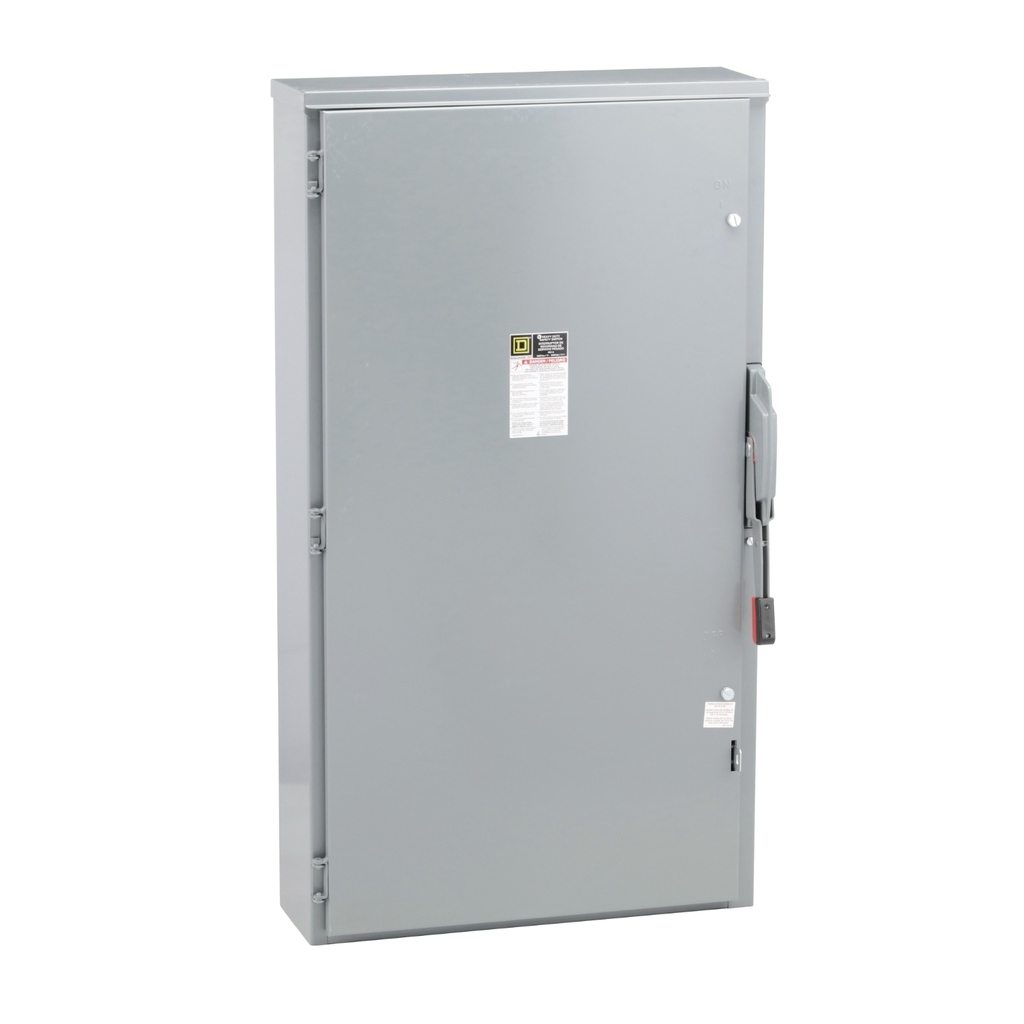

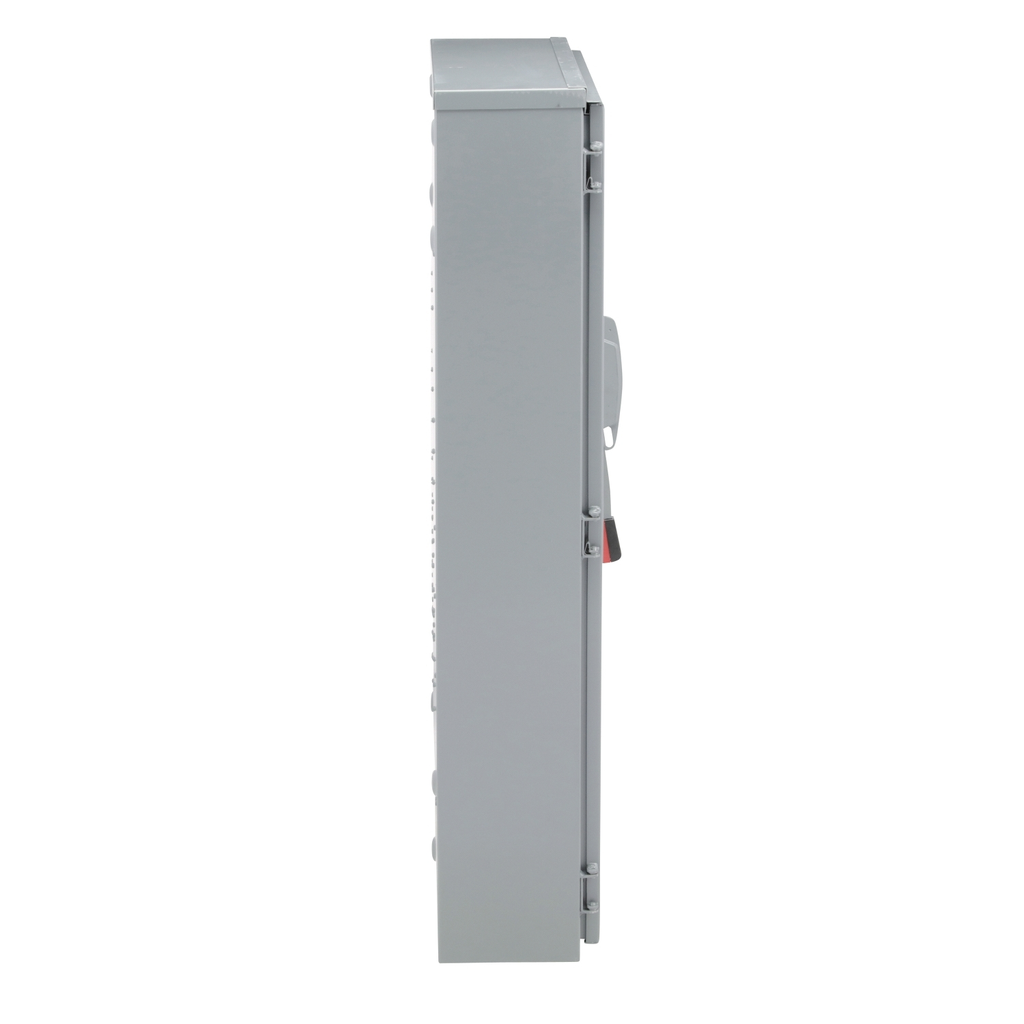

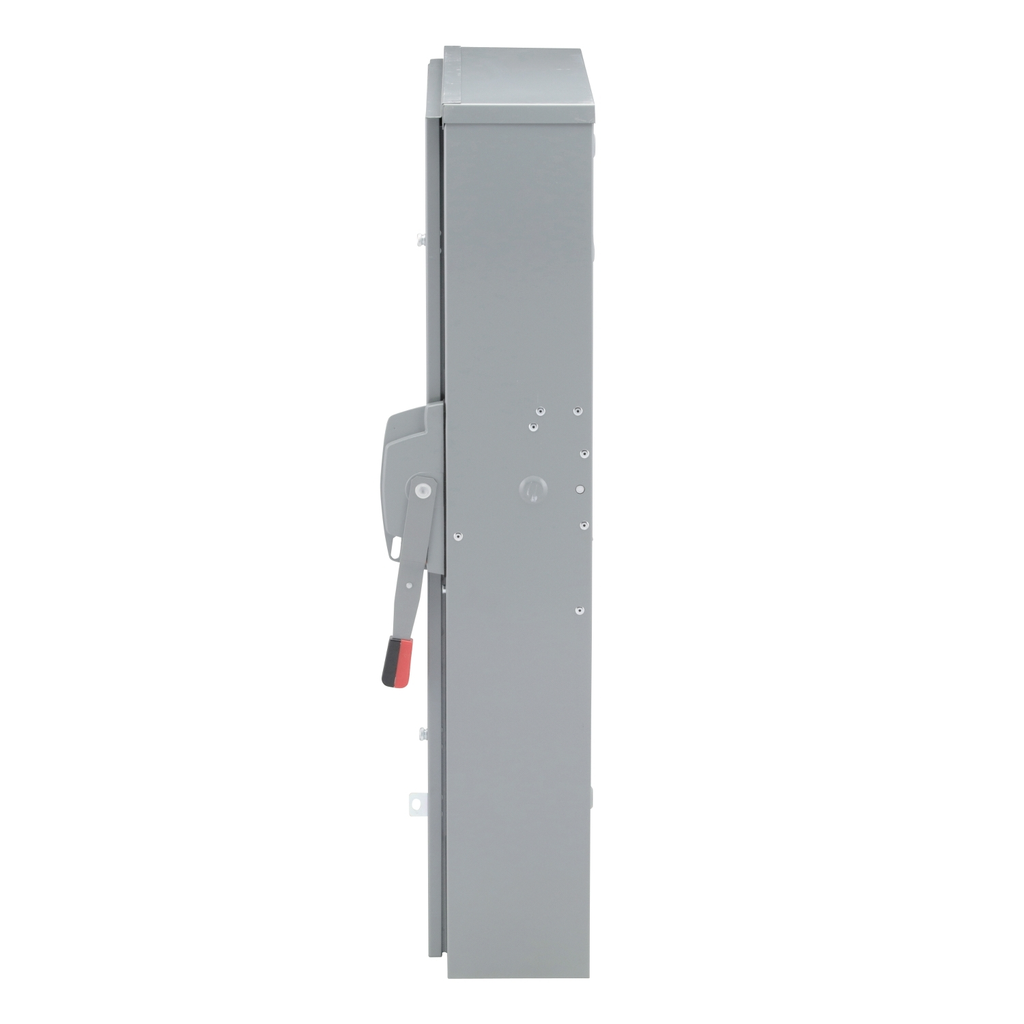

Square D HU365R 600 VAC 400 Amp 3-Pole Non-Fusible Heavy Duty Safety Switch

Manufacturer: Square-D / Schneider | Catalog # HU365R | Cooper Electric Part # 87530
$3,840.00/ea
ea
Log in or register to view your price, purchase history, and more!
Fusible Non-Fusible
2P 3P
2-Wire 3-Wire 4-Wire
Type 1 Indoor Type 3R Rainproof
30 60 100 200 400 600
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
4 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 Product Brochure
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 400A and is UL listed with a NEMA 1 rating of protection. This 3-pole switch has operational voltage ratings of 600VAC/DC. The enclosure is made of steel and has no neutral installed. This non-fusible disconnect has a short circuit current rating of 200kA. This safety switch is surface mounted. This switch comes with an 18 months warranty.

Technical Information

Amperage
400 Amp
Applications
HEAVY DUTY
Conductor Size
1/0 AWG-750 kcmil
Current
400 Amp
Disconnect Type
Non-fusible disconnect NULL
Duty Rating
Heavy duty NULL
Enclosure
3R
Enclosure Material
Steel
Enclosure Rating
3R
Line Rated Current
400 A
Material
Steel
Mounting Type
Surface
NEMA Size
3R
Net Weight
84.8 kg
Number of Phases
3 Phase
Number of Poles
3 Pole
Short Circuit Current
200 kA
Size
10.13 IN,27.88 IN,50.31 IN
TC Connection
LUGS
Type
SINGLE THROW SAFETY SWITCH,NON-FUSIBLE DISCONNECT
Voltage
600 Volt
Wire Size
AWG 1/0...750 kcmil copper or aluminium
Wire Type
AWG 1/0...750 KCMIL COPPER OR ALUMINIUM

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901450481
Environmental Conditions
RAINPROOF AND SLEET/ICE PROOF (INDOOR/OUTDOOR)
GTiN
00785901450481
Product UPC
78590145048
Weight
84.8 kg

Dimensions

Depth
10.13 Inch
Height
50.31 Inch
Warranty Length
18 mth
Width
27.88 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL Listed File E2875
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • EIK40601
  • EIK40602
  • H600SN
  • PKOGTA2
  • B300
  • B400
  • BCAP
  • H300
  • H350
  • H400
