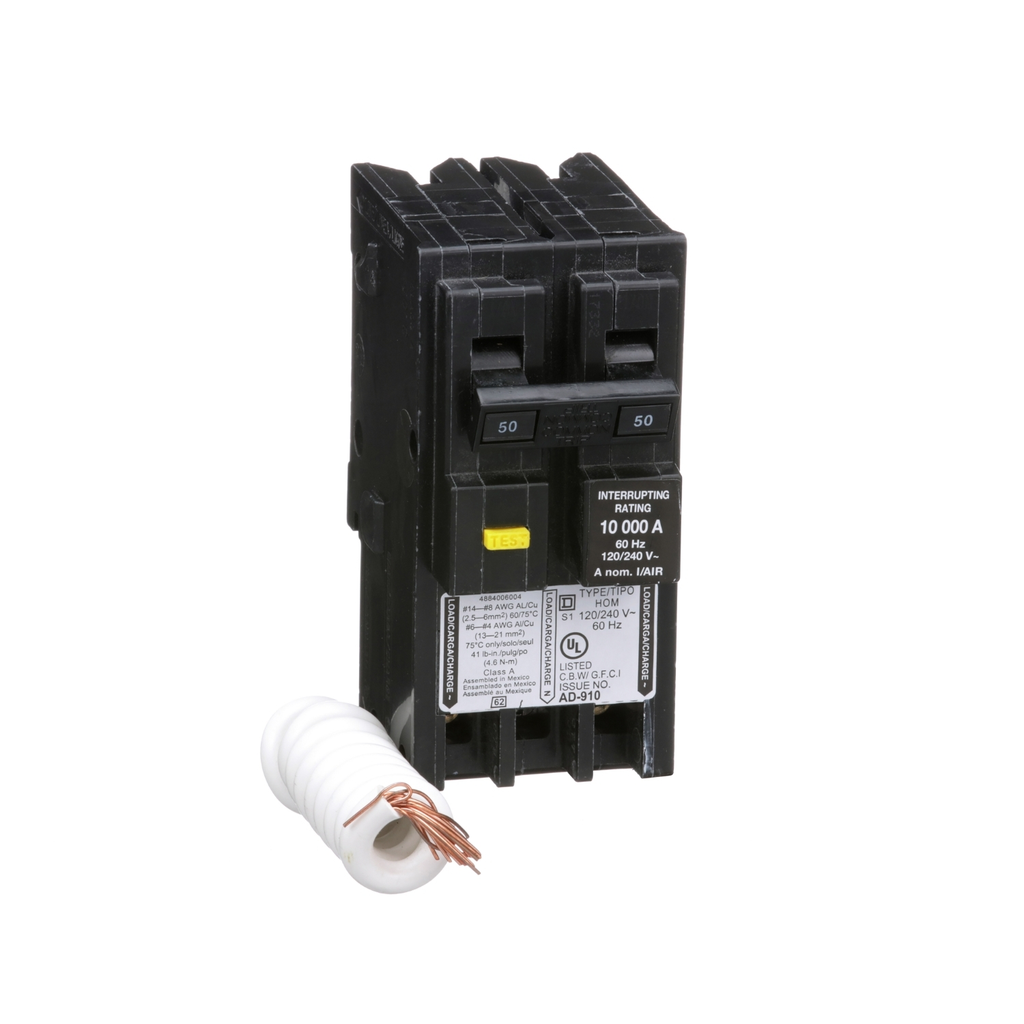

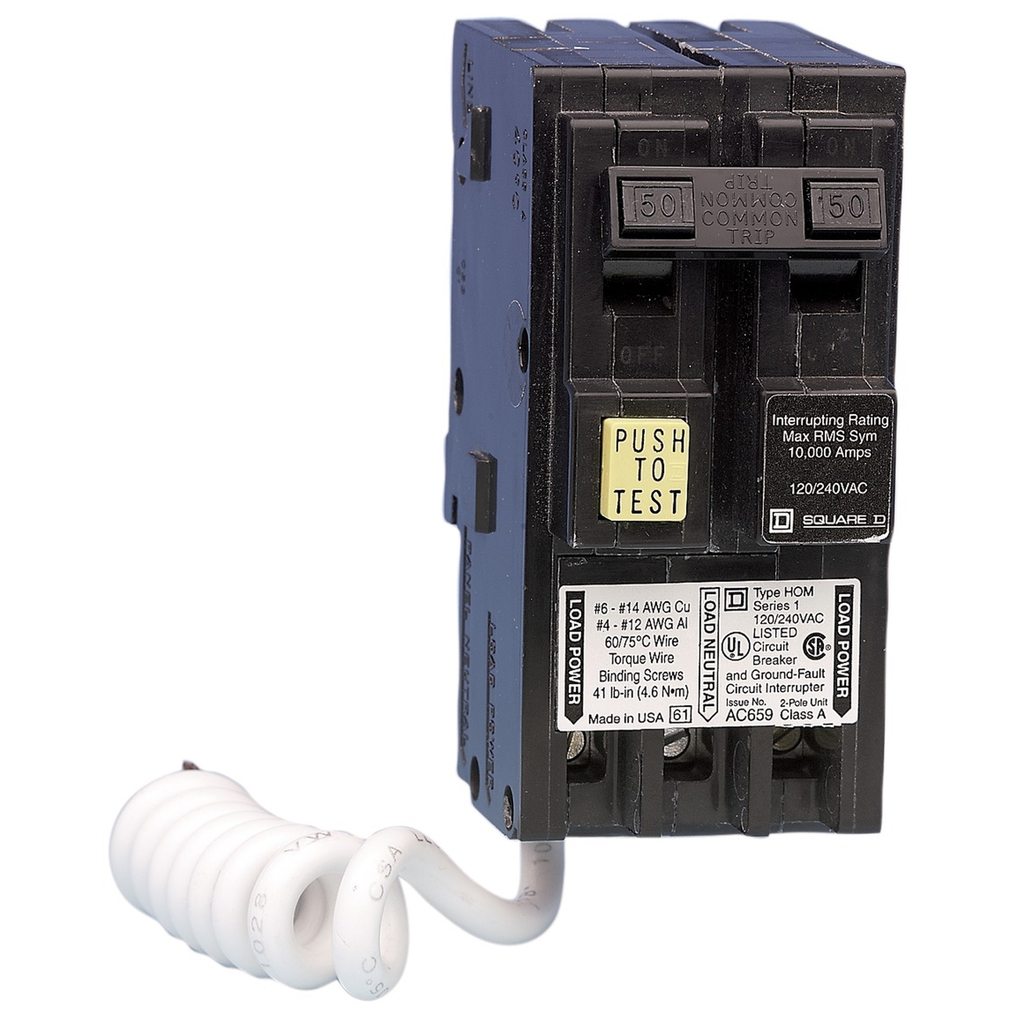

Square D HOM250GFI 120/240 Volt 50 Amp Miniature Circuit Breaker

Manufacturer: Square-D / Schneider | Catalog # HOM250GFI | Cooper Electric Part # 87379
$315.31/ea
ea
Log in or register to view your price, purchase history, and more!
1 2 4
Plug-In Neutral Pigtail Neutral
3 available

For Pick Up

at Ocean Opens Friday 8:00am ET
102 available

For Delivery

Order by 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 50A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline ground fault circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more. The electrical connection is a clamp terminal that will accept 1 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Technical Information

Amperage
50 Amp
Applications
PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION
Circuit Breaker Type
Ground Fault Protecting Class A 6 MA
Conductor Size
12-4 AWG (AL)/14-6 AWG (CU)
Current
50 Amp
Interrupt Rating
10 kAIC
Line Rated Current
50 A
Mounting Type
Plug-in
Number of Poles
2 Pole
Number of Spaces
2
Operating Temperature
40 Adegrees C
Range
Homeline
Short Circuit Current
10 kA
Short Circuit Current Ratng
10 kA
TC Connection
SCREW #12-4 AWG(AL) - #14-6 AWG(CU)
Type
MINIATURE CIRCUIT BREAKER
Voltage
120/240 Volt
Wire Size
AWG 12...AWG 4 aluminium)1;AWG 14...AWG 6 copper)1

Manufacturer Information

Brand
Square D
Sub Brand
HOMELINE

General Product Info

12-Digit UPC
785901783572
GTiN
00785901783572
Product UPC
78590178357

Dimensions

Depth
2.98 Inch
Height
3.13 Inch
Length
2.98 Inch
Warranty Length
Lifetime
Width
2 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go t
Certifications
UL
Country of Origin
Mexico
Circuit Breaker Type
  • ground fault protecting class A 6 mA
Prop 65
  • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go t
Carbon Footprint Of The Installation Phase A5
  • 0.0011591419
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.1 kg CO2 eq.
  • 0.1125803125
Ue Rated Operational Voltage
  • 120/240 V AC
Related Products
  • HOM115CAFI
  • HOM115DF
  • HOM115GFI
  • B075
  • B100
  • B125
  • B150
  • B200
  • B250
  • HOM115
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 3 kg CO2 eq.
  • 3.0135596355
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 39 kg CO2 eq.
  • 39.066
Carbon Footprint Of The Distribution Phase A4
  • 0.0708144491
  • 0.1 kg CO2 eq.
Tightening Torque
  • 4.6-4.6 N.m 2.5-10 mm² (AWG 16...AWG 14)
  • 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4)
AWG Gauge
  • 1 x AWG 12...AWG 4 ( aluminium )
  • 1 x AWG 14...AWG 6 ( copper )
