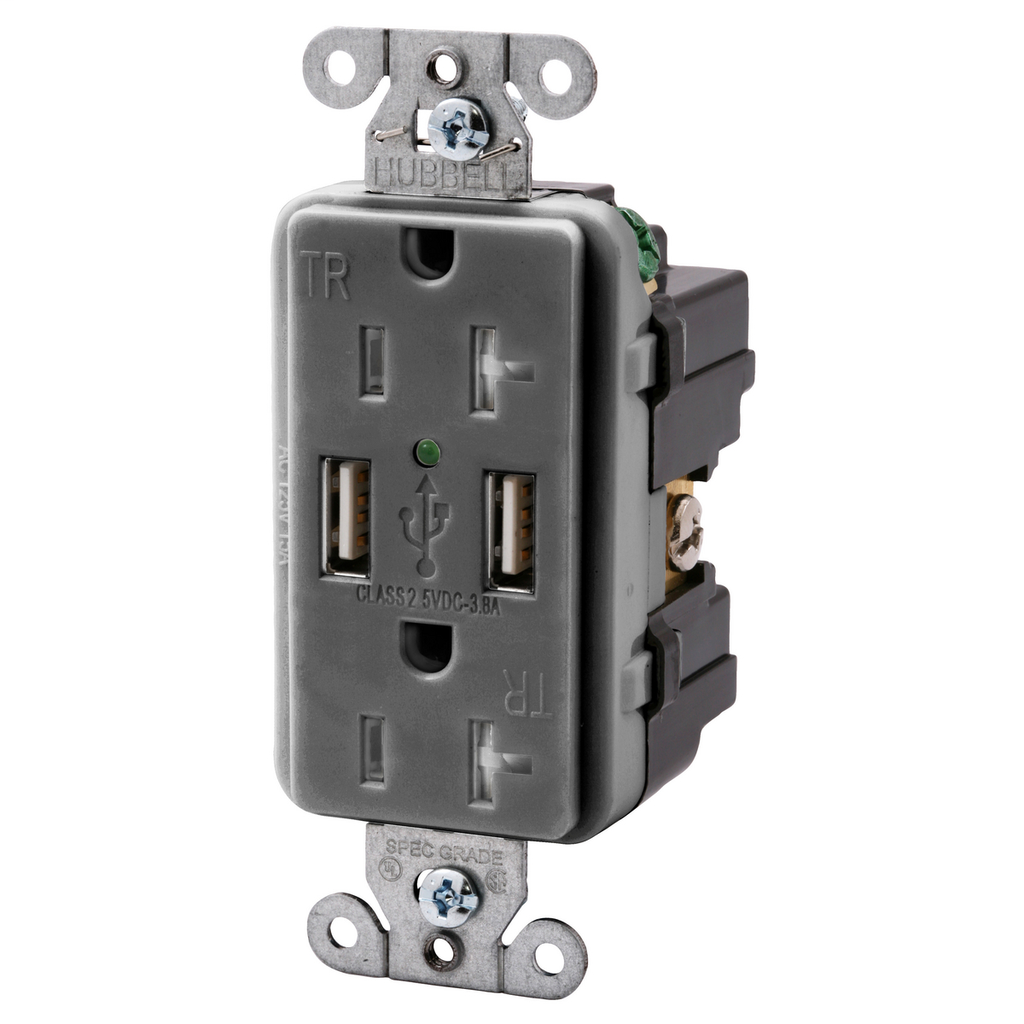

Product image for Hubbell USB20X2-GY USB Charger / Tamper-Resistant Receptacle, Two USB Type 2.0 Ports 3 Amp, 5VDC, 20 Amp, 125VAC Decorator Duplex - Gray
Image thumbnail 0
Image thumbnail 1
Email

Hubbell USB20X2-GY USB Charger / Tamper-Resistant Receptacle, Two USB Type 2.0 Ports 3 Amp, 5VDC, 20 Amp, 125VAC Decorator Duplex - Gray

Manufacturer: Hubbell Wiring Device | Catalog # USB20X2GY | Cooper Electric Part # 873124
$40.61/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
USB 20A 125V AC Charger Tamper-Resistant receptacle,Two USB Type 2.0 ports 3 Amp, 5 Volt DC

Technical Information

Amperage
20 Amp
Applications
Commercial Specification Grade
Base Material
RTP,RTP
Conductor Size
14-10 AWG
Contact Material
Plated Steel
Face Material
RTP
Flamability Class
UL 94V-2
Material
Thermoplastic
Number of Poles
2 Pole
Number of Wires
3 Wire
Screw Material
Plated Steel
Size
Standard Sized Product
Standard
ANSI C-73
Tamper Resistant?
Yes
TC Connection
Back and Side Wired Terminal Screws
Type
Decorator, Tamper-Resistant
Voltage
2,000 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
883778304897
Color
Gray
GTiN
00883778304897
Product UPC
88377830489
Features
  • Two USB ports 3.8 Amp, 5V DC, type A, class 2.0
  • Tamper-Resistant decorator duplex receptacle
  • Green LED indicator to show USB power available
  • Compatible with USB 1.1/2.0/3.0 devices, including Apple® products
Listings
  • cULus listed to UL498
