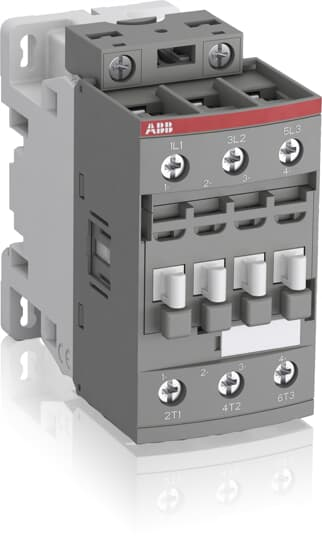

Thomas & Betts AF26-30-00-11 24 to 60 VAC 20 to 60 VDC 45 Amp 3-Pole Non-Reversing Contactor

Manufacturer: ABB Low Voltage | Catalog # AF26-30-00-11 | Cooper Electric Part # 871610
$433.82/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
3 poles 45 amperes, non-reversing across the line contactor with 24-60V AC and 20-60V DC coil and no auxiliary contacts. 86 millimiters depth x 86 millimiters height x 45 millimiters width.

Technical Information

Amperage
45 Amp
Applications
For Controlling 3-Phase Motors, Non-Inductive or Slightly Inductive Loads
Coil Voltage
24 - 60 VAC, 20 - 60 VDC
Contact Configuration
3 NO Main
Mounting Type
Front and Side
Number of Poles
3 Pole
Power Rating
6.5 kW at 220/230/240 V, 11 kW at 380/400 V, 15 kW at 415/440/500/690 V
Size
45x86x86mm
Standard
60947-4-1,CSA C22.2 N14,EN 60947-1,IEC 60947-1,UL 508
Temperature Rating
-25 to 60 degrees C
Terminal Type
Screw Terminals
Type
Non-Reversing
Voltage
690 VAC

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
804325538701
Environmental Conditions
-60 to 80 C Storage Temperature
GTiN
00804325538701
Product UPC
80432553870
