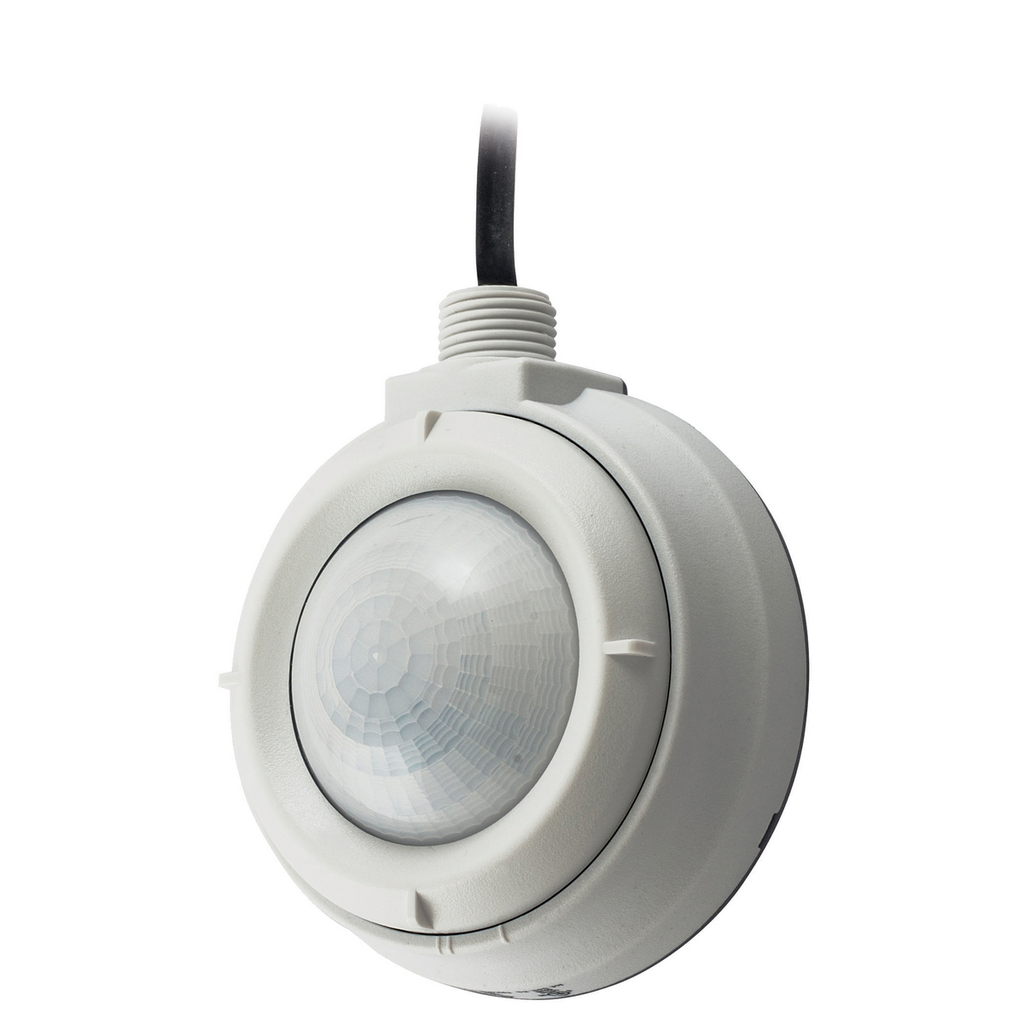

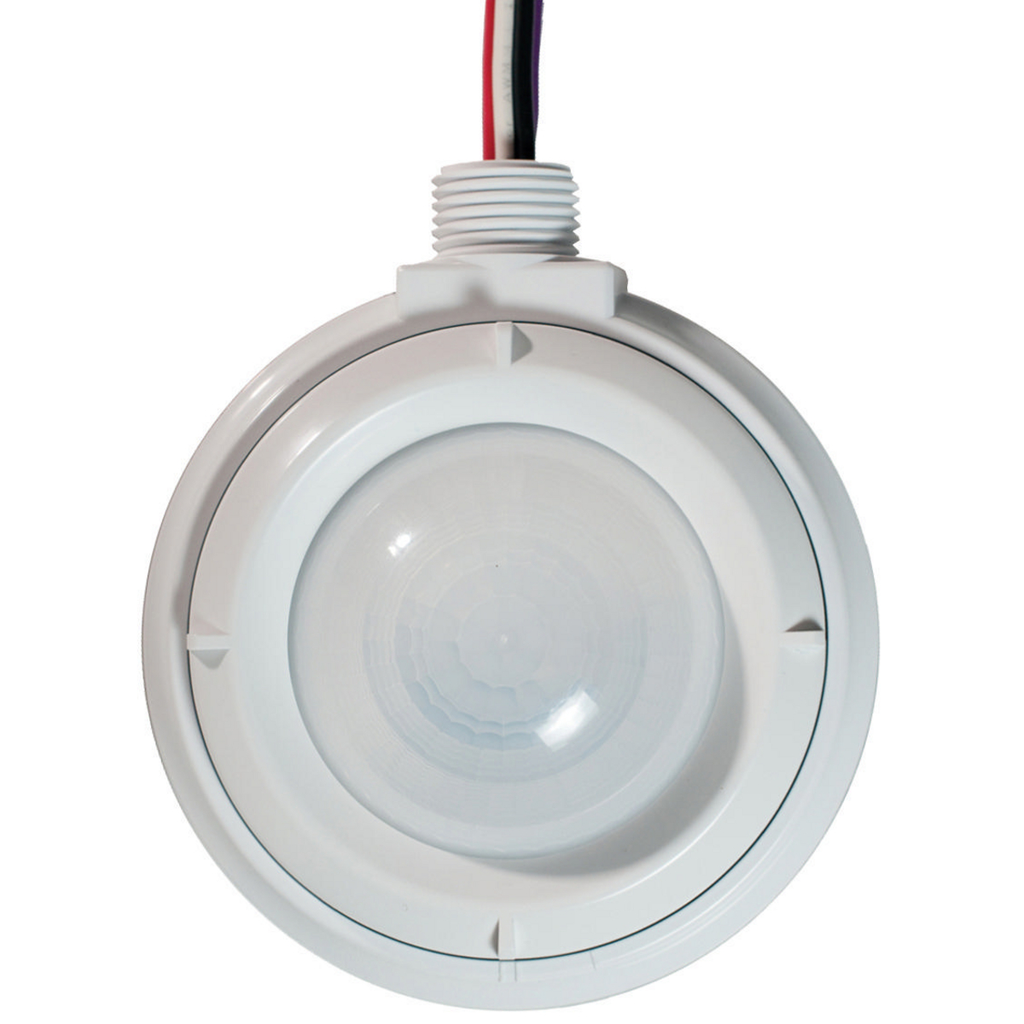

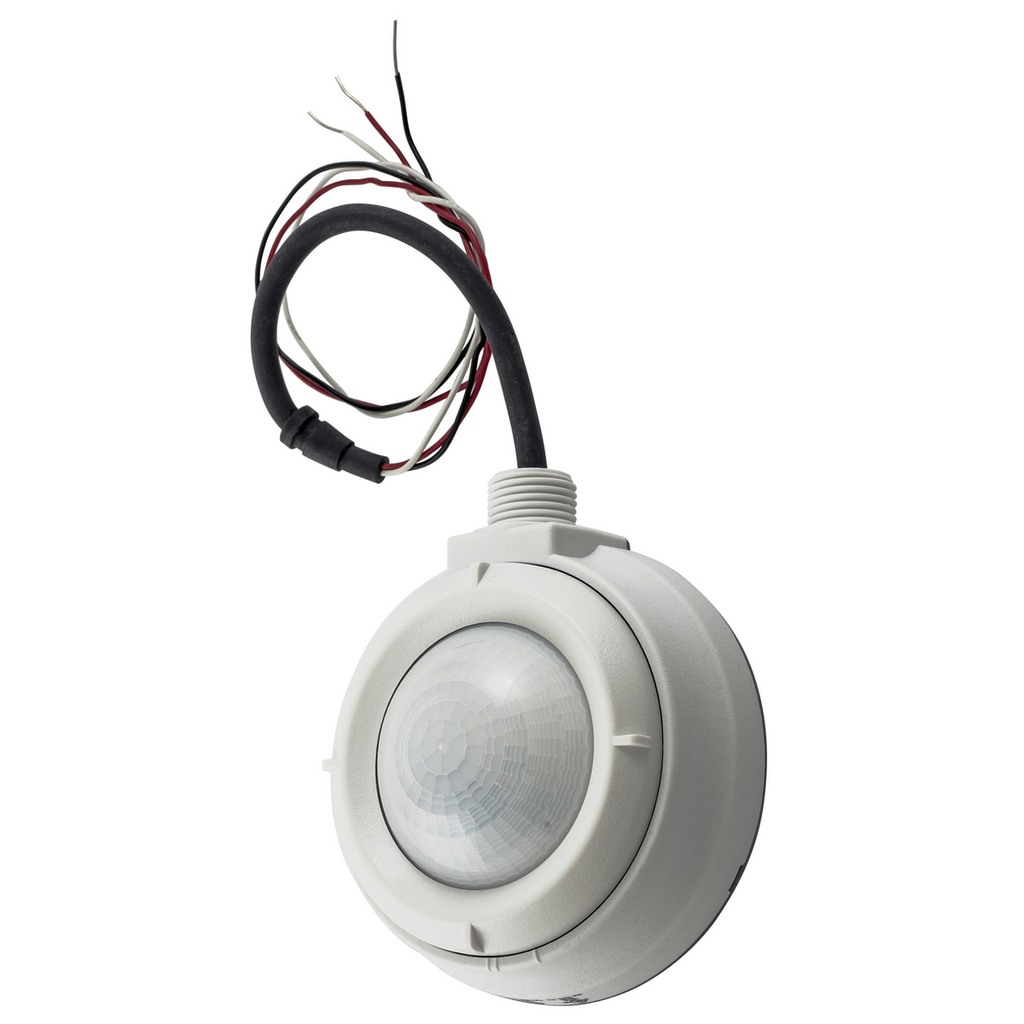

Hubbell HMHB21UPCW Sensor PIR relay with photocell 347VAC white

Manufacturer: Hubbell Wiring Device | Catalog # HMHB21UPCW | Cooper Electric Part # 871509
$98.27/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual
Switches and Lighting Control, Fluorescent High Bay Photocell Sensor, PIR, 1 Relay, Universal, Low Temp, 120-347V AC, Water Tight

Technical Information

Operating Temperature
-40 To 149 degrees F
Standard
CEC Title 24,CULus,Meets ASHRAE 90.1
Style
Sensors
Type
Non-Reversing
Voltage
120-347 Volt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems

General Product Info

12-Digit UPC
783585256047
Color
White
Product Series
High/Low Bay PIR
Product UPC
78358525604

Dimensions

Height
3.1 Inch
Length
7.1 Inch
Width
5.7 in

Certifications and Compliance

Country of Origin
China
Features
  • Digital passive infrared sensor. Low profile design, no minimum load
  • Two (2) Built-in photocell for daylight harvesting
  • 120-347V AC, 1 relay
  • Supports mounting heights up to 45 ft for high bay configurations and between 8-16 ft for low bay configurations
