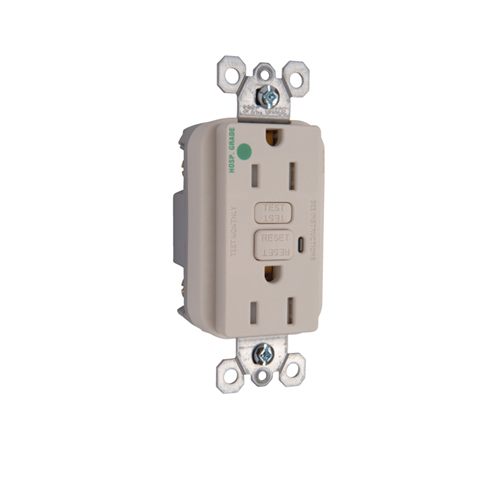

Product image for P&S 1595-HGTRLA GFCI RECEP HOSP TAMP RESIST 15A 125
Image thumbnail 0
Image thumbnail 1
Email

P&S 1595-HGTRLA GFCI RECEP HOSP TAMP RESIST 15A 125

Manufacturer: Pass & Seymour / Legrand | Catalog # 1595-HGTRLA | Cooper Electric Part # 870726
$54.42/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
From the innovator of the product category, comes a full range of Pass & Seymour GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. Features patented SafeLock™ Protection.if critical components are damaged and ground fault protection is lost, power to the receptacle is disconnected.

Technical Information

Amperage
15 Amp
Grade
Hospital
NEMA
5-15R
Style
Decorator
Type
Duplex
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007423075
Color
Light Almond
GTiN
00785007423075
Product UPC
78500742307

Dimensions

Depth
1.13 Inch
Height
4.2 Inch
Length
4.2 Inch
Width
1.72 in
Available Options
  • Hospital Grade Tamper-Resistant 15A Duplex GFCI, Gray
  • Hospital Grade Tamper-Resistant 15A Duplex GFCI, Light Almond
  • Hospital Grade Tamper-Resistant 15A Duplex GFCI, White
  • Hospital Grade Tamper-Resistant 15A Duplex GFCI, Black
  • Hospital Grade Tamper-Resistant 15A Duplex GFCI, Brown
  • Hospital Grade Tamper-Resistant 15A Duplex GFCI, Red
  • Hospital Grade Tamper-Resistant 15A Duplex GFCI, Ivory
Features & Benefits
  • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • Supplied with matching TP26 nylon wall plate.
  • Protects children: patented shutter system helps prevent improper insertion of foreign objects.
  • 10kA short circuit rating.
  • Ground screw has a back wire clamp for easy installation.
  • Extra-long strap.
  • For covering patents, see www.legrand.us/patents.
  • Two back wire holes per terminal.
  • 1/4\" thinner than competitors' GFCIs; leaves more room for wires in the box.
  • SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.
  • Meets 2008 National Electrical Code® Tamper-Resistant requirements.
  • Dual-direction test and reset buttons.
  • FSUL Listed (Federal Specification WC596).
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • Button colors match the device face.
  • Side or internal screw-pressure-plate back wire with #10 #14 AWG solid or stranded copper wire.
  • Class A rated GFCI.
  • Tri-drive screws.
  • High-impact-resistant thermoplastic construction.
  • Trip indicator light (red LED).
