ILSCO PBTD-12-350-M INSUL AL MECH (

Manufacturer: Ilsco | Catalog # PBTD-12-350-M | Cooper Electric Part # 867859
$598.85/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

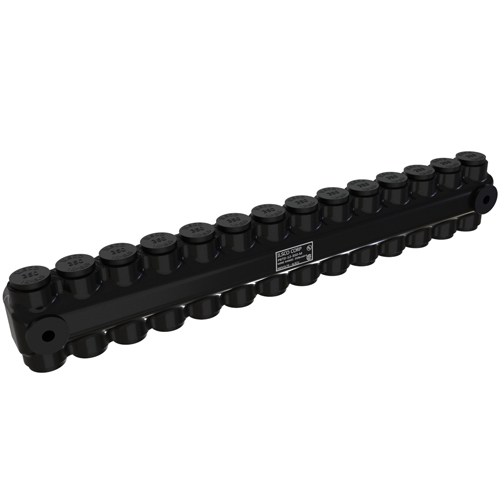

Nimbus Mountable Insulated Multi-Tap Connector Dual Side Entry, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,2 mounting hole(s), mounting hole spacing 15.028 in., UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 350 kcmil - 6 Str, Contains DE-OX®, 12 conductors, 12 ports/wireways, Plastisol insulation, Drive Type Main 5/16 Internal Hex, rated for 600 V, primary color Black, 1 poles,

Technical Information

Amperage
350 Amp
Applications
Mountable Insulated Multi-Tap Connector Dual Side Entry
Conductor Material
Aluminum,Copper
Conductor Type
Stranded
Connection Type
Mechanical
Material
Aluminum
Mounting Hole Size
0.321 in
Number of Conductors
12
Number of Holes
2 Hole
Number of Ports
12
TC Connection
Mechanical
Temperature Rating
90 degrees C
Type
PBTM:MOUNTABLE INS BLK
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Nimbus

General Product Info

12-Digit UPC
783669001044
Color
Black
Environmental Conditions
Cold temperature rated to -45C
Finish
Tin Plated
GTiN
00783669001044
Product UPC
78366900104
Weight
2.919 lb

Dimensions

Height
2.588 Inch
Length
16.42 Inch
Width
2.578 in
