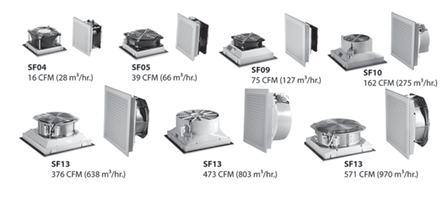

Product image for Hoffman SF1346433R IP54 13IN RVS
Email

Hoffman SF1346433R IP54 13IN RVS

Manufacturer: Hoffman | Catalog # SF1346433R | Cooper Electric Part # 866574
$776.45/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
IP54 13" Rvrs 571 Filter Fan 400V/460V 9011, Bulletin MCLF (Filter Fans), Size/Dims: 12.72x12.72x5.51

Technical Information

Amperage
0.27 Amp
Applications
Industrial
Current
.25/.27 Amp
Frequency
60 Hz
Max Temperature
140 degrees F
Min Temperature
5 degrees F
Number of Phases
3 Phase
Size
12.72x12.72x5.51 in
Standard
CE,CSA (fan Motor Only),IP54 Standard,IP55 Optional,Type 12,UL/cUL Recognized
Type
SF13 571 CFM (970 m3/hr.) Side-Mount Filter Fan
Voltage
400/460 Volt

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510202248
Finish
Black
GTiN
00783510202248
Product UPC
78351020224
Weight
10.14 lb

Dimensions

Depth
5.51 Inch
Height
12.72 Inch
Width
12.72 in
Features
  • Reverse airflow option on SF13 models available to push/pull air through higher static pressure
  • Similar cut-out sizes as other filter fan manufacturers
  • Optional thermostat available to save energy and extend service life
  • Simple snap-open grille for easy filter replacement
  • Enclosure side wall mounting
  • Click-fit design quickly installs into enclosure wall; no tools or screws required
  • Standard foam-in-place gasket
  • Terminal wire connections
Applications
  • Wind energy systems
  • Automotive assembly
  • Food and beverage process controls
  • Package handling equipment
  • Industrial automation
Accessories
  • Replacement filters
  • Thermostat
  • Rain shroud
Finish
  • RAL 7035 light-gray, UV-resistant plastic standard
  • RAL 9011 black, UV-resistant plastic optional
Specifications
  • Size rage from 4 in. (102 mm) to 13 in. (325 mm)
  • Service life hours from 40000 to 70000 hours
  • Operating temperature range fo -4 F/-20 C to 149 F/65 C
  • Free air flow from 16 CFM (28 m3/hr.) to 571 CFM (920 m3/hr.)
