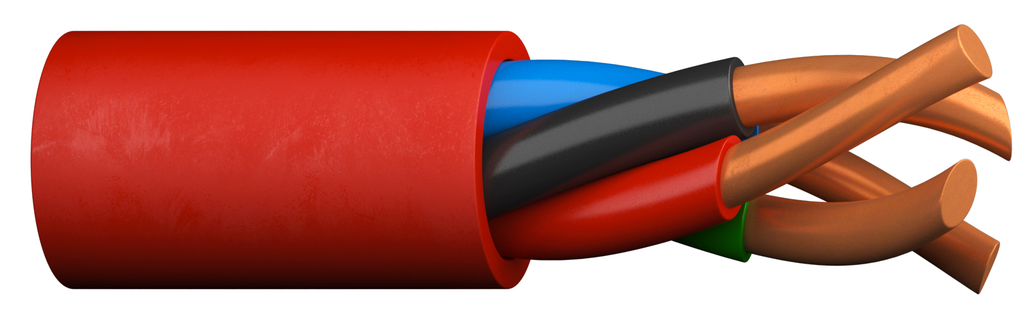

Product image for FIB C0473.41.03 2C/16 SBC UNSH MID-
Image thumbnail 0
Image thumbnail 1

Email

FIB C0473.41.03 2C/16 SBC UNSH MID-

Manufacturer: Carol Cable | Catalog # C0473.41.03 | Cooper Electric Part # 866282

$328.07/m (1000 ft)
ft
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Fire alarm systems have expanded from a rather simple and unsophisticated business configured upon large, electro-mechanical devices to one relying upon the most modern technologies of microprocessor and chip technology. More and more end users. industrial, commercial as well as consumer.are relying upon these emerging systems to protect both property and life. These systems are only as good as their weakest component, whether that component be a processor or interconnecting wire and cable. It is General Cable.s charter that all products supplied for use in these and any other systems shall be constructed of only the finest available materials, and provide the service and assurance that the end user not only needs, but requires. Aside from the quality materials used in these designs, specifiers and end users of Carol® Brand wire and cable products have come to expect that these cables are registered and certified with the leading regulatory agencies such as Underwriters Laboratories . and we haven.t let you down! These designs have proven themselves in the area of fire system security over time; all are fabricated with solid, bare copper conductors and insulations and jackets of premium-grade PVC. Offered both with and without shields, the former to protect these critical circuits from noise, these cables will provide the latest in available technology for the system installer and contractor. General Cable Carol Brand products are conveniently packaged in 1000' or 500' Iengths to assist the installer.

Technical Information

Applications
Addressable fire alarm systems; firm alarm systems; voice communications; smoke detectors; pull boxes; suggested voltafe rating: 300 volts
Conductor Size
16 AWG
Number of Conductors
2
Standard
CSA Ceritified (C22.2 60601-1, C22.2 60950-1, C22.2 21),ETL Listed,NAFTA,NEC (2011Article 517),NFPA (99 2012 Ed),UL Listed (60601-1, 60950-1, 1363A, 1449)
Type
Non-Reversing
Voltage
300 Volt

Manufacturer Information

Brand
General Cable
Sub Brand
Carol® Brand

General Product Info

12-Digit UPC
079407700806
GTiN
00079407700806
Product UPC
07940770080
Weight
1 lb

Dimensions

Height
9 Foot
Length
12 Foot
Width
12 ft

Certifications and Compliance

Country of Origin
USA
Applications
  • Addressable fire alarm systems
  • Fire alarm systems
  • Voice communications
  • Smoke detectors
  • Pull boxes
  • Suggested voltage rating: 300 volts
Jacket
  • PVC, red
  • Temperature range: -20°C to +75°C
Compliances
  • NEC Article 760 Type FPL
  • Suitable for use in the State of California
  • RoHS Compliant Directive 2015/863/EU (RoHS-3)
Packaging
  • Please contact Customer Service for packaging and color options
Conductor
  • 18 thru 12 AWG fully annealed solid bare copper per ASTM B3
Insulation
  • Premium-grade, coIor-coded polypropylene
  • Color code: See chart below
