ABB RBS14-8FLX HEAT-SHR LKG FORK TE

Manufacturer: ABB | Thomas & Betts | Catalog # RBS14-8FLX | Cooper Electric Part # 866037
$323.04/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

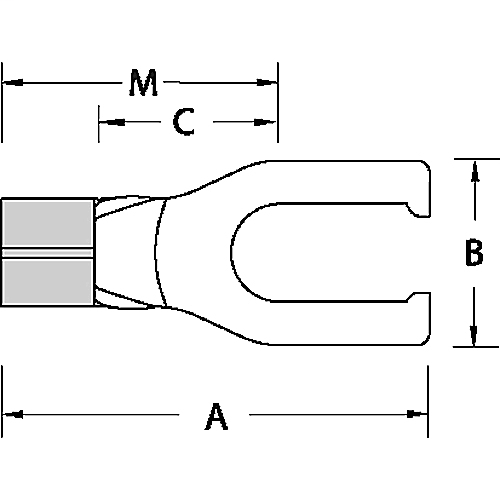

Heat Shrinkable Locking Fork Terminal, Length 1.350 Inches, Width .29 Inches, Maximum Insulation .200, Bolt Hole #8, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam
Conductor Size
16-14 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Type
Heat-Shrinkable Polyolefin
Material
Copper
Standard
UL E66716,UL E9809
Stud Size
#8
Temperature Rating
105 degrees C
Terminal Type
RAS
Type
Heat Shrinkable, Locking
Voltage
600 Volt
Wire Size
16-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210873640
Color
Blue
Finish
Tin Plated
GTiN
05414363933618
Product UPC
78621087364

Dimensions

Height
2-3/4 Inch
Length
1.35 Inch
Width
1.3 in
Features
  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
Notes
  • Not available on Mylar Tape.
Certifications
  • CSA
  • UL
