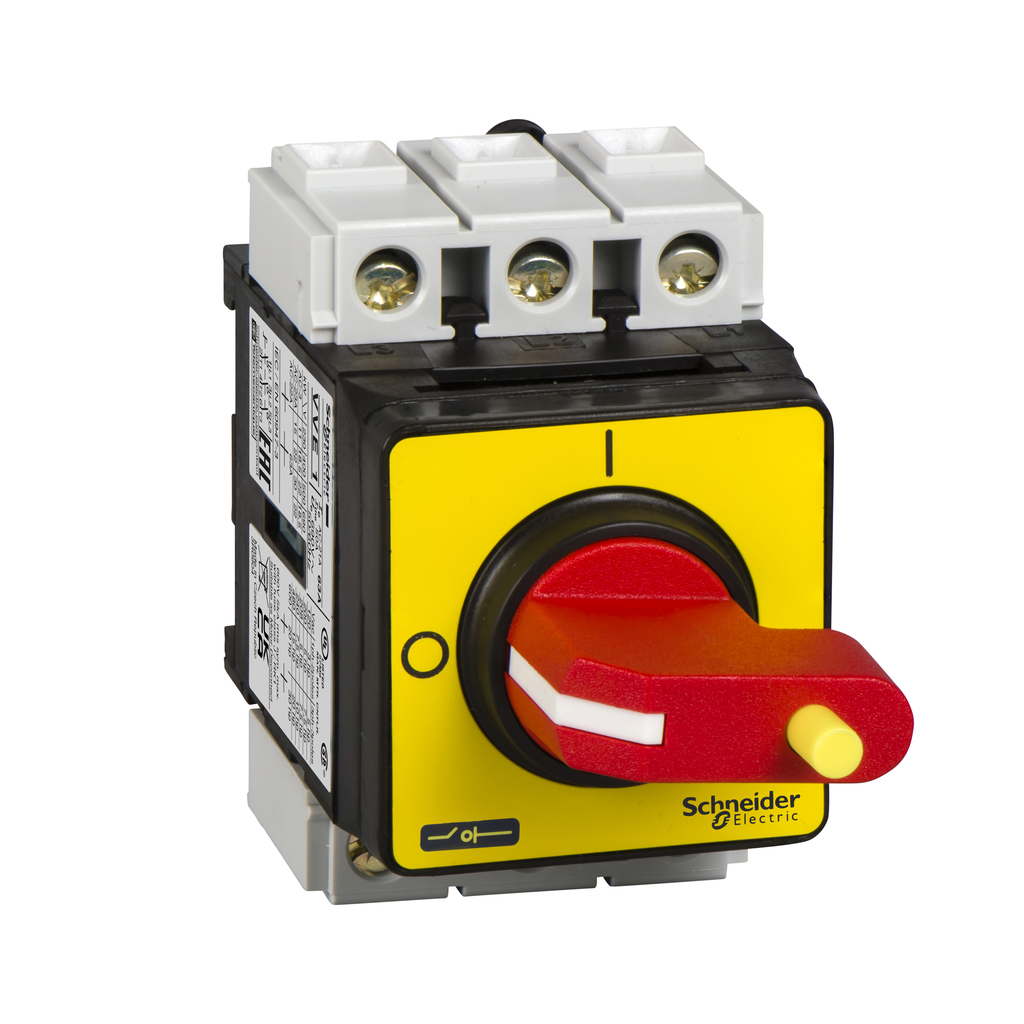

Square D VVE4 63A SW KIT W/RED/YELLOW

Manufacturer: Square-D / Schneider | Catalog # VVE4 | Cooper Electric Part # 866002
$445.50 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
VVE4 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric. Rated 80A 690V, it is used for main switching in motor applications 30KW@400V AC-23. Composed of a V4 switch body, and a red padlockable handle, and a yellow 45x45mm front plate. For mounting in modular panels, it ensures IP20 front face. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical Information

Actuator
Rotary handle;Red
Amperage
57 Amp AC-23 UE: 400 V
Applications
MAIN SWITCH DISCONNECTOR
Contact Configuration
3 NO
Enclosure
IP65-IP65 CONFORMING TO IEC 60529
Interrupt Rating
640 AIC
Net Weight
0.53 kg
Number of Poles
3 Pole
Operating Cycles
30000 CYCLES DC-1...5-30000 CYCLES AC-21
Operating Temperature
-4122 degrees F (-2050 degrees C)
Size
45 x 45 mm;4.33 in (110 mm);3.27 in (83 mm);2.36 in (60 mm)
Standard
IEC 60947-3
TC Connection
POWER CIRCUIT SCREW CLAMP TERMINALS 25-25 MMA SOLID-POWER CIRCUIT SCREW CLAMP TERMINALS 16-16 MMA FLEXIBLE - WITH CABLE END
Type
Emergency stop switch disconnector
Voltage
690 Volt
Wattage
18.5 kW 690 Volt AC-3)-15 kW 230...240 Volt AC-3)-22 kW 400...415 Volt AC-3)-30 kW 500 Volt AC-3)-30 kW 690 Volt AC-23 Amps)-37 kW 500 Volt AC-23 Amps)-18.5 kW 230...240 Volt AC-23 Amps)-30 kW 400...415 Volt AC-23 Amps)

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS

General Product Info

12-Digit UPC
785901291992
Environmental Conditions
OPEN
GTiN
03389110553147
Product UPC
78590129199
Weight
1.17 lb

Dimensions

Depth
110 mm
Height
83 mm
Warranty Length
18 mth
Width
60 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,GL,UKCA,UL
Country of Origin
Czech Republic
Compatible Products
  • VZ7
  • VZ12
  • VZ20
  • VZ15
  • VZ4
Cross Sell Products
  • VZ9
