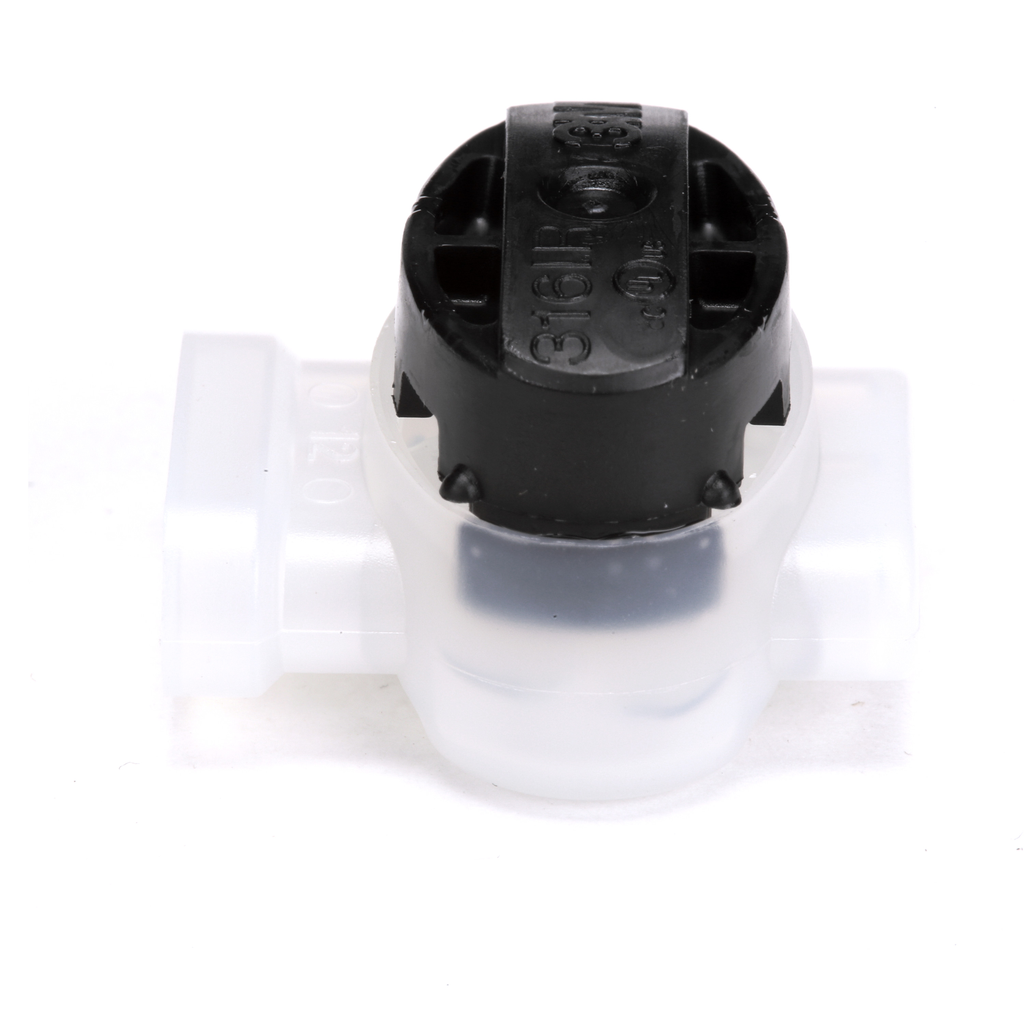

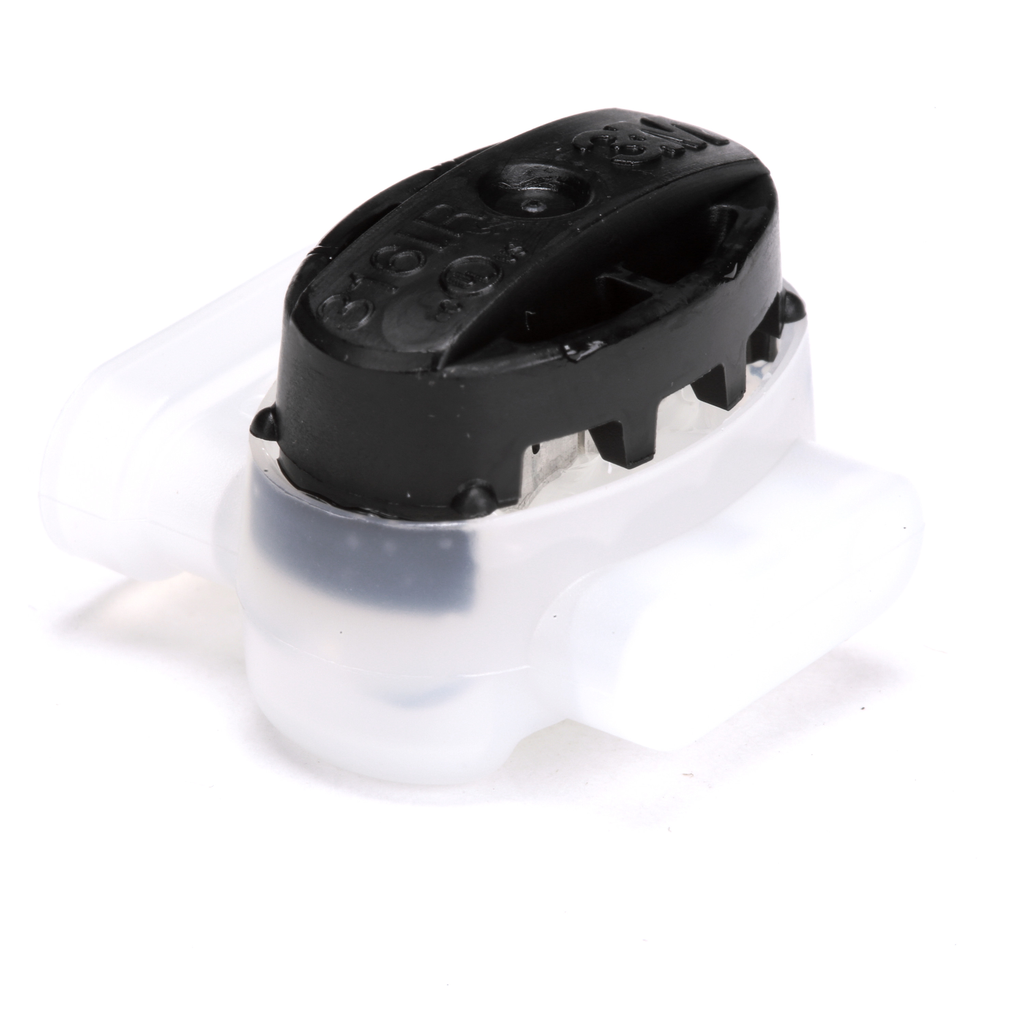

3M 316-IR BAG 30/Bag Low Voltage Irrigation Connector (7000058271)

Manufacturer: 3M | Catalog # 7000058271 | Cooper Electric Part # 86505
$2.74/ea
ea
Order in multiples of 30 (pack qty)
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
3M™ Scotchlok™ Electrical Insulation Displacement Connector electrically connects a (tap) wire end to a through (run) wire, and insulates the connection. It has a maximum insulation O.D. diameter of 0.120 inches (3.05 mm) and an operating temperature of 221 degrees Fahrenheit (105 degrees Celsius). The suggested application tool for this connector is the 3M™ Scotchlok™ Crimping Tool, E-9BM.

Technical Information

Conductor Size
16 AWG
Connection Type
Pigtail
Insulation Material
Nylon
Material
Nylon
Max Operating Temperature
105.0 degrees C
Size
22 - 16 AWG
TC Connection
Pigtail

Manufacturer Information

Brand
Scotchlok

General Product Info

12-Digit UPC
054007504191
Color
Black,White
GTiN
00054007504191
Product Type
Connectors
Product UPC
05400750419

Certifications and Compliance

Country of Origin
USA
Features
  • Mineral oil-based grease creates a moisture-resistant seal

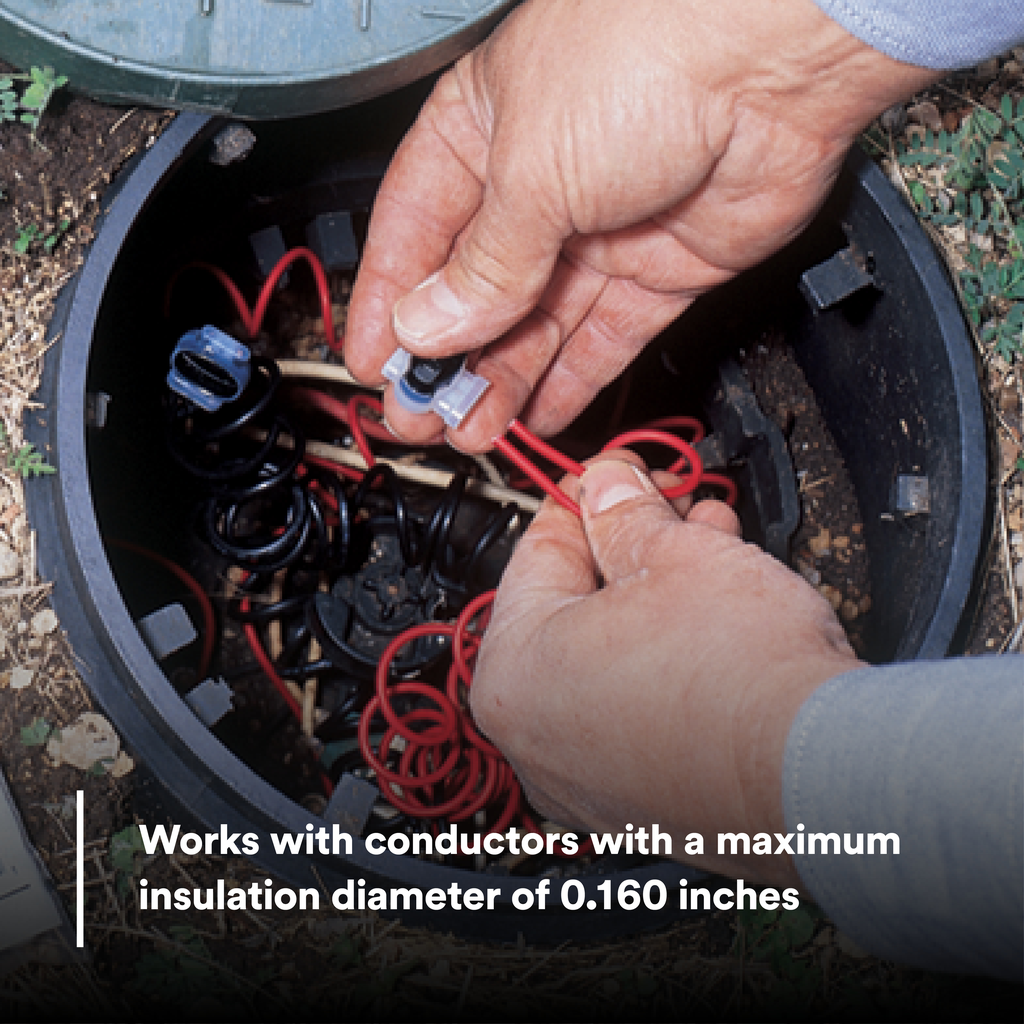

  • Ideal for low energy underground circuit wires, sprinkler systems, irrigation and landscape lighting
  • Accommodates 16-14 AWG solid/stranded, 12 stranded (outer) & 18 solid/stranded, 20 stranded (inner)
  • C UL Listed and RoHS 2011/65/EU Compliant
  • Operating temperature 221F (105C)
  • 600 volts maximum
