Thomas & Betts RAD1827 .85 Inch Length 22-18 AWG Wire Range .187 Inch Tab Size Insulated Vinyl Female Disconnect

Manufacturer: ABB | Thomas & Betts | Catalog # RAD1827 | Cooper Electric Part # 862620
$75.09/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

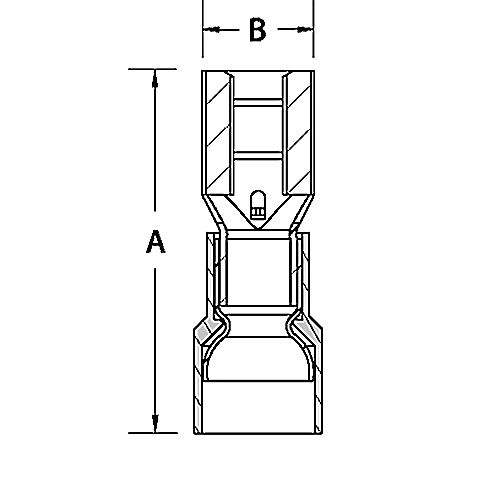

Vinyl-Insulated Female Disconnect, Length .85 Inches, Width .23 Inches, Maximum Insulation .150, Tab Size .187x.020 Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated, 1,000 Pack

Technical Information

Insulation Material
Vinyl
Insulation Type
Insulated Vinyl
Material
Brass
Standard
UL E66716
Tab Size
4.8 x 0.5 mm
Temperature Rating
105 degrees C
Type
Flat, Insulated
Voltage
600 Volt

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210815718
Color
Red
Finish
Tin Plated
GTiN
05414363158066
Product UPC
78621081571
Features
  • Quick, reliable method of connection to terminal blocks and boards without the use of tools. Unique construction of the female disconnect offers long-term dependability.
Notes
  • Bulk catalog numbers can be put on Mylar Tape for reel-fed applications (i.e. 12050 tool and application dies). Please add the suffix M for Mylar tape.
