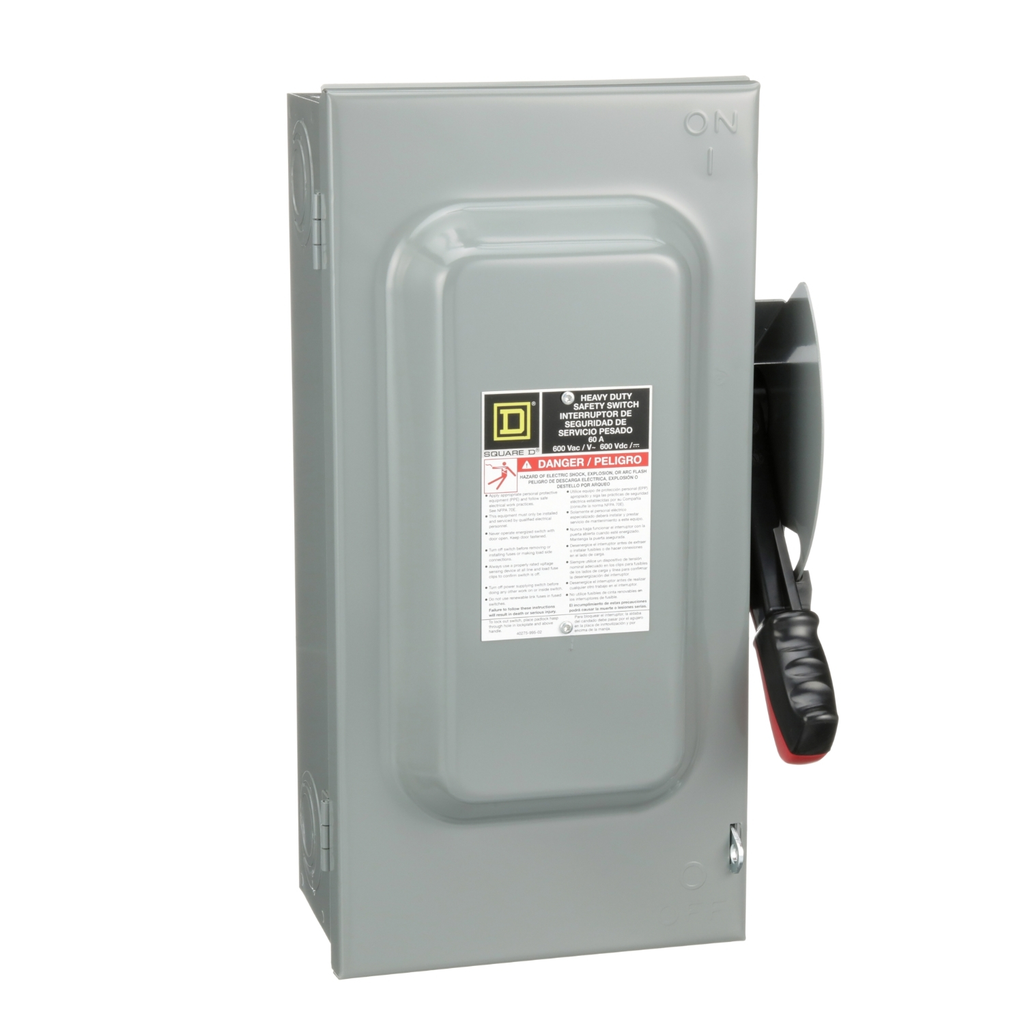

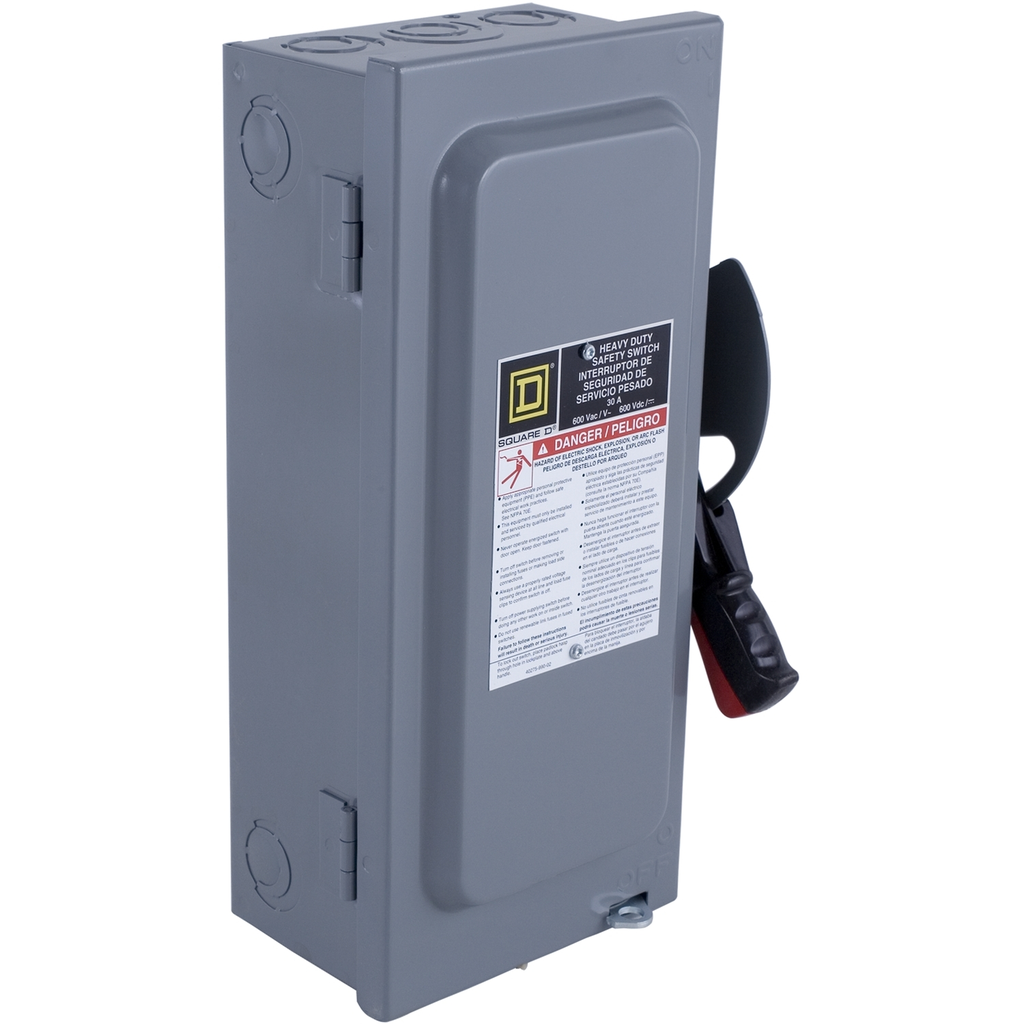

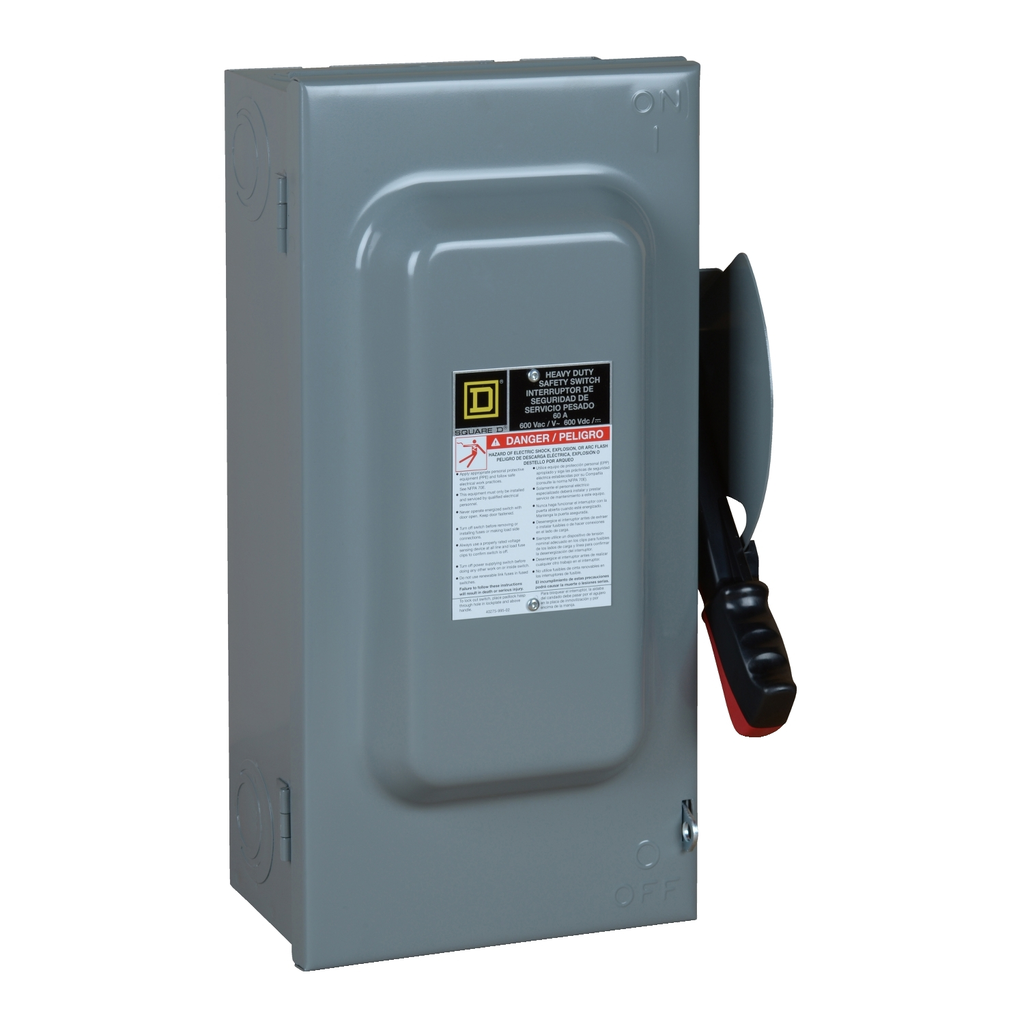

Square D VH362 600V 60A 3-Pole Class H/J/K/R Fusible Heavy Duty Safety Switch w/ Viewing Window

Manufacturer: Square-D / Schneider | Catalog # H362 | Cooper Electric Part # 86212
$638.00/ea
ea
Log in or register to view your price, purchase history, and more!
Fusible Non-Fusible
2P 3P
2-Wire 3-Wire 4-Wire
Type 1 Indoor Type 3R Rainproof
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
0 available

For Delivery

Not in local stock *
Check another branch
*Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 Product Brochure
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 60A and is UL listed with a NEMA 1 rating of protection. This 3-pole switch has operational voltage ratings of & 600VAC/DC. The enclosure is made of steel and has no neutral installed. This fusible disconnect has a short circuit current rating of 10kA to 200kA. This safety switch accepts H,J,K,L,Rfuse types and is surface mounted. This switch comes with an 18 months warranty.

Technical Information

Action
SINGLE THROW
Amperage
60 Amp
Applications
HEAVY DUTY
Conductor Size
12-3 AWG (AL)/14-3 AWG (CU)
Current
60 Amp
Disconnect Type
Fusible disconnect NULL
Duty Rating
Heavy duty NULL
Enclosure
1
Enclosure Material
Stainless Steel
Enclosure Rating
NEMA 1 steel
Fuse Type
H Or K,R Or J
Line Rated Current
60 A
Material
Steel
Mounting Type
Surface
NEMA Size
1
Net Weight
7 kg
Number of Phases
3 Phase
Number of Poles
3 Pole
Short Circuit Current
10 kA
Size
10.5 IN,17.5 IN,6.38 IN
TC Connection
AWG 14...AWG 3 COPPER-AWG 12...AWG 3 ALUMINIUM,LUGS
Type
SINGLE THROW SAFETY SWITCH,FUSIBLE DISCONNECT
Voltage
600 Volt
Wire Size
AWG 14...AWG 3 copper;AWG 12...AWG 3 aluminium

Manufacturer Information

Brand
Square D
Sub Brand
HEAVY DUTY

General Product Info

12-Digit UPC
785901482147
Environmental Conditions
GENERAL PURPOSE (INDOOR)
GTiN
00785901482147
Product UPC
78590148214
Weight
15.43 lb

Dimensions

Depth
6.38 Inch
Height
17-1/2 Inch
Warranty Length
18 mth
Width
10.5 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL Listed File E2875
Country of Origin
USA
Motor Power Hp
  • 15 hp at 480 V AC 50-60 Hz for 3 phase motors
  • 30 hp at 480 V AC 50-60
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.7164588650807795
  • 0.7 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 16 kg CO2 eq.
  • 15.75416078103353
Ue Rated Operational Voltage
  • 600 V AC/DC
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 37 kg CO2 eq.
  • 37.36157145275462
Nema Degree Of Protection
  • NEMA 1 steel
Accessories
  • EIK1
  • EIK2
  • RFK06H
  • SN0610
  • GTK0610
  • FPK0610
  • LOGK2
Short Circuit Current
  • 10 kA for H or K
  • 200 kA for R or J
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 13 kg CO2 eq.
  • 12.992332388513393
Accessory Products
  • EIK1
  • EIK2
  • RFK06H
  • SN0610
  • GTK0610
  • FPK0610
  • LOGK2
Carbon Footprint Of The Distribution Phase A4
  • 2.037750237975905
  • 2 kg CO2 eq.
Tightening Torque
  • 50-50 lbf.in (AWG 3)
  • 45-45 lbf.in (AWG 6...AWG 4)
  • 40-40 lbf.in 8.367-8.367 mm² (AWG 8)
  • 50-50 lbf.in 2.06-5.261 mm² (AWG 14...AWG 1
AWG Gauge
  • AWG 14...AWG 3 copper
  • AWG 12...AWG 3 aluminium
Fuse Type
  • H or K
  • R or J
