SQUARED RSB2A080P7 interface plug-i

Manufacturer: Square-D / Schneider | Catalog # RSB2A080P7 | Cooper Electric Part # 861558
$6.04/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

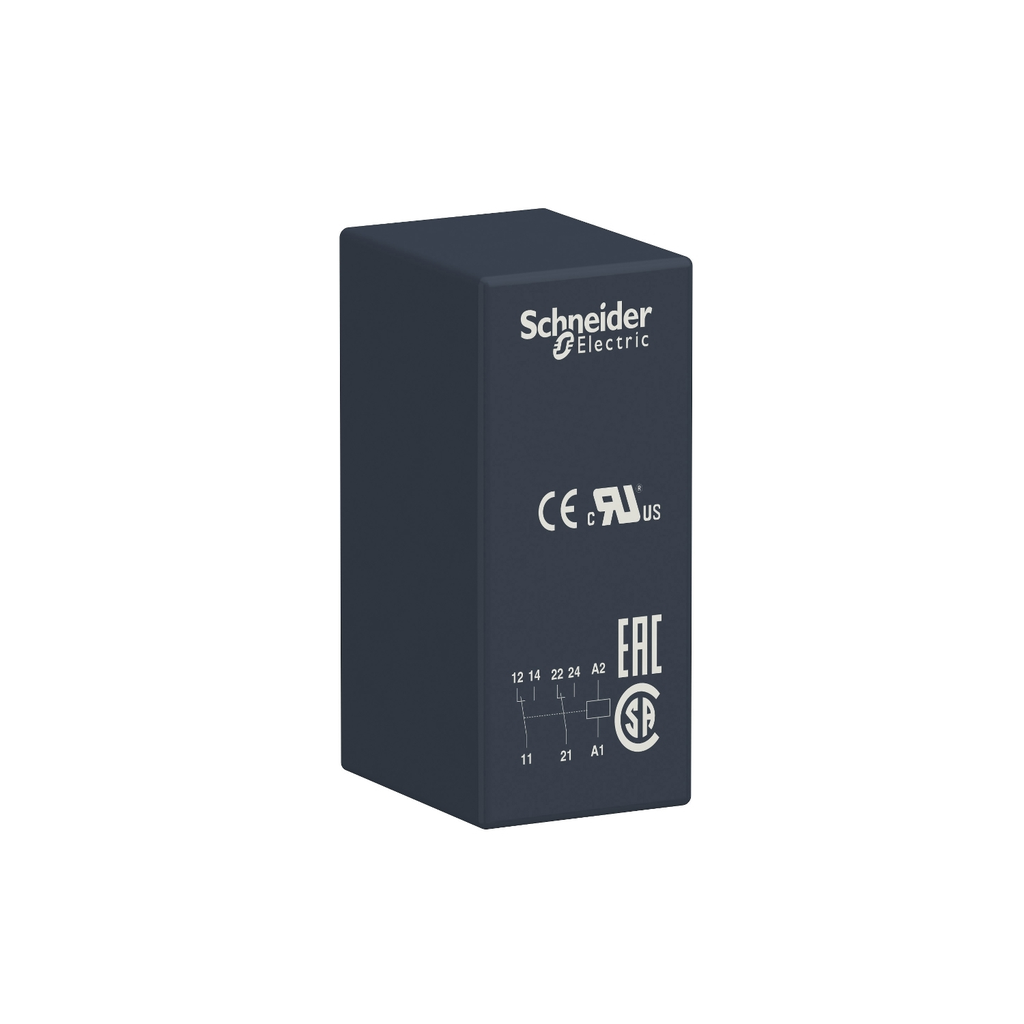

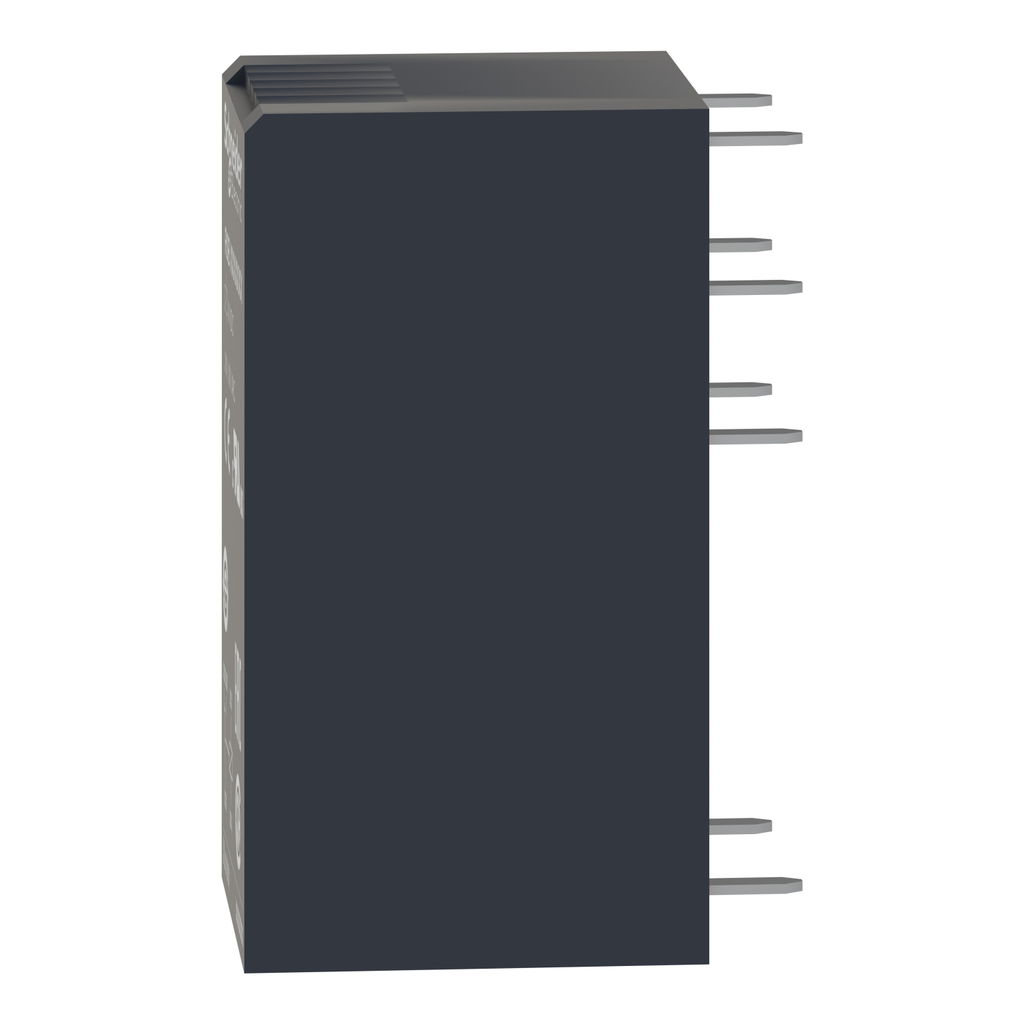

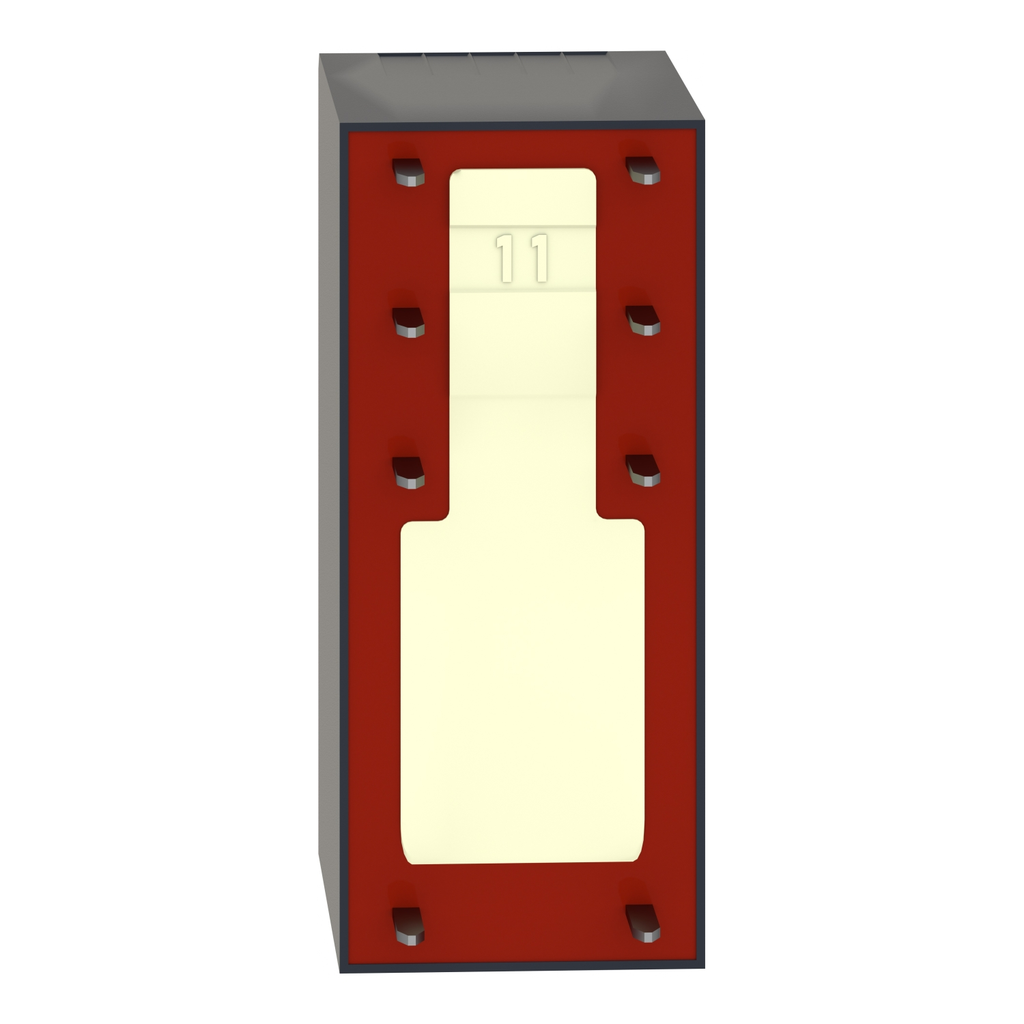

This Harmony RSB interfacing plug-in relay has a control coil voltage of 230V AC and has 2 changeover contacts double pole double throw with a rating of 8A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
4 Amp AC-1/DC-1) NC IEC-8 Amp AC-1/DC-1) NO IEC,8 Amp 250 V AC-8 Amp 28 V DC
Contact Configuration
2 C/O
Contact Material
Silver Alloy
Control Type
Without push-button
Dielectric Strength
1000 V
Enclosure
IP 40 CONFORMING TO IEC/EN 60529
Line Rated Current
8 A
Net Weight
0.014 kg
Operating Cycles
<= 18000 Cycles/hour No-load,<= 600 Cycles/hour Under Load
Operating Temperature
-40 TO 158F (-40 TO 70C)
Resistance
38500 OHMS
Standard
CSA C22.2 No 14,IEC 61810-1,UL 508
Storage Temperature
-40-85 degrees C
TC Connection
PRINTED CIRCUIT BOARD (PCB)
Type
Plug-in relay;Flat (PCB type)
Voltage
345 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
RSB

General Product Info

12-Digit UPC
389110256614
GTiN
03389110256611
Product UPC
78590161817
Weight
0.014 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,EAC,UL
Country of Origin
Austria
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • RSZE08P
Cross Sell Products
  • RSB2A080P7PV
  • RSB2A080B7
  • RSB2A080BD
