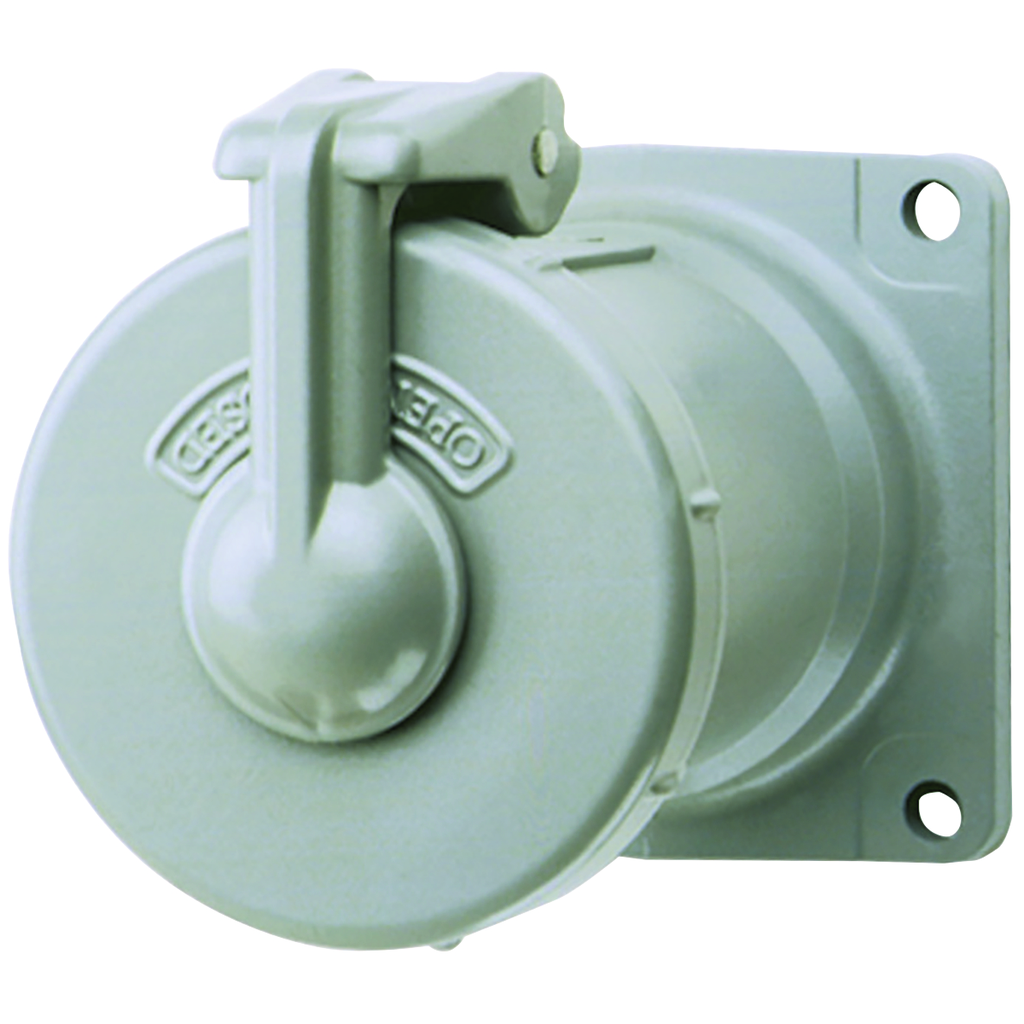

Product image for Killark VR1042 100A 3 Pole 4 Wire Receptacle Assembly
Email

Killark VR1042 100A 3 Pole 4 Wire Receptacle Assembly

Manufacturer: Killark | Catalog # VR1042 | Cooper Electric Part # 86129
$1,051.98/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
100A 3 Pole 4 Wire Receptacle Assembly

Technical Information

Amperage
100 Amp
Applications
Heavy Duty Industrial
Conductor Size
4-2 AWG
Frequency
50-400 Hz
Material
Aluminum
Number of Poles
4 Pole
Number of Wires
3 Wire
Size
4-9/16" H x 4-1/4" W x 5-3/8" D
Standard
CSA,UL
Style
Style II
Type
Aluminum single gang round receptacle cover
Voltage
600//250 VAC//VDC
Wire Size
Regular stranding: 4-2 AWG; extra flex: 4-2 AWG

Manufacturer Information

Brand
Killark Electric
Sub Brand
Versamate®

General Product Info

12-Digit UPC
783936834863
Color
Gray
Finish
Baked Epoxy
GTiN
00783936834863
Product UPC
78393683486

Dimensions

Height
4-3/4 Inch
Length
5.37 Inch
Width
4.25 in

Certifications and Compliance

Country of Origin
USA
Features
  • Patented Breech-Lock cap serves as both flip lid and screw cover.
  • Patented notch in cap arm holds cap open for easy plug insertion or maintenance.
  • Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened.
  • Patented pin design uses slotted spring clip which avoids excessive wear while providing continuous electrical pin to sleeve contact.
  • Increased Safety type box terminals with gripper ribs securely clamp around conductors.
  • Boxes come with a green grounding screw.
  • VersaMate® metallic pin & sleeve plugs, receptacles, and in-line connectors are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers and similar apparatus. Suitable for indoor and outodoor use, as well as applications that include wet, cold, hosedown, hazardous and corrosive environments. Configurations are also available in reverse-service and polarized orientations.
