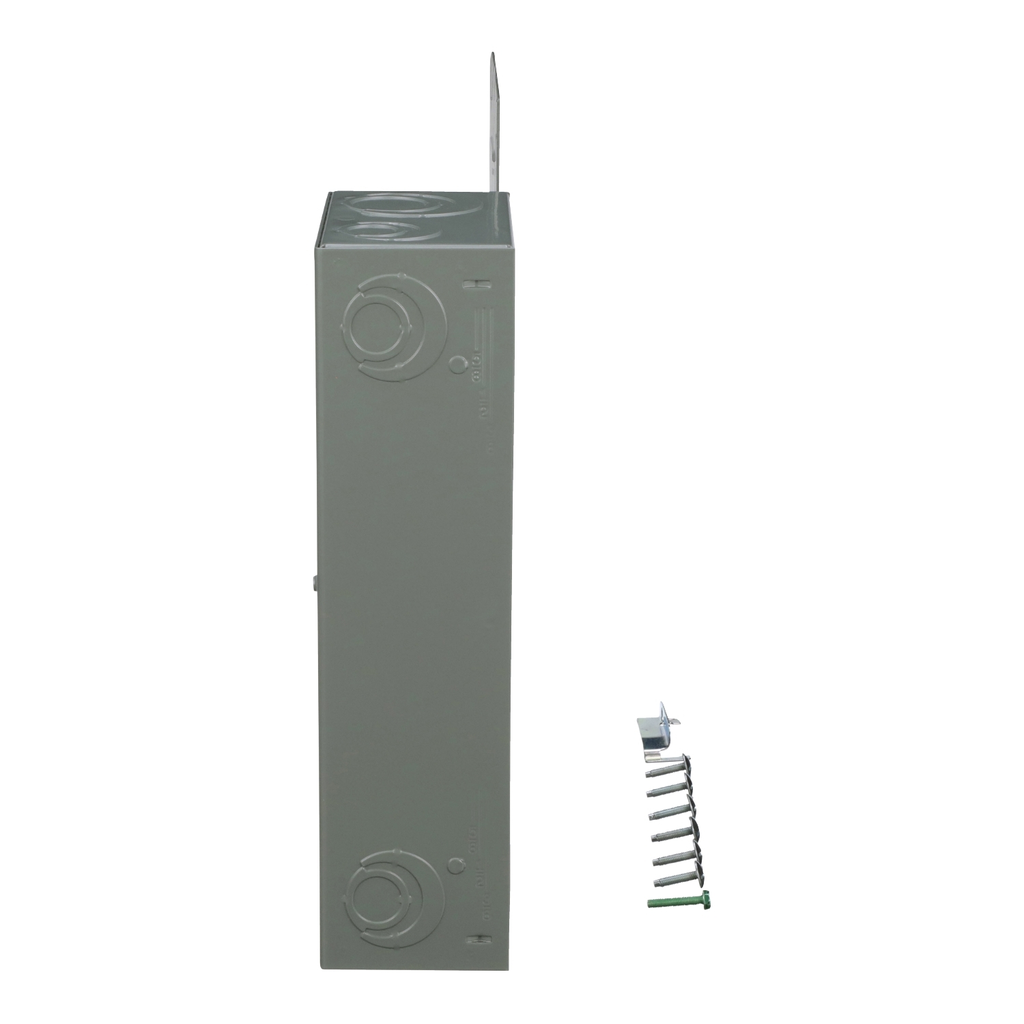

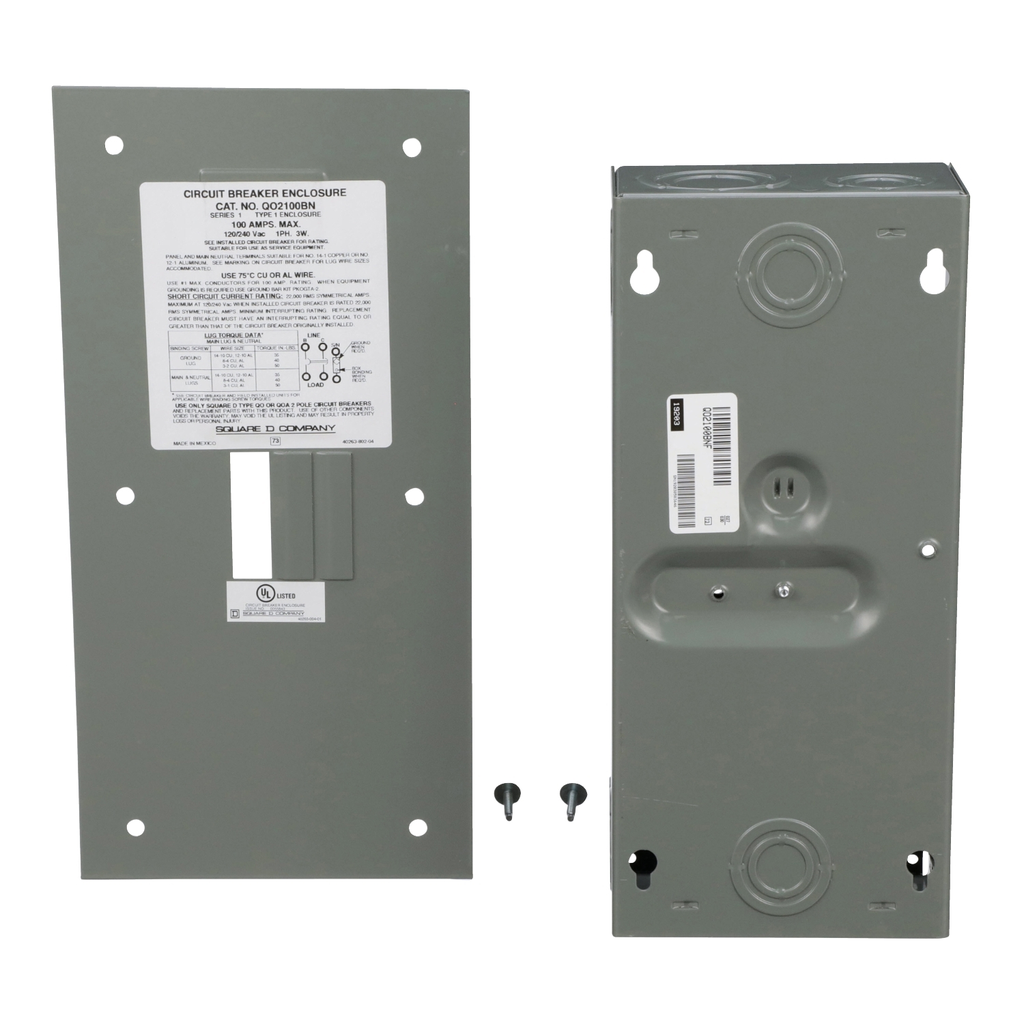

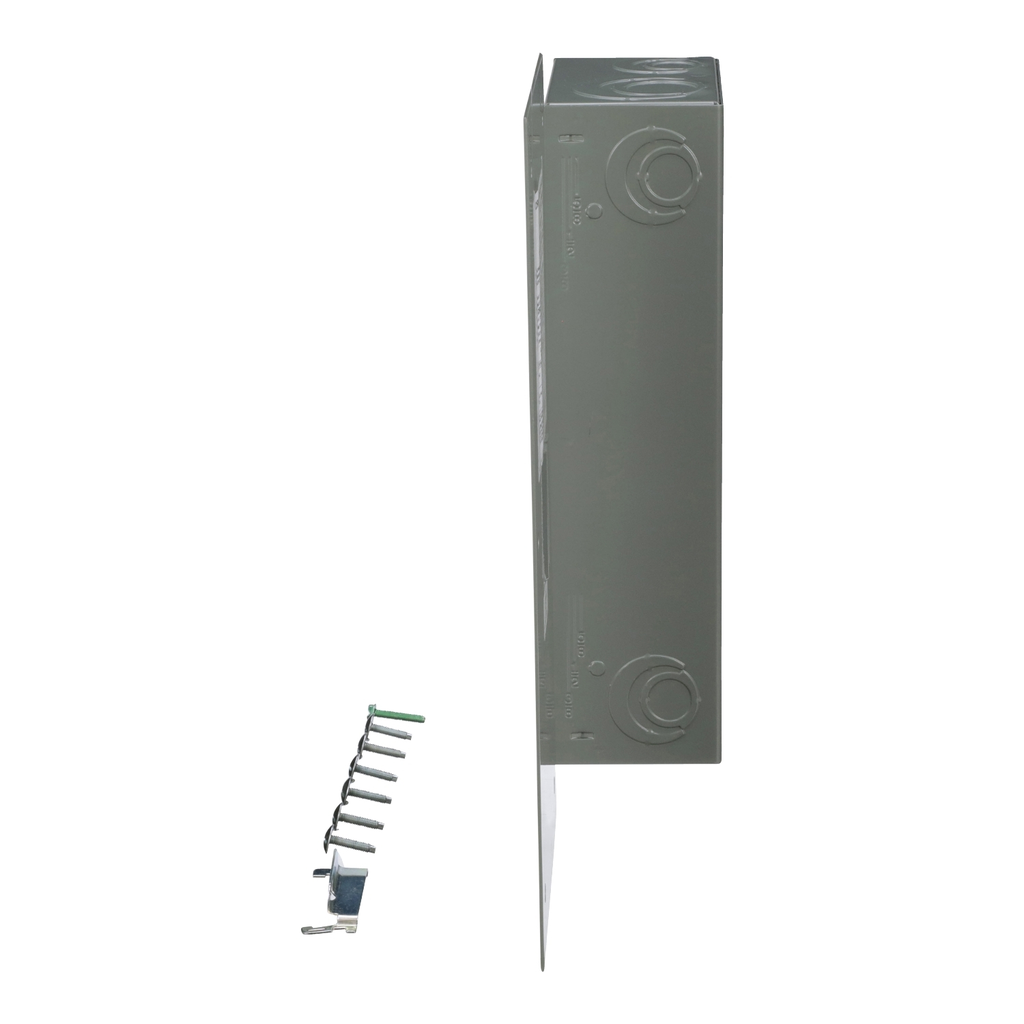

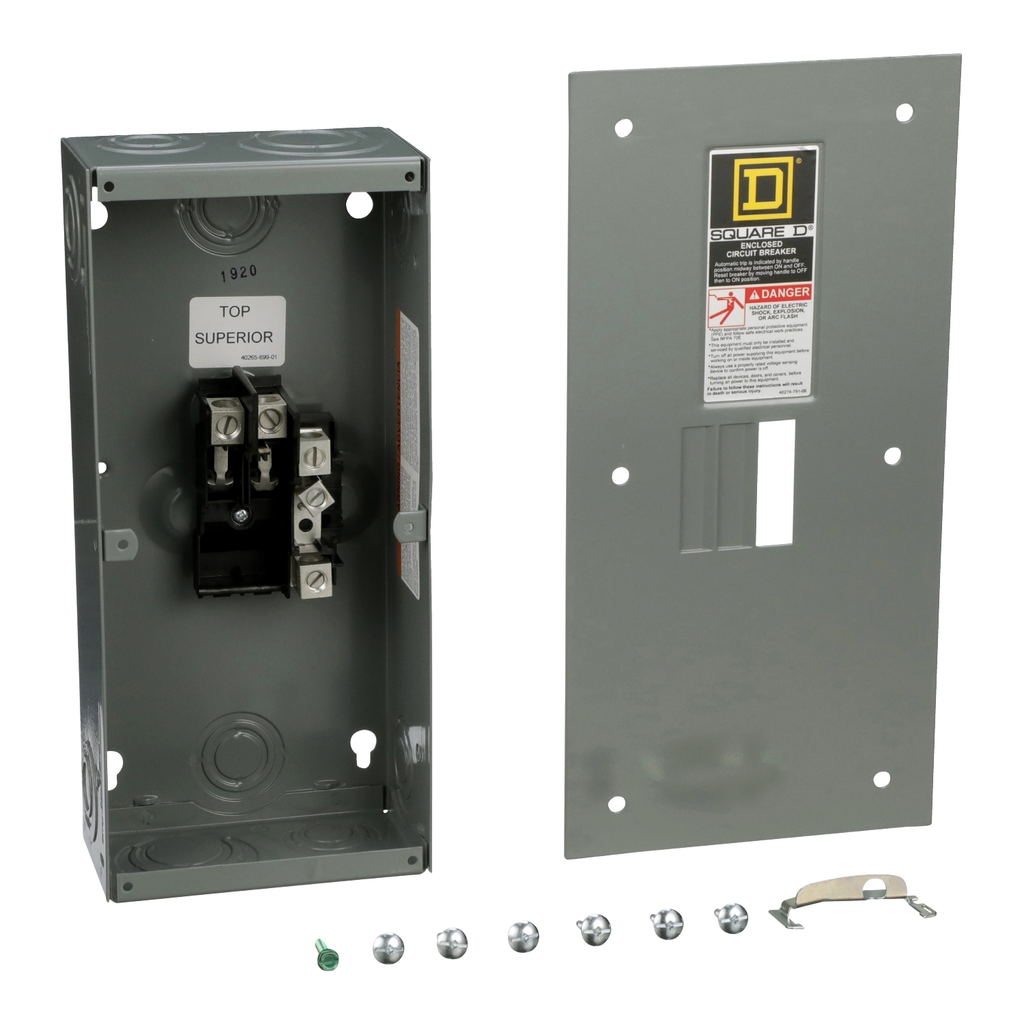

Square D QO2100BNF 100 Amp 5.88 x 3.38 x 13.12 Inch Steel NEMA 1 Flush Mount Circuit Breaker Enclosure

Manufacturer: Square-D / Schneider | Catalog # QO2100BNF | Cooper Electric Part # 86070
$83.00/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
9 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
Enclosed Devices are designed for reliability and safety. Indoor NEMA type 1 and outdoor NEMA type 3R options are available. Enclosed Devices provide an easy installation for residential and commercial air conditioning systems and other single phase applications. Metallic and non-metallic enclosure options are available as well. This NEMA 1 enclosure is 1 phase and 2 spaces. It is rated at 100A and has a flush cover. This product is UL listed. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

Technical Information

Amperage
100 Amp
Applications
QO
Conductor Size
14-1 AWG (AL)/12-1 AWG (CU)
Cover Type
Flush Cover
Current
100 Amp
Enclosure
1
Enclosure Material
Steel
Enclosure Type
Enclosure
Interrupt Rating
22 kAIC
Line Rated Current
100 A
Material
Copper
NEMA Size
1
Number of Circuits
2
Number of Phases
1 Phase
Number of Spaces
2
Short Circuit Current
22 kA
Surface Finish
Baked enamel Gray
TC Connection
AWG 14...AWG 1 COPPER-AWG 12...AWG 1 ALUMINIUM,LUGS
Type
Enclosure;Enclosure
Voltage
240 VAC
Wire Size
AWG 14...AWG 1 copper;AWG 12...AWG 1 aluminium NULL

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901051725
Finish
Baked Enamel
GTiN
00785901051725
Product UPC
78590105172

Dimensions

Depth
3.4 Inch
Height
333 mm
Length
3.4 Inch
Warranty Length
18 mth
Width
149 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • PK2MB
  • QO120
  • QOFP
  • QO115
  • PK6FL
  • QO230
  • LK70AN
  • QO115CAFI
  • QO220
  • QO120DF
  • QO120CAFI
  • QO240
  • QO250
  • QO260
  • QO120GFI
  • QO215
  • QO225
  • QO115DF
  • QO130
