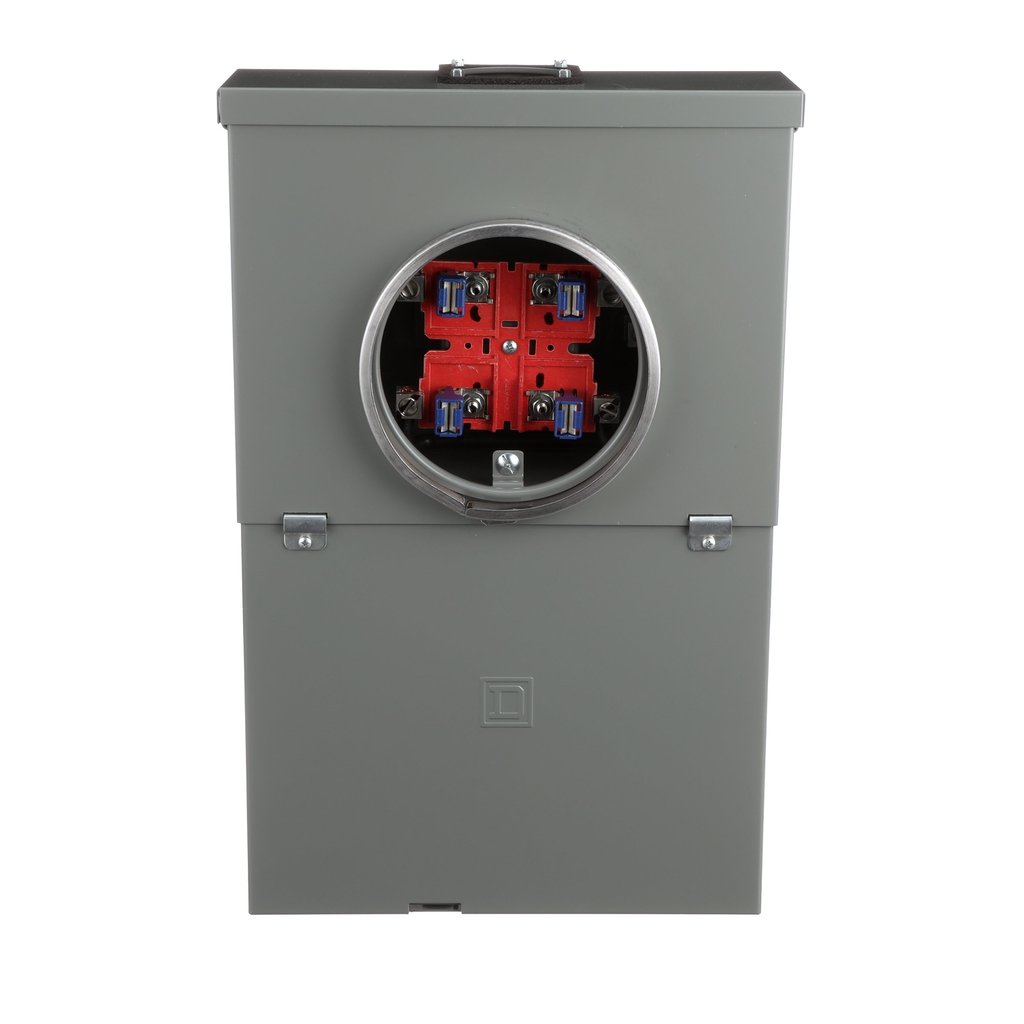

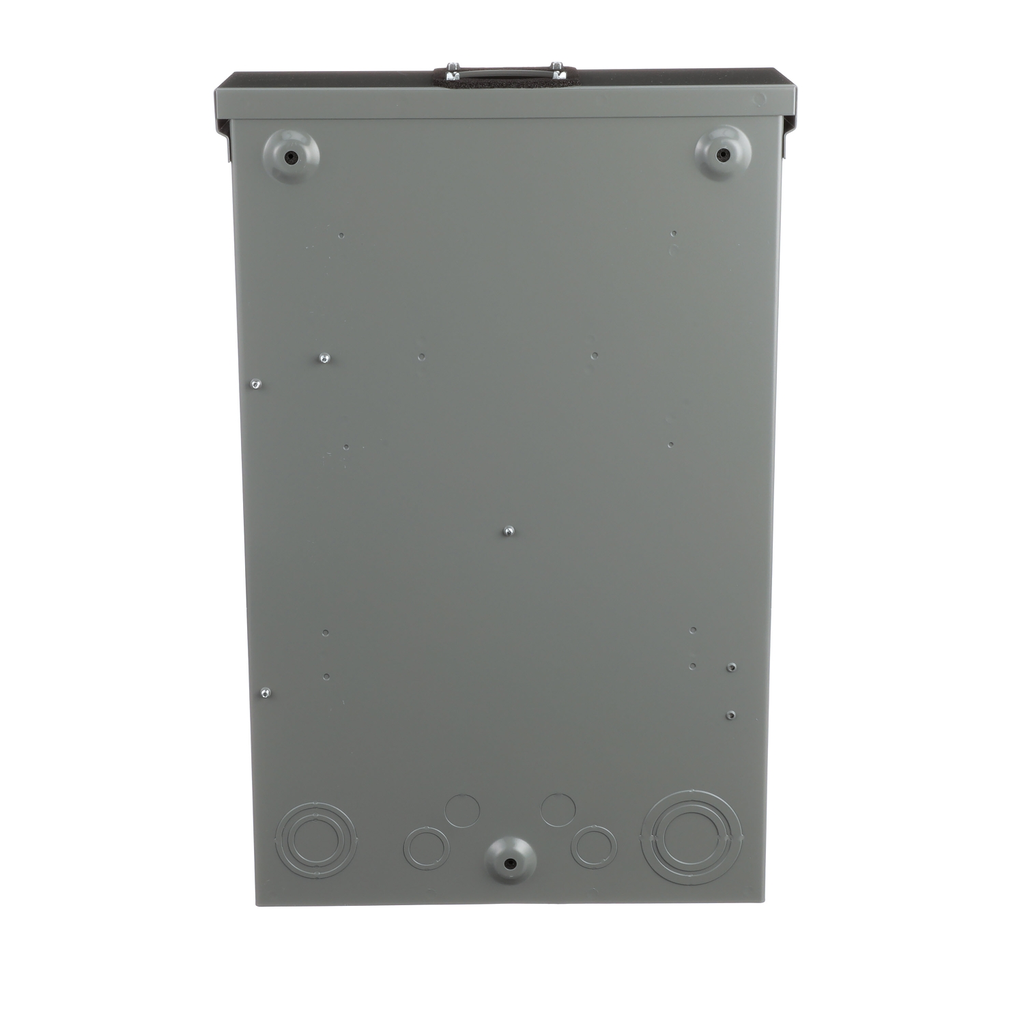

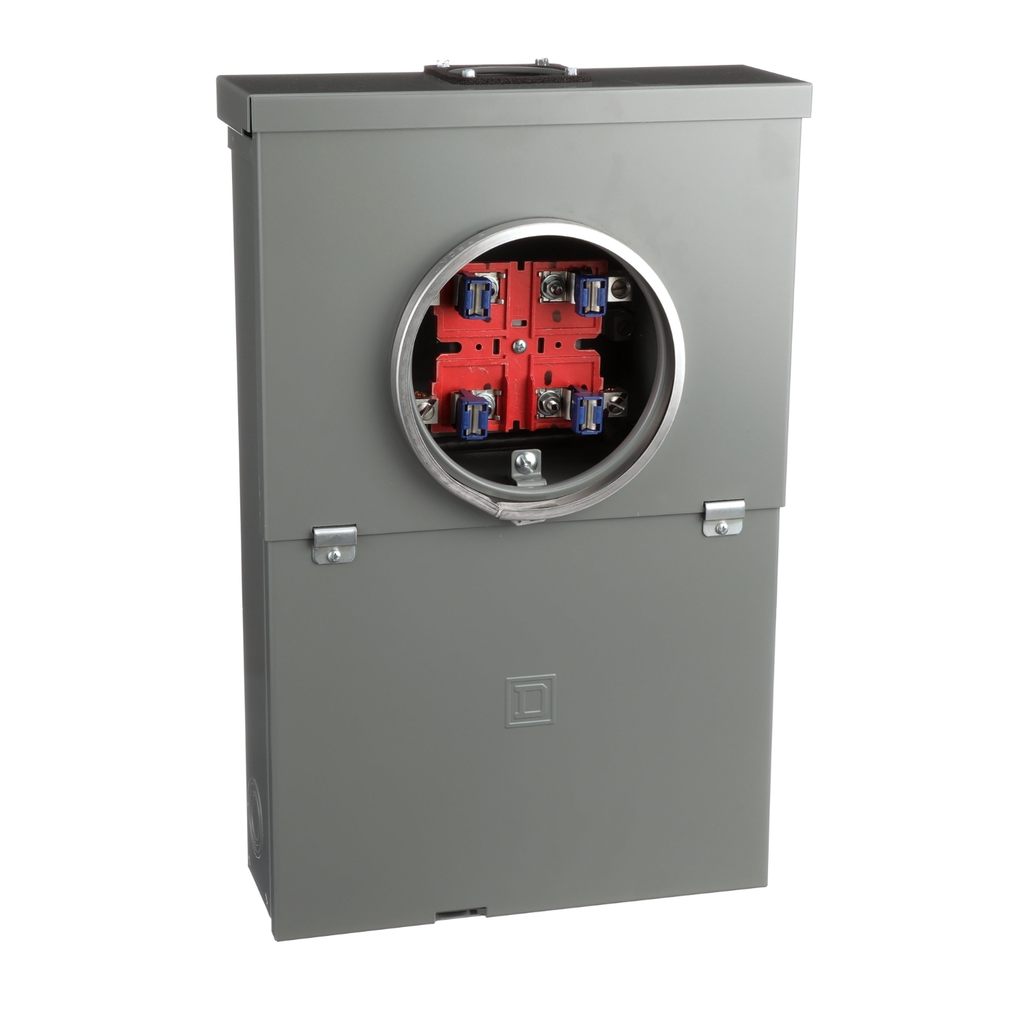

Square D SO1020VP 100 Amp Overhead/Underground Service Ring Type Meter Socket

Manufacturer: Square-D / Schneider | Catalog # SO1020VP | Cooper Electric Part # 860429
$567.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
Square D™ Homeline, SO1020VP, All-in-one Ring T-surface OH .Comes with Factory installed Service disconnect. Provided with no bass, UL listed. 18 months warranty is included.

Technical Information

Amperage
100 Amp
Cable Entry
OH
Conductor Size
6-1 AWG
Enclosure
NEMA 3R
Line Rated Current
100 A
Mounting Type
Surface
Number of Circuits
20
Number of Spaces
10
Short Circuit Current
10 kA
Short Circuit Current Ratng
10 kA
Type
ALL-IN-ONE,RINGED
Wire Size
AWG 6...AWG 1 aluminium/copper)line side;AWG 8...AWG 4 aluminium/copper)service ground

Manufacturer Information

Brand
Square D
Sub Brand
HOMELINE

General Product Info

12-Digit UPC
785901396420
GTiN
00785901396420
Product UPC
78590139642

Dimensions

Depth
5.41 Inch
Height
41.18 Inch
Warranty Length
18 mth
Width
18.76 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 5J
  • HOM2175SB
  • QOM2100VH
  • HEPD25
  • HOM220GFI
  • HOMFP
  • A125
  • HEPD50
  • HOM120
  • A150
  • HEPD80
  • HOM120DF
  • A200
  • HOM115CAFI
  • A250
  • PK15GTA
