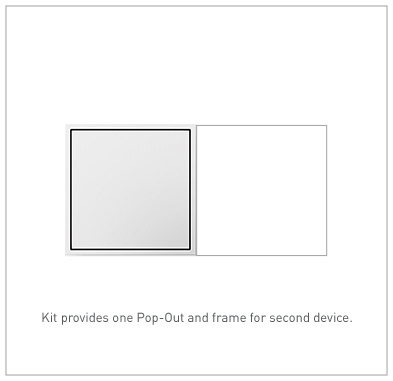

Product image for Pass & Seymour ARPTR152GW2 2-Gang 15A 125V Triplex Popout Kit - White
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Pass & Seymour ARPTR152GW2 2-Gang 15A 125V Triplex Popout Kit - White

Manufacturer: Legrand / Adorne | Catalog # ARPTR152GW2 | Cooper Electric Part # 860147
$79.88 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual CAD Drawing #1 Product Catalog Page Product Brochure
The cleverest way to add power and style, the Pop-Out Outlet extends to offer 3-plug access, then uniquely disappears back into the wall with a simple push when not in use. Made exclusively for use with screwless Wall Plates from the adorne® Collection, sold separately.

Technical Information

Amperage
15 Amp
Applications
Residential Applications
Conductor Size
14-10 AWG
Connection Type
Back Wire,Internal Pressure Plates,Side
Indoor Outdoor
Indoor
Material
Thermoplastic
Mounting Type
Box
NEMA
15A
Number of Gangs
1 Gang
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Outlet Type
Indoor,Pop-Out,Residential,Tamper-Resistant
TC Connection
Side and Back Wire
Type
Pop-Out Outlet 2-Gang, White
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Adorne

General Product Info

12-Digit UPC
786776178623
Color
White
Finish
Matte
GTiN
00786776178623
Product UPC
78677617862

Dimensions

Depth
2.6 Inch
Height
4.7 Inch
Warranty Length
Limited Lifetime
Width
4.8 in

Certifications and Compliance

Country of Origin
China
Getting Started
  • Innovative snap-in system ensures easy installation.
  • This item requires an adorne Wall Plate. Shop now to choose from dozens of finishes including a variety of luxurious metals, or order in your own custom finish.
  • Time to install: 15 minutes or less.
  • The Pop-Out Outlet comes with a special frame for mounting and requires a deep electrical outlet (22.5 cubic inches). It does not require new wires for typical installation.
Usage
  • Perfect anywhere youd like to hide outlets when not in use and enjoy the additional capabilities of three plugs when they are.The adorne Pop-Out Outlet features three plugs for added power and disappears into the wall with a simple push when not needed.This 2-gang version allows for pairing with another adorne switch, dimmer or outlet.With a patented shutter system, plugs are tamper-resistant to keep children protected.This item is also available in a 1-Gang 15A or 1-Gang 20A option.
  • This item is also available in magnesium.
