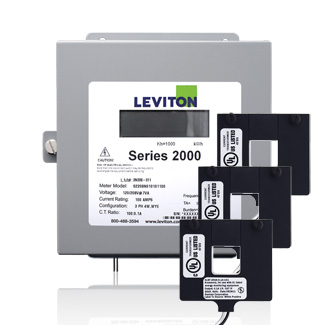

Product image for Leviton 2K480-2W 277/480 Volt Wye 200 Amp 3-Phase 4-Wire Kilowatt Hour Meter
Email

Leviton 2K480-2W 277/480 Volt Wye 200 Amp 3-Phase 4-Wire Kilowatt Hour Meter

Manufacturer: Leviton Mfg Co | Catalog # 2K480-2W | Cooper Electric Part # 857009
$1,244.96 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
Product Line: Series 2000, Enclosure Type: Indoor, Voltage: 277/480 Volt, 3PH, 4W, WYE kWh Meter, Amperage: 200 Amp, CTs Included: 3 Split CTs, Electric Meter: Yes, Title 24 Compliant, ASHRAE 90.1 Compliant

Technical Information

Accuracy
1 PCT
Amperage
200 Amp
Applications
Commercial
Cable Size
18-14 AWG
Communication Type
Pulse Output
Enclosure
JIC Steel
Enclosure Rating
1
Enclosure Type
Indoor (NEMA 1)
Mounting Type
Surface
Number of Phases
3 Phase
Primary Current
200 A
Primary Voltage
277 V
Standard
ANSI C12.1,UL And CUL Listed
Type
Three Phase Meter Kits

Manufacturer Information

Brand
Leviton

General Product Info

12-Digit UPC
078477597859
GTiN
00078477597859
Product UPC
07847759785

Dimensions

Height
7-1/2 Inch
Length
6.19 Inch
Width
3.25 in

Certifications and Compliance

Country of Origin
USA
Features
  • Measures kWh and demand (optional)
  • Conform to all applicable standards of ANSI C12.1
  • Equipped with an Isolated Pulse Output channel
  • Utilizes revenue grade 0.5% accuracy class 0.1A secondary solid core CTs that conform to all applicable ANSI requirements or 1.0% accuracy split-core CTs
  • Up to three sets of CTs per phase can be paralleled per meter without the need for a meter multiplier
  • Enclosure options include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor
  • Interfaces with numerous communication systems Hardwired Automatic Meter Reading (AMR) or wireless AMR
  • Large LCD display shows kWh and optional peak and instantaneous kW with demand reset
  • Load Indicator LED verifies meter functionality
  • Reverse Phase Indicator LED illuminates if the meter is improperly installed
  • CT Lead length maximum: 48
  • UL/cUL Listed Energy Usage Monitor pre CCN FTR7
  • Five year warranty
