Thomas & Betts F2048 1.22 Inch Length 4 AWG 25 mm² Wire Range Nylon Insulated Ferrule

Manufacturer: ABB | Thomas & Betts | Catalog # F2048 | Cooper Electric Part # 855981
$219.87/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

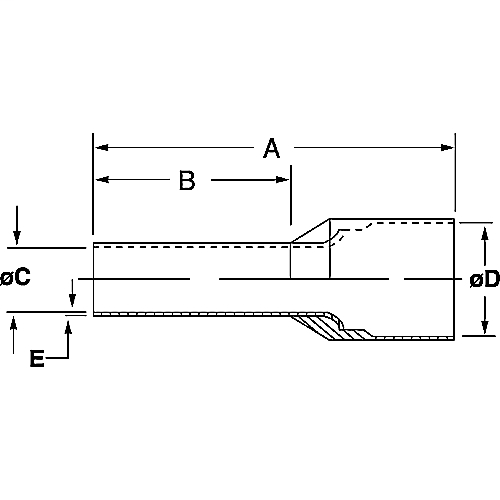

Polypropylene-Insulated Ferrule, Total Length 1.220 Inches/31mm, Pin Length .708 Inches/18mm, Pin Diameter .295 Inches/7.5mm, Base Diameter .433 Inches/11mm, Wire Range 4 AWG/25.00mm2, Color Yellow, Copper, Tin Plated

Technical Information

Contact Material
Copper
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E489056
Strip Length
0.708 in
Temperature Rating
105 degrees C
Type
Standard
Voltage
300 VAC
Wire Size
4 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210335520
Color
Yellow
Finish
Tin Plated
GTiN
05415022180688
Product UPC
78621033552

Dimensions

Inside Diameter
0.295 in
Outside Diameter
0.433 in
Overall Length
1.22 in
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
