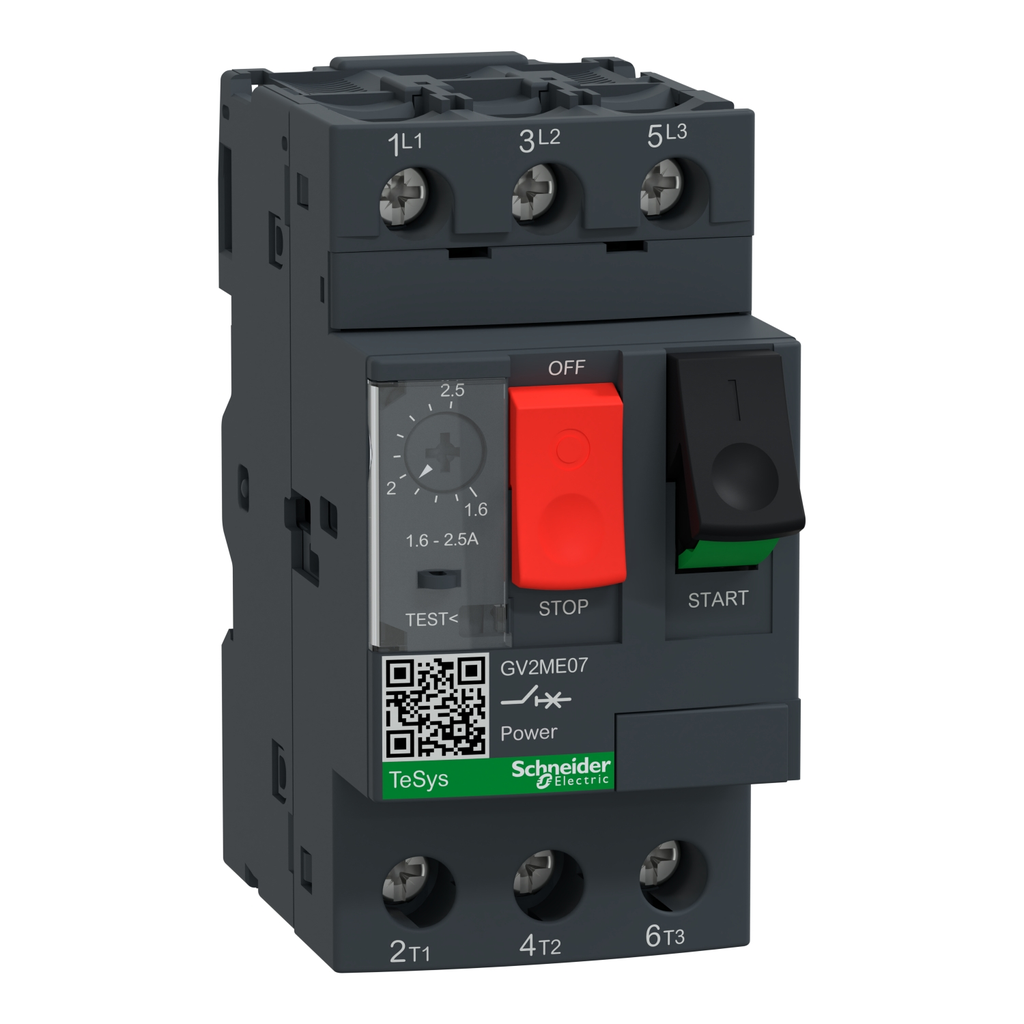

Square D GV2ME07 3-Pole 600 VAC 2.5 Amp Manual Starter

Manufacturer: Square-D / Schneider | Catalog # GV2ME07 | Cooper Electric Part # 85560
$179.93/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Tuesday 7:00am ET
9 available

For Delivery

Order by Tuesday 5:00pm ET for delivery Wednesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
The GV2 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV2ME controls motors with full load currents up to 32 A. The manual starter is three pole with horsepower ratings. The manual starter is operated by push buttons. The Class 10 ambient compensated thermal over current is adjustable from 1.6 ampere to 2.5 ampere. This device has screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Technical Information

Amperage
2.5 Amp
Applications
MOTOR
Control Type
Push-button
Enclosure
IP20 CONFORMING TO IEC 60529
Line Rated Current
2.5 A
Net Weight
0.26 kg
Number of Poles
3 Pole
Operating Cycles
25 cyc/h
Operating Temperature
-20...60 degrees C
Range
TeSys
Reset Type
AMBIENT COMPENSATED BIMETALLIC (CLASS 10) 1.6A TO 2.5A
Size
45 MM,78.5 MM,89 MM
Standard
EN/IEC 60947-2,EN/IEC 60947-4-1
Storage Temperature
-40-80 degrees C
TC Connection
SCREW CLAMP TERMINALS 2 1-6 MMA SOLID- SCREW CLAMP TERMINALS 2 1.5-6 MMA FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-4 MMA FLEXIBLE WITH CABLE END
Trip Point
33.5-33.5 A
Type
CIRCUIT BREAKER
Voltage
690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
GV2ME,TESYS,TESYS GV2

General Product Info

12-Digit UPC
389110343079
Color
Gray
GTiN
03389110343076
Product UPC
78590121194
Weight
0.26 kg

Dimensions

Depth
78.5 mm
Height
89 mm
Warranty Length
18 mth
Width
45 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
ATEX,BV,CCC,CSA,DNV-GL,EAC,LROS (Lloyds Register Of Shipping),RINA,UKCA,UL
Country of Origin
Thailand
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • GVAE11
  • GVAN11
  • GVAE1
  • GV2AF3
  • GVAE20
  • GVAD1010
  • GV1G09
  • GV2G445
  • GV2G245
  • GV2G345
  • GVAD0110
  • GVAN20
  • GV2G454
  • GVAD1001
  • GV2G554
  • GV2G254
  • GV2G354
  • GV2G05
  • GVAU385
  • GV2AF02
  • GV2AF4
  • GVAS225
  • GV1L3
  • GV1G02
  • GVAU225
  • GVAS025
  • LAD311
  • GVAD0101
  • GVAM11
  • LAD31
  • GVAX385
  • GVAU226
  • GVAX225
  • GVAS385
  • GVAU415
  • GK2AF01
  • GVAS226
  • GVAU116
  • GV2G472
  • GVAS026
  • GV2G272
  • GVAU025
  • GVAU207
  • GVAU115
  • GVAX116
  • GVAS415
  • GVAS207
  • GVAX115
  • GVAU505
  • GVAS116
Cross Sell Products
  • LC1D09BD
  • LC1D09P7
  • LC1D09B7
  • LC1D09F7
  • LC1D09E7
  • LC1D09FD
