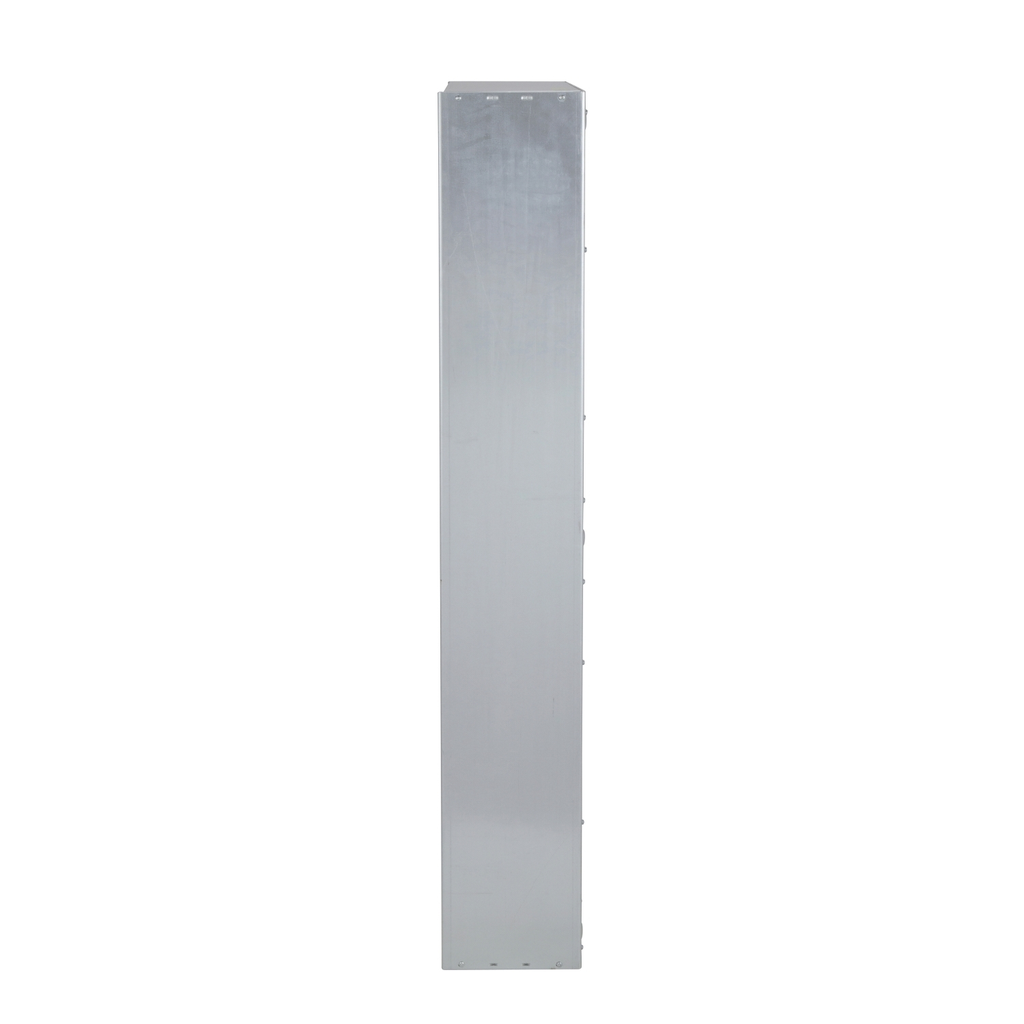

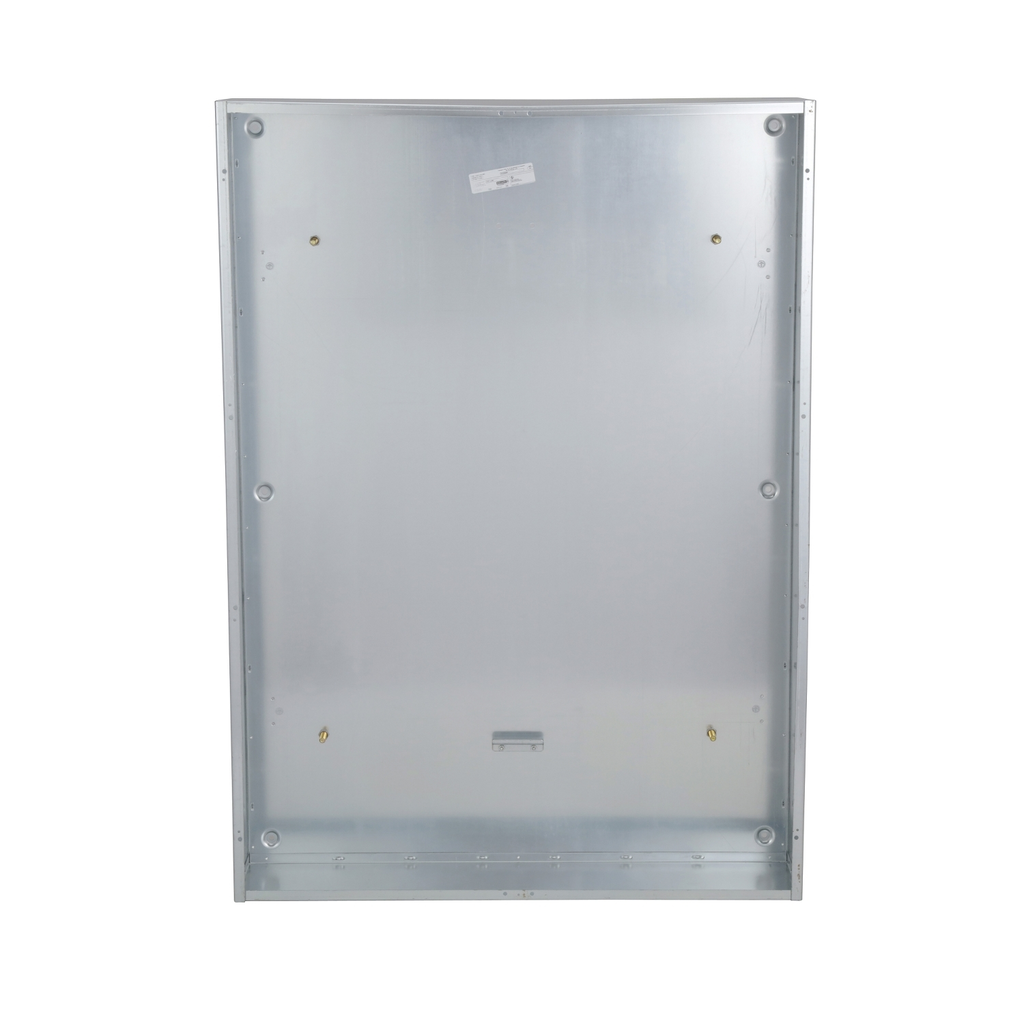

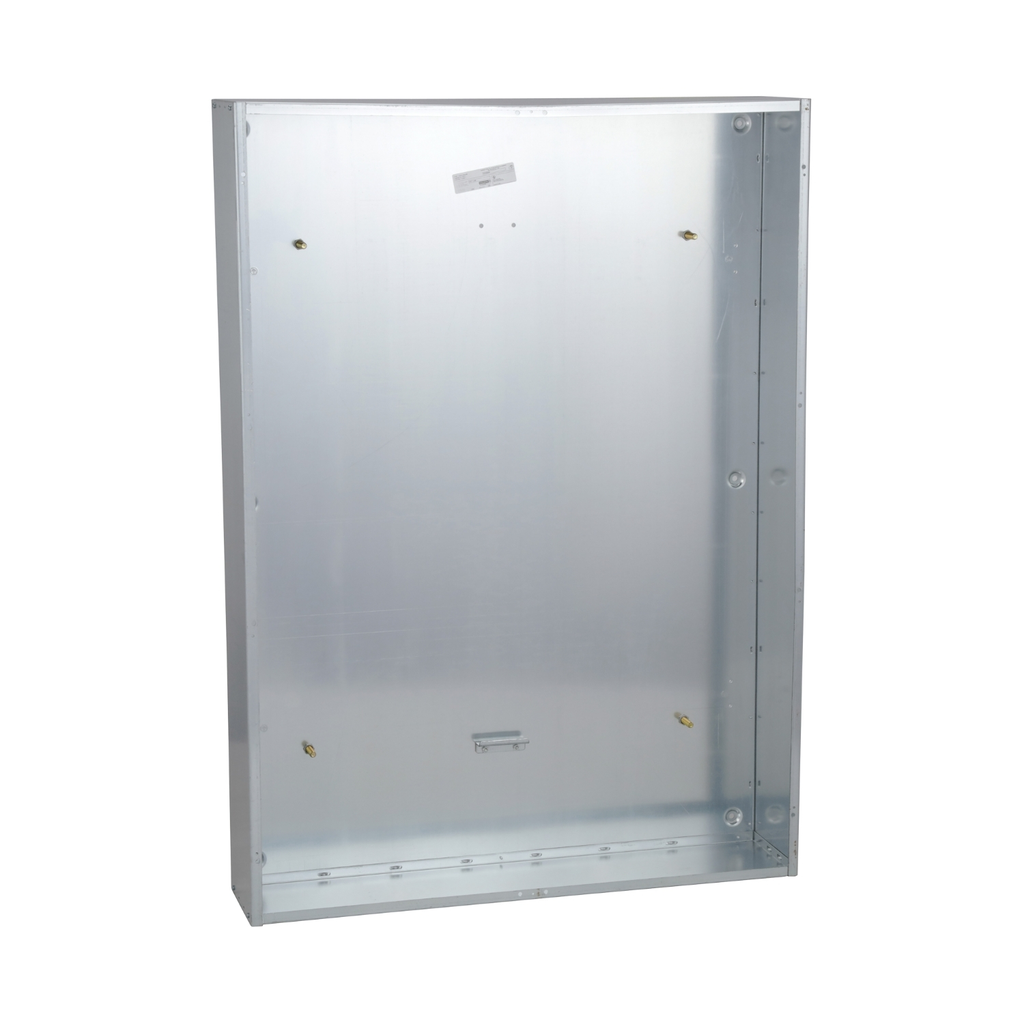

Square D HC4259DB 42 x 9.5 x 59 Inch NEMA 1 Panelboard Box

Manufacturer: Square-D / Schneider | Catalog # HC4259DB | Cooper Electric Part # 85459
$1,443.00/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
3 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400.1200A main lugs only and 100.1200A main circuit breakers. This HCP I-Line panelboard enclosure has a NEMA 1 degree of protection. Dimensions for this enclosure are 1499 mm (H),1067 mm (W),241 mm (D). This product comes with an 18 month warranty.

Technical Information

Amperage
1200 Amp
Applications
Panelboard
Enclosure
NEMA 1
Line Rated Current
1200 A
Material
GALVANIZED
Net Weight
54.7 kg
Operating Temperature
PER UL
Size
9.49 in
Standard
CSA,UL
Type
Enclosure

Manufacturer Information

Brand
Square D
Sub Brand
HCP

General Product Info

12-Digit UPC
785901790891
GTiN
00785901790891
Product UPC
78590179089
Weight
54.7 kg

Dimensions

Depth
9-1/2 Inch
Enclosure Depth
241 mm
Enclosure Height
1499 mm
Enclosure Wdth
1067 mm
Height
59 Inch
Warranty Length
18 mth
Width
1067 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
