3M 7100127163 3M™ Performance Plus™

Manufacturer: 3M | Catalog # 7100127163 | Cooper Electric Part # 85323
$0.31/ea
ea

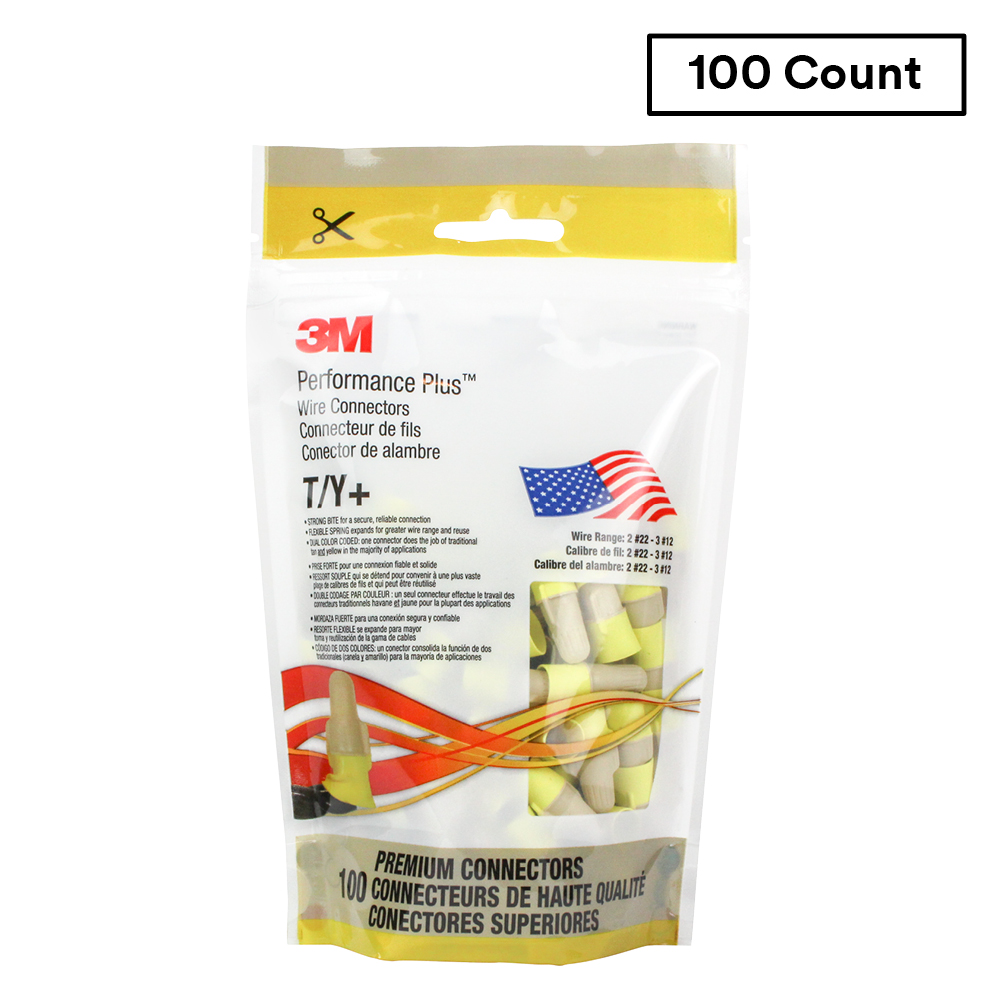

Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
200 available

For Pick Up

at Ocean Opens Friday 8:00am ET
2,200 available

For Delivery

Order by 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Product Brochure
3M™ Performance Plus™ Wire Connectors are designed with a uniquely flexible spring that has generous room for expansion and a strong bite for a secure connection. Because of their increased wire range, just three Performance Plus wire connectors handle the work of eight standard connectors. And the flexible skirt helps prevent copper exposure for enhanced safety.

Technical Information

Conductor Size
22-12 AWG
Connection Type
Twist-On
Contact Material
Spring Steel
Insulation Material
Polypropylene and Thermoplastic Elastomer
Material
Plastic
Max Operating Temperature
105.0 degrees C
Temperature Rating
221 degrees F
Type
Flame Retardant, Winged
Voltage
600 Volt

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
051128552186
Color
Tan, Yellow
GTiN
10051128552183
Product Type
Connector
Product UPC
05112855218

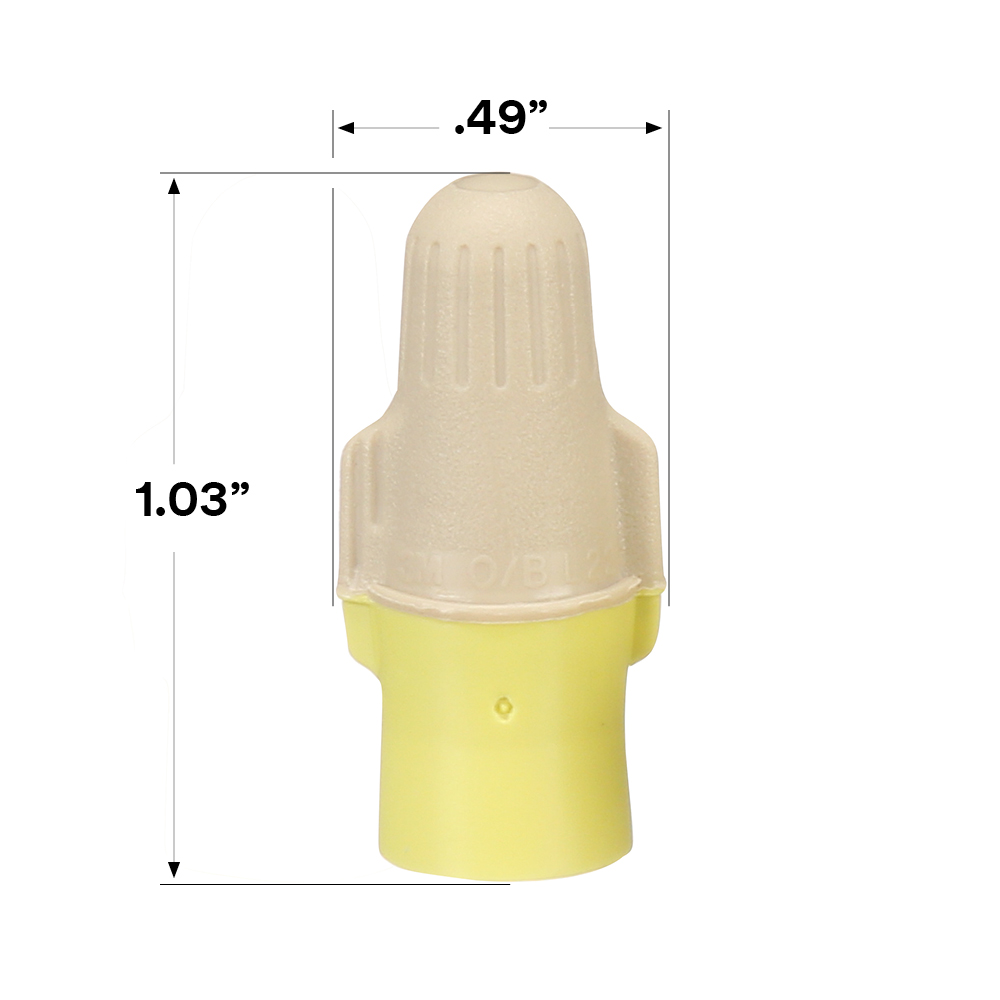

Dimensions

Diameter
0.49 Inch
Length
1.03 Inch

Certifications and Compliance

Country of Origin
USA
Features
  • STRONG BITING SPRING: for a secure, reliable and long-lasting connection in all your pigtail applications
  • UNIQUELY FLEXIBLE SPRING that has generous room for expansion into greater wire range and reuse
  • DUAL COLOR CODED TAN/YELLOW: one connector does the job of two traditional connectors in the majority of applications
  • UL LISTED for 600 volts on with copper wire only and 1000 volts maximum in signs and lighting fixtures (luminaries)
  • WIRE RANGE: 22-12 AWG for solid and/or stranded copper conductors
  • FLEXIBLE SKIRT helps prevent copper exposure for enhanced safety
