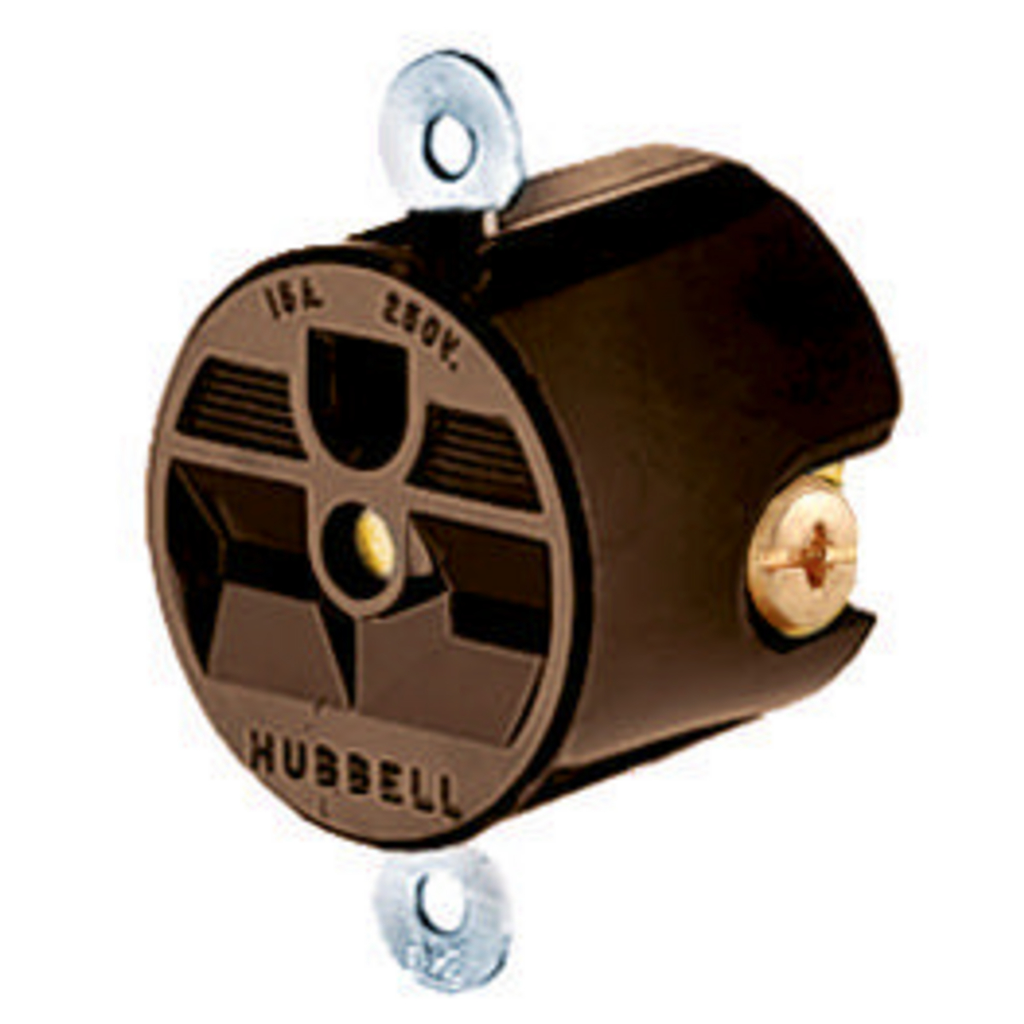

Product image for Hubbell HBL5658 15 Amp 250 Volt 2-Pole 3-Wire NEMA 6-15R Brown Single Straight Blade Receptacle
Image thumbnail 0
Image thumbnail 1
Email

Hubbell HBL5658 15 Amp 250 Volt 2-Pole 3-Wire NEMA 6-15R Brown Single Straight Blade Receptacle

Manufacturer: Hubbell Wiring Device | Catalog # HBL5658 | Cooper Electric Part # 85127
$38.08/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Straight Blade Devices, Receptacles, Panel Mount Single, Specification Grade, 2-Pole 3-Wire Grounding, 15A 250V, 6-15R, Brown, Single Pack

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty
Conductor Size
14-10 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
1.5 hp
Material
Thermoplastic
NEMA
6-15R
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA 22.2,Guide RTRT Fed Spec WC596G,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Panel Mount
TC Connection
Side Wired Only
Type
Panel Mount Single
Voltage
250 Volt
Wattage
3750 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585014388
Color
Brown
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585014388
Product Series
Extra Heavy Duty
Product UPC
78358501438
Weight
0.15 lb

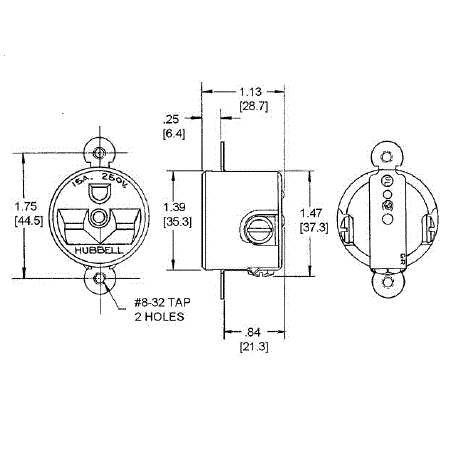

Dimensions

Height
1.47 Inch
Length
1-3/4 Inch
Width
1.13 in

Certifications and Compliance

Country of Origin
USA
Features
  • Slender/compact design
  • Triple wipe contacts
  • Panel mount
  • Panel Mount
