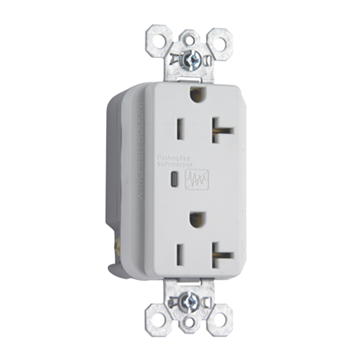

Product image for Pass & Seymour 5352-WSP 20A 125V 2-Pole 3-Wire NEMA 5-20R Surge Protective Duplex Receptacle - White
Email

Pass & Seymour 5352-WSP 20A 125V 2-Pole 3-Wire NEMA 5-20R Surge Protective Duplex Receptacle - White

Manufacturer: Pass & Seymour / Legrand | Catalog # 5352-WSP | Cooper Electric Part # 85057
$90.78/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Surge Protective Duplex Receptacle offers increased transient protection, reliability and protection notification (LED Indicator only). Back & Side Wire, 20amp 125volt, White.

Technical Information

Amperage
20 Amp
Grade
Specification
Type
Duplex
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007193985
Color
White
Product UPC
78500719398
UNSPSC
39121406

Dimensions

Depth
1.29 Inch
Height
3-3/4 Inch
Width
1.70 in

Certifications and Compliance

Country of Origin
China
Features
  • Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place.
  • LED Indication: Steady green = protected, Flashing re = not protected, OFF = no power to unit
  • Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation.
  • Impact-resistant thermoplastic exterior resists impacts and scrapes.
  • Triple-wipe, copper-alloy contacts for superior, more dependable connection.
  • External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors. External pressure plate feature allows two conductors to be terminated by a single screw.
  • Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection. Protection response time in less than one nanosecond.
  • For covering patents, see www.legrand.us/patents.
Eco-Benefit Information
  • RoHS Compliant
