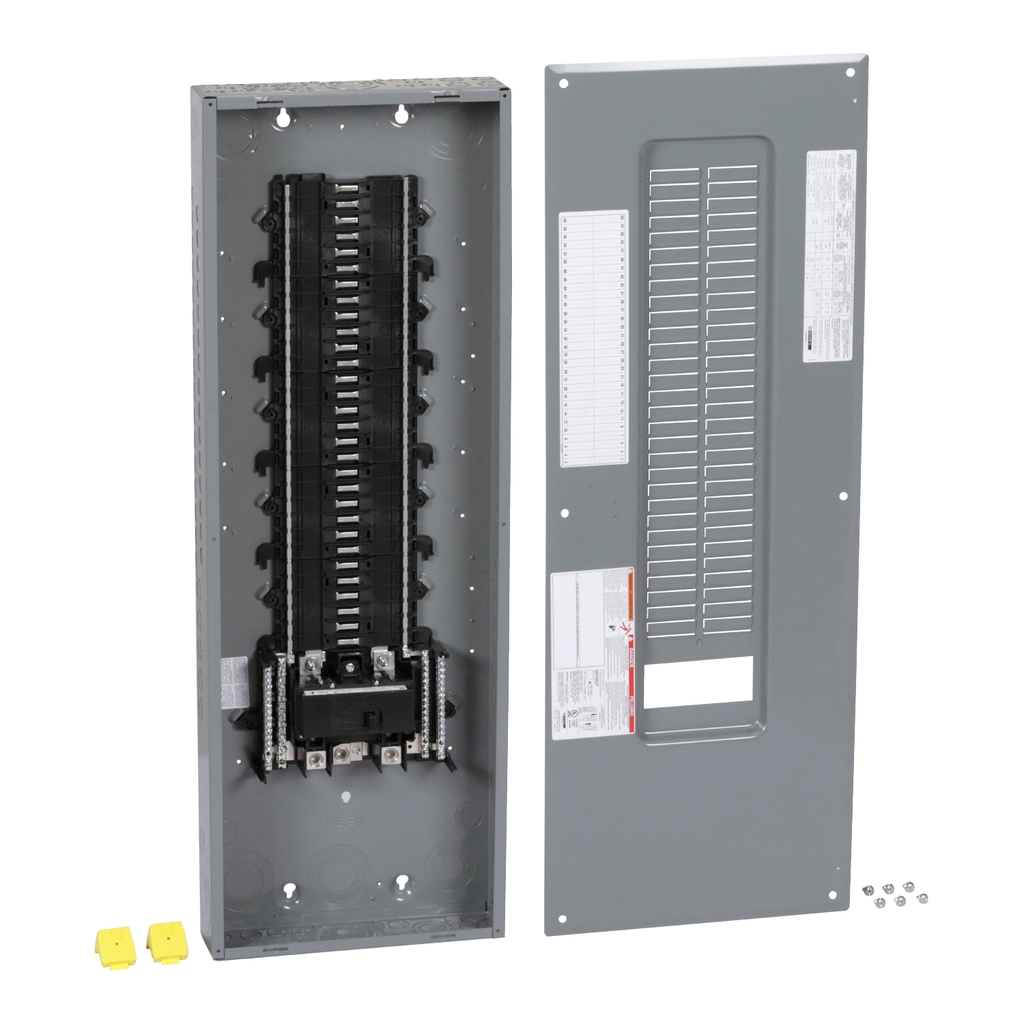

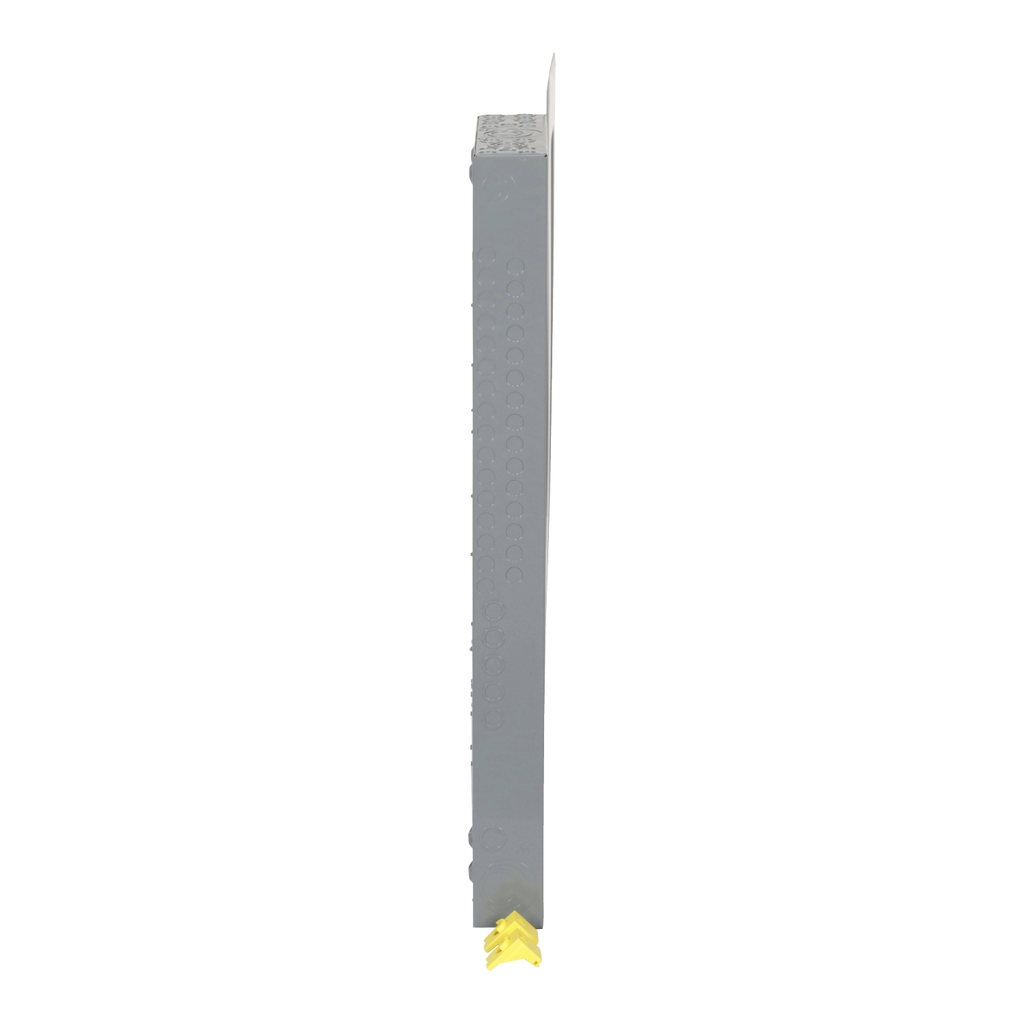

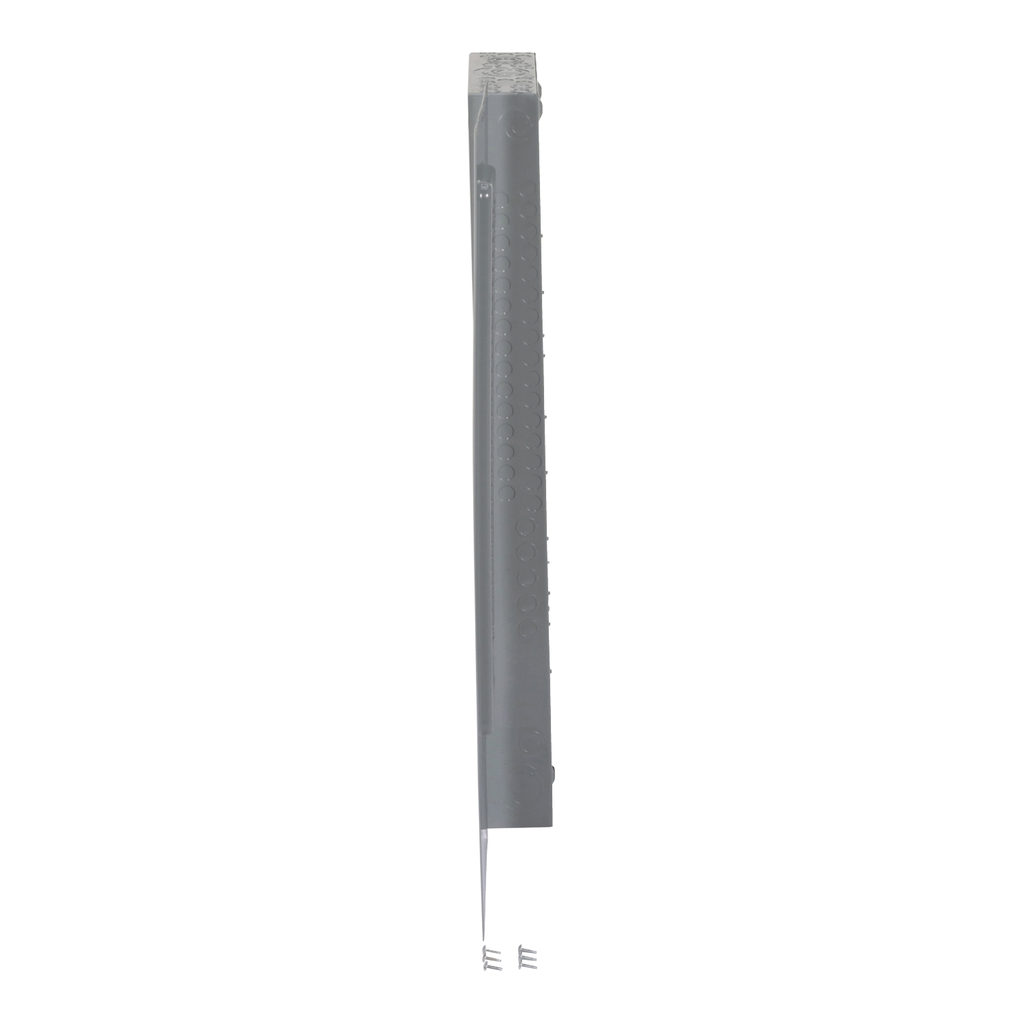

Square D QO160M200PC 200A 120/240V 1phase Convertible Main Breaker Load Center, Plug-On Neutral, 60 Spaces / 72 Circuits, NEMA-1, Gray

Manufacturer: Square-D / Schneider | Catalog # QO160M200PC | Cooper Electric Part # 850098

$695.62/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Friday 8:00am ET
6 available

For Delivery

Order by Friday 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories such as combination covers which are included here. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO Load Center contains a main breaker and is rated at 200 A and 1 phase. This system provides 60 spaces in a NEMA 1 enclosure and is plug on neutral ready. A combination cover is supplied with this load center.

Technical Information

Amperage
200 Amp
Cable Size
AWG 4...250 KCMIL ALUMINIUM/COPPER
Conductor Size
4 AWG-250 kcmil
Cover Type
Combination Flush/surface Cover
Current
200 Amp
Enclosure
1
Enclosure Material
Steel
Interrupt Rating
22 kAIC
Line Rated Current
200 A
Material
Tin Plated Copper: Busbar
NEMA Size
1
Number of Circuits
72
Number of Phases
1,3 Phase
Number of Spaces
60
Operating Temperature
23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
Short Circuit Current
22 kA
Short Circuit Current Ratng
22 kA
Surface Finish
Baked Enamel Gray
Type
Load Center
Voltage
120/240 Volt
Wire Size
AWG 4...250 kcmil aluminium/copper NULL

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901447528
Finish
Baked Enamel
GTiN
00785901447528
Product UPC
78590144752

Dimensions

Height
1096 mm
Warranty Length
18 mth
Width
362 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • PK23GTA
  • PK27GTA
  • QO115PCAFIC
  • QO2175SB
  • QOCDK60
  • QOFP
  • QO120PDFC
  • QO250PSPD
  • QOCGK2C
  • HEPD25
  • QO120PCAFIC
  • QOCMF60UC
  • HEPD50
  • QO115PDFC
  • QOCMF60UCW
  • HEPD80
  • HEPD25MKF
  • HEPD58MKF
  • S106
