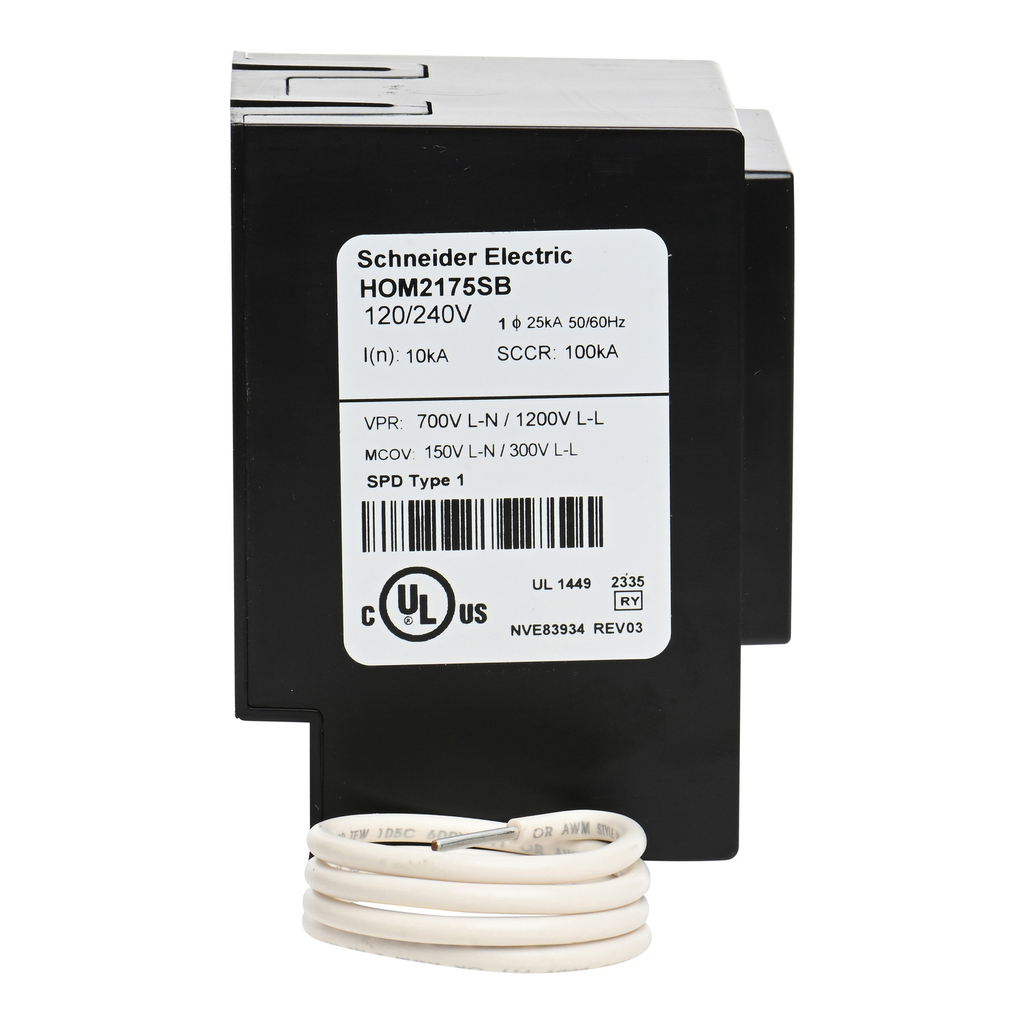

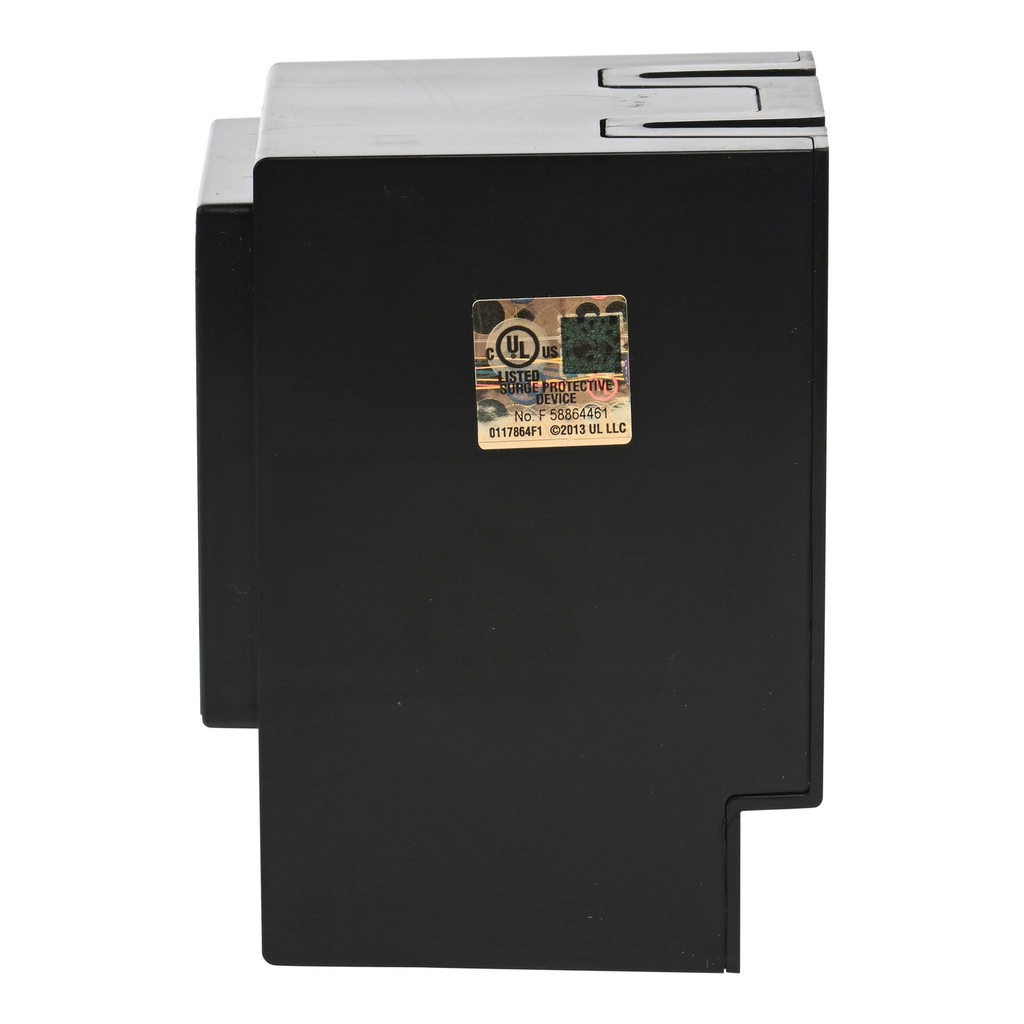

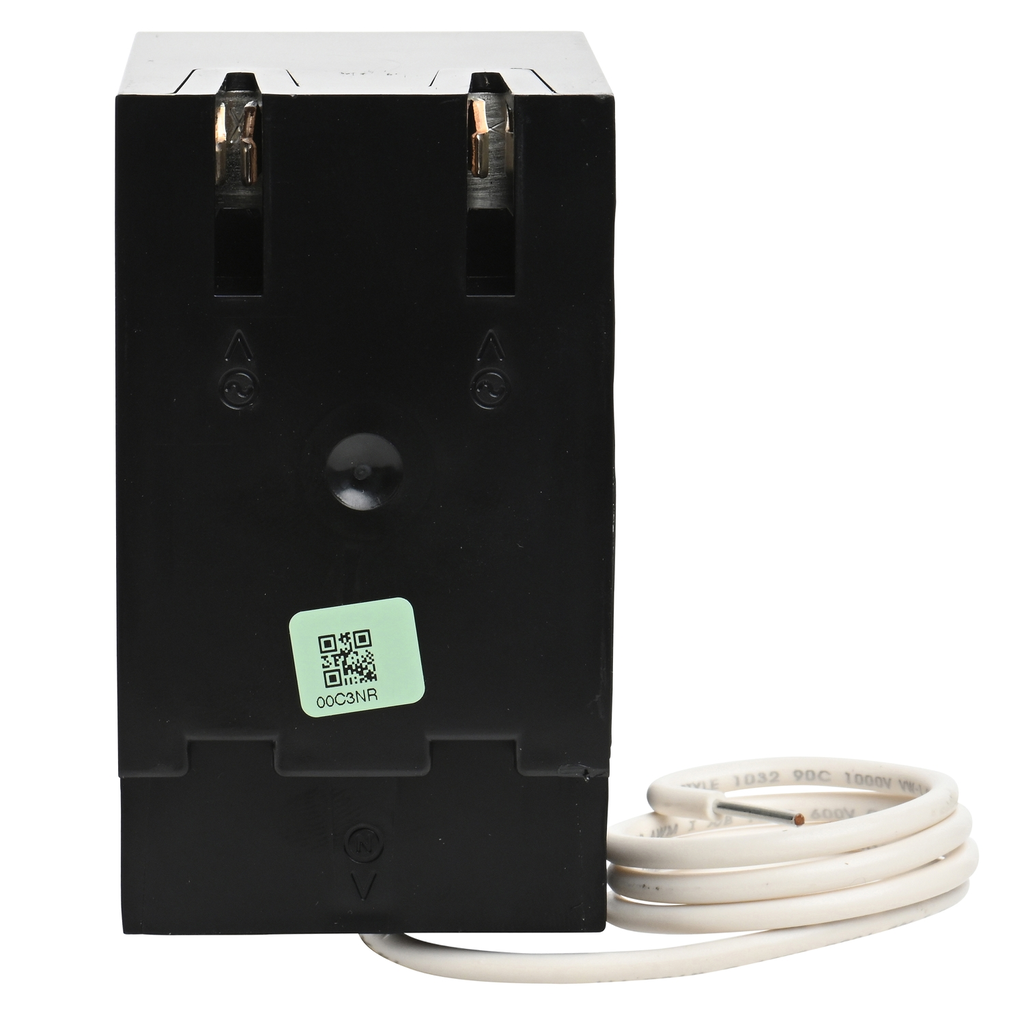

Square D HOM2175SB 150 Volt Load Center Secondary Surge Arrester

Manufacturer: Square-D / Schneider | Catalog # HOM2175SB | Cooper Electric Part # 84985
$199.29/ea
ea
Log in or register to view your price, purchase history, and more!
6 available

For Pick Up

at Ocean Opens Friday 8:00am ET
613 available

For Delivery

Order by Friday 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Surgebreaker is a secondary surge arrestor for Homeline load centers. It is designed to protect electrical service and major household appliances, excluding electronic devices. Designed for 3 wire 120/240 VAC single phase systems. Surgebreaker has a NEMA 1 indoor rating. This secondary surge protector is rated at 5 kA and has a SCCR of 22.5 kA. It has a plug on design and requires two pole positions. The LED indicator indicates operational status. The HOM Surgebreaker is UL Listed.

Technical Information

Applications
LOAD CENTERS AND CSEDS
Circuit Breaker Type
HOM
Current
5 kA
Enclosure
1
Interrupt Rating
22 kAIC
Line Rated Current
5 kA
NEMA Size
1
Number of Phases
1 Phase
Number of Spaces
2
Standard
UL 1449:ed. 4: Type II
Type
Surge protection device
Voltage
120/240 Volt

Manufacturer Information

Brand
Square D
Sub Brand
HOMELINE SURGE BREAKER

General Product Info

12-Digit UPC
785901210900
GTiN
00785901210900
Product UPC
78590121090

Dimensions

Depth
2.6 Inch
Height
3.7 Inch
Warranty Length
18 mth
Width
2 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • CHOM1224L125GC
  • CHOM1224M100GC
  • CHOM1224M60GC
  • CHOM1632L125GC
  • CHOM1632M100GC
  • CHOM2040M200GC
  • CHOM2448L125GC
  • CHOM2448M100GC
  • CHOM2448M125GC
  • CHOM3060L125GC
  • CHOM3060M100GC
  • CHOM3060M125GC
  • CHOM3060M200GC
  • CHOM4284M2100GC
  • CHOM60120M200GC
  • HOM1224L125PC
  • HOM1224L125PGC
  • HOM1224L125PGCVP
  • HOM1224L125PRB
  • HOM1224M100PC
  • HOM1224M100PRB
  • HOM1224M125PRBVP
  • HOM12L225PRB
  • HOM12M200PRB
  • HOM2040L125PC
  • HOM2040L125PGC
  • HOM2040L125PRB
  • HOM2040L225PGC
  • HOM2040L225PRB
  • HOM2040M100PC
  • HOM2040M100PC1AVP
  • HOM2040M100PQCVP
  • HOM2040M100PRB
  • HOM2040M200PC
  • HOM2040M200PCVP
  • HOM2040M200PRB
  • HOM2448L125PGC
  • HOM2448L125PQGC
  • HOM2448L125PRB
  • HOM2448M100PC
  • HOM2448M100PCVP
  • HOM2448M125PC
  • HOM2448M125PRB
  • HOM3060L125PC
  • HOM3060L125PQGC
  • HOM3060L225PC
  • HOM3060L225PGC
  • HOM3060L225PGCVP
  • HOM3060L225PQGC
  • HOM3060L225PRB
  • HOM3060M100PC
  • HOM3060M125PC
  • HOM3060M150PC
  • HOM3060M150PCVP
  • HOM3060M150PRB
  • HOM3060M200PC
  • HOM3060M200PC1AVP
  • HOM3060M200PCVP
  • HOM3060M200PQC
  • HOM3060M200PQCVP
  • HOM3060M200PRB
  • HOM3060M200PRBVP
  • HOM3060M200PTBP
  • HOM4080L225PC
  • HOM4080L225PGC
  • HOM4080L225PQGC
  • HOM4080L225PRB
  • HOM4080M200PC
  • HOM4080M200PC1AVP
  • HOM4080M200PCAFVP
  • HOM4080M200PCVP
  • HOM4080M200PQC
  • HOM4080M200PQCVP
  • HOM4080M200PRB
  • HOM4284L225PC
  • HOM4284L225PGC
  • HOM4284L225PQGC
  • HOM4284L225PRB
  • HOM4284M200PC
  • HOM4284M225PC
  • HOM60120L225PC
  • HOM60120M200PC
  • HOM612L100RB
  • HOM612L100S
  • HOM816L125PC
  • HOM816L125PGC
  • HOM816L125PRB
  • HOM816M100PC
  • HOM816M100PRB
  • HOM816M150PFTRB
  • HOM816M200PFTRB
  • QO124L125PGCVP
  • QO124M100PCVP
  • QO132M100PCVP
  • QO142M200PCVP
  • RC12L200C
  • RC1624M100S
  • RC2040M150CH
  • RC2040M200C
  • RC2040M200CGP
  • RC2040M200CH
  • RC2040M200S
  • RC2040M200SHS
  • RC3040M150SL
  • RC3042M200PS
  • RC816D200CH
  • RC816D400SL
  • RC816F100CH
  • RC816F125CH
  • RC816F150C
  • RC816F150CH
  • RC816F200C
  • RC816F200CH
  • RC816F200S
  • RU3040D400CL
  • RU3040D400CLX
  • SC1624M100F
  • SC1624M100S
  • SC1624M125F
  • SC1624M125S
  • SC2040M125PF
  • SC2040M200PF
  • SC2040M200PS
  • SC3042M200PF
  • SC3042M200PS
  • SC42M200PS
  • SC816D150C
  • SC816D200C
  • SC816F200PF
  • SC816F200PS
  • SC8L125S
  • SO1020M100S
  • SO1020VP
  • SO2040M200S
  • SO2040VP
  • SU3040D300FB
  • SU3040D400CB
  • SU3040D400CN
  • SU3040D400FB
  • SU3040D400FN
  • HOM24L70RB
  • HOM48L125GRB
  • HOM24L70RBCP
  • HOM24L70S
  • HOM612L100F
  • HOM48L125GC
  • HOM24L70F
  • HOM24L70SCP
  • HOM612L100SCP
  • HOM612L100FCP
  • HOM24L70FCP
