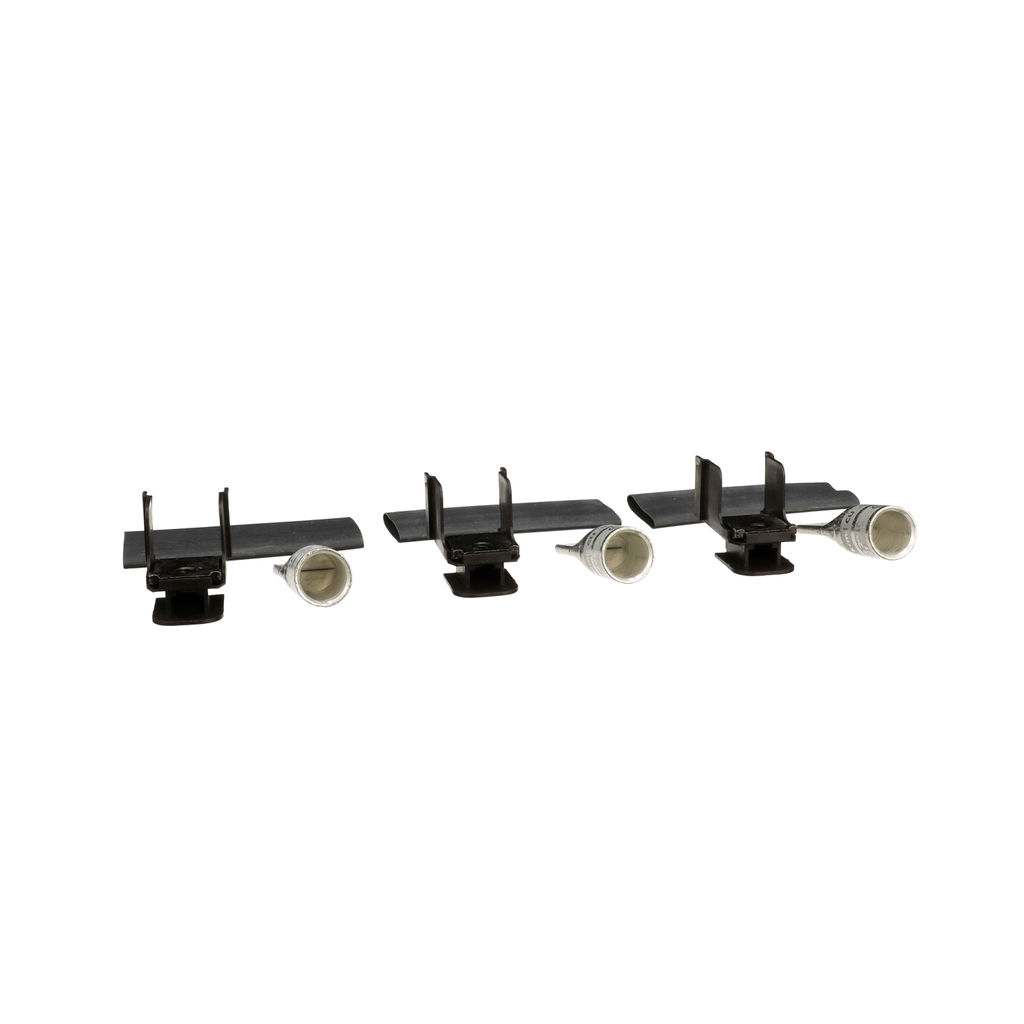

Square D CYA250J3 Copper Conductor Circuit Breaker Compression Lug Kit

Manufacturer: Square-D / Schneider | Catalog # CYA250J3 | Cooper Electric Part # 849818
$194.00 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Catalog Page Product Spec Sheet Product Brochure
This lug kit is for PowerPacT J circuit breakers. This PowerPacT J, compression lug is a connection accessory with a rated current of 250A and is made of copper. The lugs accept 2/0 AWG to 300kcmil copper conductors. The lugs comply with UL and CSA standards. This product complies with UL and CSA standards.

Technical Information

Amperage
250 Amp
Applications
J-frame
Circuit Breaker Type
J-Frame
Line Rated Current
250-250 A
Material
Copper
TC Connection
AWG 2/0...300 kcmil copper
Type
mechanical lug

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901539575
GTiN
00785901539575
Product UPC
78590153957

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Certifications
CSA,UL
Country of Origin
USA
Features
  • PowerPacT J copper mechanical lugs kit up to 250A, 3 pieces per kit
  • Compression lugs require the long lug cover pack PDC3JD2
  • Compression lugs are for use with unit mount PowerPact J breaker for line, load sides or for load side of I-line breaker
  • Terminal data for this lugs is 2/0 AWG300 kcmil (70185 mm2) copper
  • Each kit contains required insulators and all mounting hardware
  • All lugs are UL Listed and CSA certified for their proper application
  • Red and black handle indicates the ON (red) or OFF (black) condition of the switch
  • UL listed
  • Seismically Qualified to the 2010 ASCE 7, 2012 IBC, 2013 CBC.
Prop 65
  • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
