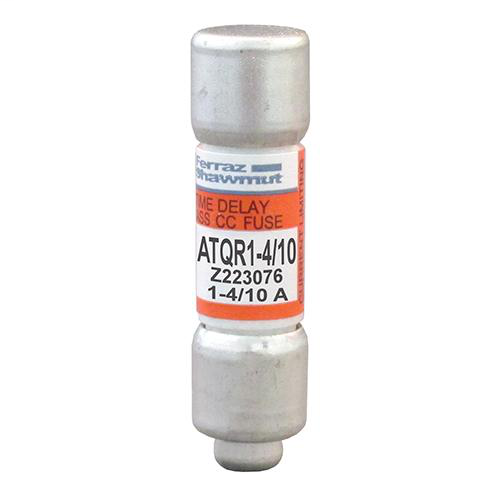

Product image for Mersen ATQR1-4/10 600V 1-4/10A CC T
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Mersen ATQR1-4/10 600V 1-4/10A CC T

Manufacturer: Mersen | Catalog # ATQR1-4/10 | Cooper Electric Part # 84899
$52.31/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
16 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet
ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems

Technical Information

Amperage
1.4 Amp
Applications
For Control Transformers, Solenoids, Inductive Loads, Lighting, Heaters, General Purpose Loads
Contact Material
Tin Plated Copper
Frequency
50 Hz
Fuse Class
Class CC
Insulation Material
GMG
Interrupt Rating
100, 200 kAIC
Mounting Type
Clip
Rated Voltage AC
600 V
Rated Voltage DC
300 V
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Time-Delay
Voltage
600 VAC, 300 VDC

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.
Sub Brand
Amp-Trap® 2000

General Product Info

12-Digit UPC
782001906405
Class
CC
Construction
Fiberglass
GTiN
30782001906406
Product UPC
78200190640
Weight
0.02 lb

Dimensions

Diameter
0.41 Inch
Length
1-1/2 Inch
Approvals & Standards
  • UL listed to standard 248-4 File E2137
  • DC listed to UL standard 248
  • CSA certified to standard C22.2 No. 248.4
Features
  • Time-delay for control transformer inrush loads without nuisance opening
  • Highly current-limiting for low peak let-thru current
  • Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
  • High visibility orange label ensures instant brand recognition, and simplifies replacement
  • Metal-embossed date and catalog number for traceability and lasting identification
  • Fiberglass body provides dimensional stability in harsh industrial settings
  • High-grade silica filler ensures fast arc quenching and high current limitation
Applications
  • Control transformers
  • Solenoids
  • Inductive loads
  • Lighting, heating & general-purpose loads
