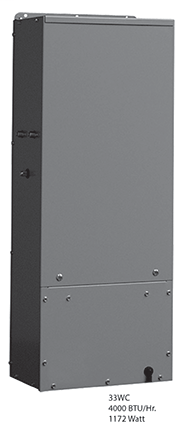

Product image for Hoffman 330416GW010 WATER COOLED AIR COND
Email

Hoffman 330416GW010 WATER COOLED AIR COND

Manufacturer: Hoffman | Catalog # 330416GW010 | Cooper Electric Part # 848098
$4,932.55/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
WATER COOLED AIR COND, Bulletin MCL (Air Conditioners - 33-0416), Size/Dims: 2.00x2.00x2.00, Material: Steel, Finish: Gray

Technical Information

Amperage
5.8-6 Amp
Applications
For Industrial Automation, Package Handling Equipment, Food and Beverage, Wastewater Treatment, Security and Defense Systems
Control Type
Mechanical Thermostat
Cord Type
6 ft Cord with NEMA 5-15 Plug
Current
5.8 Amp
Enclosure Rating
12
Enclosure Type
NEMA 12
Material
Metal
Max Temperature
125 degrees F
Min Temperature
50 degrees F
Mounting Type
Side
Power Rating
667 - 690 W
Size
2.00x2.00x2.00 in
Temperature Rating
10 - 52 degrees C
Voltage
115 Volt
Wattage
1172 Watt

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510232535
Color
RAL 7035 Light Gray/Semi-Textured Powder Coated
Finish
Gray
GTiN
00783510232535
Product UPC
78351023253
Weight
86 lb

Dimensions

Depth
8-3/4 Inch
Height
34.13 Inch
Width
12.38 in
Features
  • Heat is removed from the system by means of the water cooling the refrigerant; no external air movers or condenser coils to get clogged
  • Robust reciprocating compressor
  • Mounting hardware, gaskets and user manual furnished with the unit
  • Easy-mount flanges for simple installation
  • UL Listed or Recognized to save customers time and money with agency approvals
  • Maximum water usage of 2 GPM at 90 F water intake temperature
  • Operating temperature range from 50 F/10 C to 125 F/52 C
  • R134a earth-friendly refrigerant
  • Models for 115 VAC, 230 VAC and 460 V 1-phase power input
  • Every unit functionally tested before shipping
  • Surge Suppressor
  • Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments
  • Attractive industrial design with minimal use of visible fasteners
  • Electro-Mechanical Thermostat
  • Standard Indoor Air Conditioner models also include:
  • Reliable mechanical thermostat located behind the front panel of the unit
Applications
  • Package handling equipment
  • Security and defense systems
  • Food and beverage
  • And more
  • Wastewater treatment
  • Industrial automation
  • Pulp and paper
Options
  • Stainless Steel Package*
  • Thermostat Malfunction Package
  • Special Voltage Package
  • Harsh Environment Package*
  • Active Condensate Evaporator Package
Finish
  • RAL 7042 gray, semi-gloss powder-coat paint standard
  • Stainless steel Type 304 or 316 finishes available on Type 4X models
  • Other colors and textures available
Notes
  • * Consult the factory for availability and catalog number.
