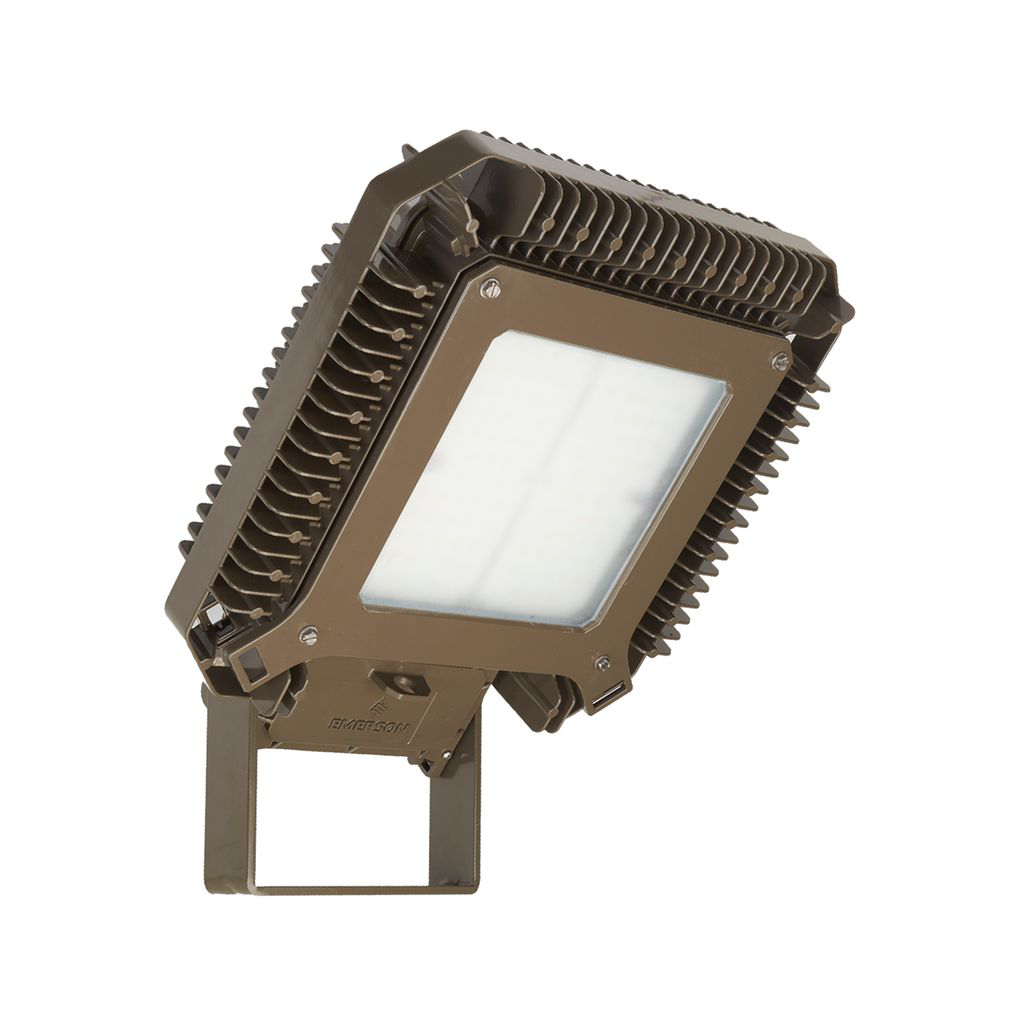

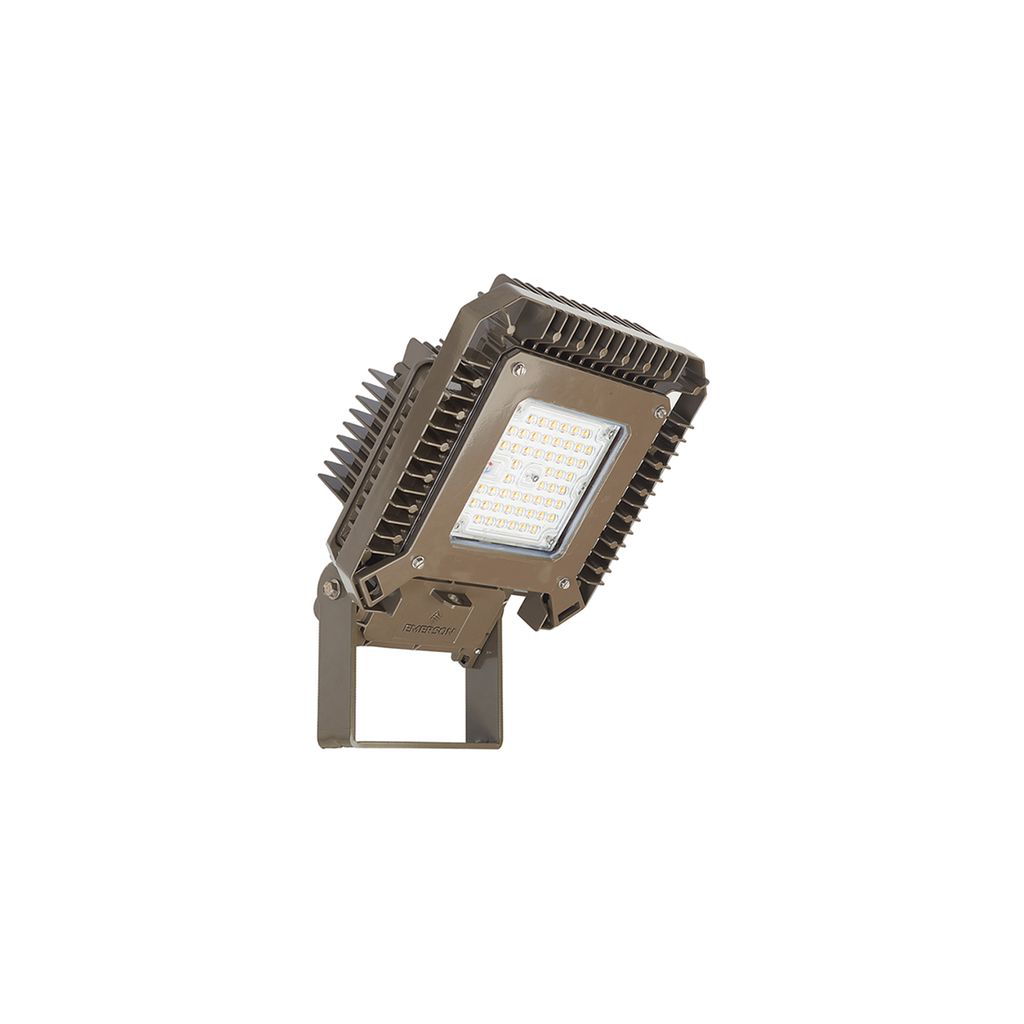

Product image for Appleton AMLED87YBU1 750W BU1 50/60Hz LE
Image thumbnail 0
Image thumbnail 1

Email

Appleton AMLED87YBU1 750W BU1 50/60Hz LE

Manufacturer: Appleton Electric | Catalog # AMLED87YBU1 | Cooper Electric Part # 847525

$4,251.44/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
The Appleton Areamaster Generation 2 LED luminaires by Emerson deliver best-in-class LED performance. The redesigned Areamaster provides greater versatility, with models from 9,000 to 19,500 lumens and from 24,000 to 38,000 lumens for the High Lumen version, and a choice of beam patterns to meet your diverse floodlighting needs. Featuring new optic designs for superior uniformity and coverage, the Areamaster Generation 2 LED luminaires provide HID equivalent lighting that saves over 75 percent in energy costs and practically eliminates maintenance burdens. They are certified for NEC/CEC Class I, Division 2 and Class II hazardous locations, marine and wet locations, as well as ATEX/IECEx Zones 2, 21 and 22.

Technical Information

Ambient Temperature
-40 degrees C
Amperage
700m-1.6 Amp
Applications
For Pulp And Paper Mills, Processing Plants, Chemical Plants, Oil Refineries, Foundries, Food Processing Plants, Storage Areas, Waste And Sewage Treatment, Parking Garages, Other Areas Where Water, Dirt And Rough Usage Are A Problem
Ballast Type
Electronic Transformer
Enclosure Type
Class I, IP66
Lamp Type
LED
Lamp Wattage
174/169 WTT Input Power (Nominal)
Material
Aluminum
Mounting Type
Surface
Reflector Finish
High-Gloss
Standard
Class E Requirements For Channel,Component Level Performance Per TIA,EIA-568-B.2-1 And ISO,Extreme 6+ System Components Meet Or Exceed The Category 6,IEC 11801-B. Components Certified Per UL And CUL Listed, NOM And ACA Requirements
Type
Floodlight
Voltage
120-277 VAC

Manufacturer Information

Brand
Appleton
Sub Brand
Areamaster

General Product Info

12-Digit UPC
781381977050
Color
Bronze
Finish
Bronze Polyester
Fixture Type
Yoke Mount
GTiN
00781381977050
Housing Finish
Architectural Bronze Polyester
Housing Material
Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Product UPC
78138197705

Dimensions

Height
18.9 Inch
Length
15.3 Inch
Width
3.7 in
Features
  • Three lumen outputs provide up to 19,500 lumens with a choice of optics for optimal light distribution
  • Two 3/4\"\" NPT entries provided
